| Price | RM480.00 RM550.00 RM |
| Product SKU | DVR-CT-DS-7208HUHI-K2 |
| Brand | Contronetix |
| Size (L x W x H) | 47 cm x 42 cm x 16 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- Self-Adaptive HDTVI/HDCVI/AHD/CVBS Signal Input
- Supports H.265+/H.265/H.264+/H.264 IP Cameras
- Simultaneous HDMI/VGA Output
- Up To 6TB Capacity For Each Disk
Specification
| Video/Audio Input | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input | 8-CH, BNC Interface (1.0 Vp-p, 75Ω), Supporting Coaxitron Connection |
| HDTVI Input | 8MP, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD Input | 5MP, 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| IP Video Input | 8-CH (Up To 16-CH), Up To 8MP Resolution, Supports H.265+/H.265/H.264+/H.264 IP Cameras |
| Audio Compression | G.711u |
| Audio Input | 1-CH, RCA (2.0 Vp-p, 1KΩ) |
| Video/Audio Output | |
| HDMI/VGA Output | VGA : 1-CH, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI : 1-CH, 4K (3840x2160)/30Hz, 2K(2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Encoding Resolution | 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream : 8MP@8fps/5MP@12fps/4MP@15fps/3MP@18fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-Stream : WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32Kbps To 10Mbps |
| Audio Output | 1-CH, RCA (Linear, 1KΩ) |
| Audio Bit Rate | 64Kbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 8-CH |
| Network Management | |
| Incoming Bandwidth | 64Mbps |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity | Up To 6TB Capacity For Each Disk |
| External Interface | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1KΩ) (Using The 1st Audio Input) |
| Network Interface | 1, RJ45 10M/100M/1000M Self-Adaptive Ethernet Interface |
| USB Interface | 2 x USB 2.0 |
| General | |
| Power Supply | 12 VDC |
| Consumption (Without HDD) | ≤ 15W |
| Working Temperature | -10°C To +55°C (+14°F To +131°F) |
| Working Humidity | 10% To 90% |
| Dimensions | 260 x 222 x 45mm (10.2 x 8.7 x 1.8 Inch) (W x D x H) |
| Weight (Without HDD) | ≤ 2kg (4.4lb) |
What In The Box

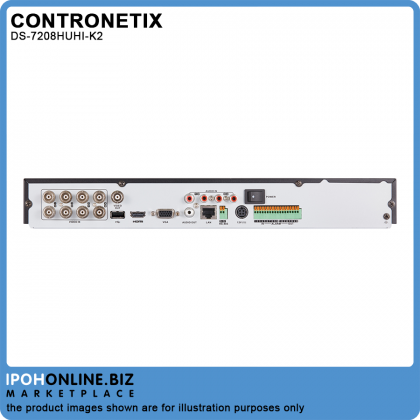

- 1 x CONTRONETIX DS-7208HUHI-K2 8 Channel 5MP HDTVI HDCVI AHD CVBS Turbo HD DVR
- 1 x Power Adapter
- 1 x USB Mouse
- 1 x Screw Set
- 1 x Quick Start Guide
Warranty
1 Month Limited Warranty
Local Manufacturer Warranty
