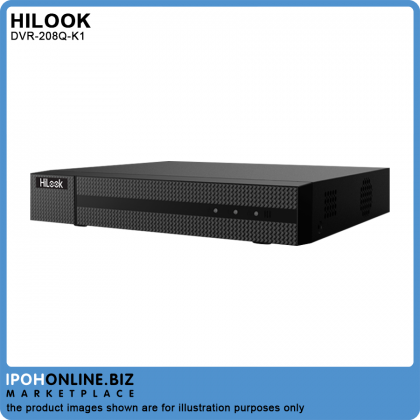

Hikvision HiLook DVR-208Q-K1 8 Channel 4MP HDTVI HDCVI AHD CVBS Turbo HD Hybrid CCTV DVR - DS-7208HQHI-K1
| Price | RM350.00 RM399.00 RM |
| Product SKU | DVR-HILOOK-208Q-K1 |
| Brand | Hikvision |
| Size (L x W x H) | 43 cm x 11 cm x 31 cm |
| Availability | Out Of Stock |
Description
Highlight
- Self-Adaptive HDTVI/HDCVI/AHD/CVBS Signal Input
- Long Distance Transmission Over UTP And Coaxial Cable : Max. 800m For 1080p And 1200m For 720p HDTVI Signal
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding For The Main Stream And H.265/H.264 For The Sub-Stream Of Analog Cameras
- Connectable To H.265+/H.265/H.264+/H.264 IP Cameras
- H.265+ Can Be Enabled To Improve Encoding Efficiency And Reduce Data Storage Costs
- Up To 4MP Lite Resolution For Recording
- Simultaneous HDMI/VGA Output
- 1 SATA Interface (Up To 10TB Capacity Per HDD)
- 8-CH Synchronous Playback
- Smart Search For Efficient Playback
- Supports The 3rd Party Cloud Storage (Dropbox/Google Drive/Microsoft OneDrive)
Specification
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite Mode Not Enabled : 4MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite Mode Enabled : 1080p Lite/720p/VGA/WD1/4CIF/CIF |
| Frame Rate | Main Stream : When 1080p Lite Mode Not Enabled : For 4MP Stream Access : 4MP Lite@15fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3MP Stream Access : 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p Stream Access : 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p Stream Access : 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite Mode Enabled : For 4MP Stream Access : 4MP Lite@15fps; 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3MP Stream Access : 3MP/1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15fps For 1080p Stream Access : 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p Stream Access : 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-Stream : WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| Video Bitrate | 32Kbps To 6Mbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64Kbps |
| Video And Audio | |
| IP Video Input | 4-CH (Up To 12-CH) Up To 6MP Resolution Support H.265+/H.265/H.264+/H.264 IP Cameras |
| Analog Video Input | 8-CH BNC Interface (1.0Vp-p, 75Ω), Supporting Coaxitron Connection |
| HDTVI Input | 4MP, 3MP, 1080p25, 1080p30, 720p25, 720p30 *The 3MP Signal Input Is Only Available For Channel 1/2 |
| AHD Input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| VGA Output | 1-CH, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1-CH, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Input | 1-CH, RCA (2.0Vp-p, 1KΩ) 8-CH Via Coaxial Cable |
| Audio Output | 1-CH, RCA (Linear, 1KΩ) |
| Two-Way Audio | 1-CH, RCA (2.0Vp-p, 1KΩ) (Using Audio Input) |
| Synchronous Playback | 8-CH |
| Network | |
| Remote Connection | 64 |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100Mbps Self-Adaptive Ethernet Interface |
| Auxiliary Interface | |
| SATA | 1 SATA Interface |
| Capacity | Up To 10TB Capacity For Each Disk |
| USB Interface | Real Panel : 2xUSB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.33A |
| Consumption | ≤ 12W (Without HDD) |
| Working Temperature | -10°C To +55°C |
| Working Humidity | 10% To 90% |
| Dimension | 260x222x45mm (WxDxH) |
What In The Box
- 1 x Hikvision HiLook DVR-208Q-K1 8 Channel 4MP HDTVI HDCVI AHD CVBS Turbo HD Hybrid CCTV DVR - DS-7208HQHI-K1
- 1 x Adapter Charger
- 1 x USB Mouse
- 1 x Quick Start Guide
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13, Industri Menglembu Jaya, 31450 Menglembu.
Tel : 05-2822 919
Fax : 05-2811 909
H/Phone : 012-5088891 / 016-5534968
