RM720.00
RM900.00
RM

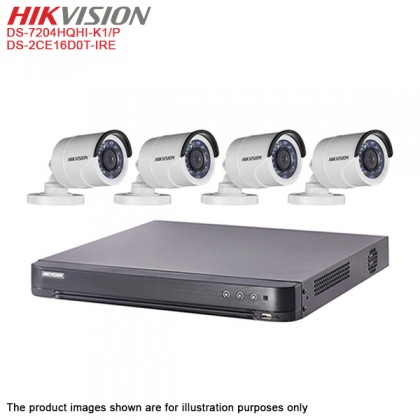

Hikvision DS-7204HQHI-K1/P 4 Channel Turbo HD PoC CCTV DVR + Hikvision DS-2CE16D0T-IRE 2MP PoC IR Bullet CCTV Camera x 4
| Price | RM720.00 RM900.00 RM |
| Product SKU | DVR-HIK-DS-7204HQHI-K1/P-2MP-BUL-SET |
| Brand | Hikvision |
| Size (L x W x H) | 60 cm x 40 cm x 28 cm |
| Availability | Out Of Stock |
Description
Highlight
- Support H.265 Pro+/H.265 Pro/H.265 Video Compression
- Support HDTVI/AHD/CVI/CVBS/IP Video Input
- Max. 6/12/24 IP Cameras Input (Up To 6MP)
- Max. 800m For 1080p And 1200m For 720p HDTVI Signal Transmission
- Up To 10TB Capacity Per HDD
- Provide Power Supply To PoC Cameras Over Coaxial Cable

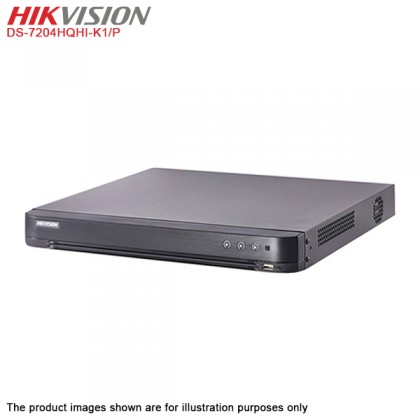

Hikvision DS-7204HQHI-K1/P DVR
Specification
| Video/Audio Input | |
| Audio Input | 4-CH |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog And HD-TVI Video Input | 4-CH, BNC Interface (1.0Vp-p, 75Ω) Connection |
| Supported Camera Types | Support HDTVI Input : 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note : The 3MP Signal Input Is Only Available For Channel 1 Of DS-7204HQHI-K1/P Support AHD Input : 4MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI Input : 1080p25, 1080p30, 720p25, 720p30 Support CVBS Input Supports Hikvision PoC Camera Note : Do Not Unplug Or Plug The PoC Camera If It Is Powered By The External Power Supply |
| IP Video Input | Up To 6-CH |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| IP Video Input Resolution | Up To 6MP Resolution |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0Vp-p, 1kΩ) |
| Two-Way Audio | 1-CH, RCA (2.0Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input) |
| Video/Audio Output | |
| CVBS Output | 1-CH, BNC (1.0Vp-p, 75Ω), Resolution : PAL : 704x576, NTSC : 704x480 |
| HDMI/VGA Output | 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | When 1080p Lite Mode Not Enabled 4MP Lite/3MP/1080p/1080p Lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite Mode Enabled 4MP Lite/3MP/1080p Lite/720p/720p Lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream When 1080p Lite Mode Not Enabled For 4MP Stream Access : 4MP Lite@15fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3MP Stream Access : 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p Stream Access : 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p Stream Access : 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite Mode Enabled 4MP Lite/3MP@15fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-Stream WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video/Video&Audio |
| Two-Way Audio | 1-CH, RCA (2.0Vp-p, 1kΩ) (Using The Audio Input) |
| Audio Output | 1-CH RCA (Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Synchronous Playback | 4-CH |
| Network Management | |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interfaces |
| Capacity | Up To 10TB Capacity For Each Disk |
| External Interface | |
| Network Interface | 1; 10M / 100M Self-Adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; Standard RS-485 Serial Interface, Half-Duplex |
| General | |
| Consumption | ≤ 40W(Without Hard Disks) |
| Working Temperature | -10ºC To +55ºC (14ºF To 131ºF) |
| Working Humidity | 10% To 90% |
| Dimensions | 315x242x45 MM (12.4x9.5x1.8 Inch) |
| Weight | ≤ 1.16 KG (2.6 lb) |

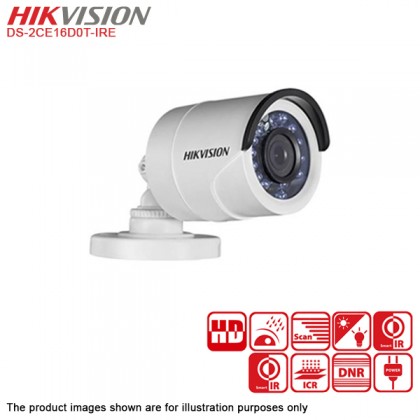

Hikvision DS-2CE16D0T-IRE Camera
Specification
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920x1080 (HxV) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux With IR |
| Shutter Time | 1/25 (1/30)s To 1/50,000s |
| Lens | 3.6mm (2.8mm, 6mm Optional) |
| Lens Mount | M12 |
| Adjustment Range | Pan : 0° To 360°, Tilt : 0° To 180°, Rotate : 0° To 360° |
| Day & Night | IR Cut Filter |
| HD Video Output | 1 Analog HD Output |
| Synchronization | Internal Synchronization |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio | More Than 62 dB |
| Up The Coax | Support |
| General | |
| Material | Metal |
| Operating Conditions | -40°C - 60°C (-40°F - 140°F) Humidity 90% Or Less (Non-Condensing) |
| Power Supply | 12V DC ±30%/PoC.af |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up To 20m |
| Communication | Up The Coax, Protocol : HIKVISION-C (TVI Output) |
| Dimension | Φ 70x154.5 MM (Φ 2.76"x6.08") |
| Weight | Approx. 400 G (0.88 lb.) |
What In The Box
- 1 x Hikvision DS-7204HQHI-K1/P 4 Channel Turbo HD PoC CCTV DVR
- 4 x Hikvision DS-2CE16D0T-IRE 2MP PoC IR Bullet CCTV Camera
- 1 x Power Adapter
- 1 x Power Cord
- 1 x Mouse
Warranty
Hikvision DVR - 1 Years Warranty
Hikvision Camera - 1 Years Warranty
Local Manufacturer Warranty
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
