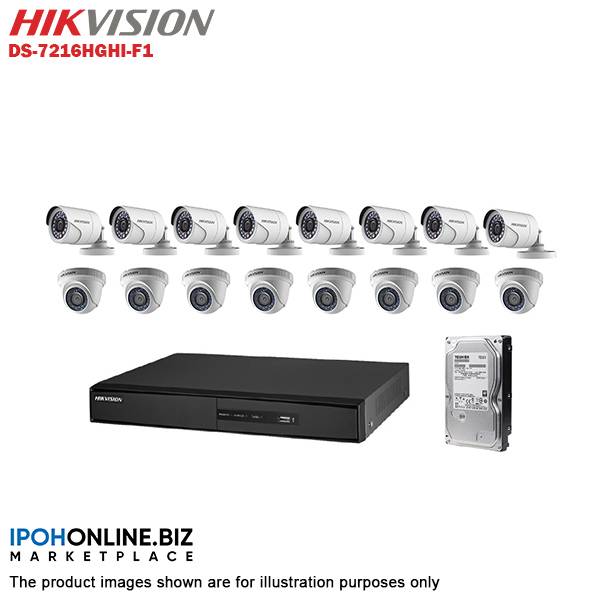

Hikvision Turbo HD 16 Channel CCTV DVR DS-7216HGHI-F1 + Hikvision 1MP 720P Bullet Camera DS-2CE16C0T-IRP & Dome Camera DS-2CE56C0T-IRP + 3TB Toshiba Surveillance CCTV HDD
RM2,199.00 RM4,200.00 RM
Hikvision Turbo HD 16 Channel CCTV DVR DS-7216HGHI-F1 + Hikvision 1MP 720P Bullet Camera DS-2CE16C0T-IRP & Dome Camera DS-2CE56C0T-IRP + 3TB Toshiba Surveillance CCTV HDD
Price RM2,199.00 RM4,200.00 RM
Product SKU DVR-HIK-DS-7216HGHI-F1-1MP-BUL-DOME-TOSHIBA-SET
Brand Hikvision
Size (L x W x H) 80 cm x 55 cm x 55 cm
Availability Out Of Stock
Description
Highlight
  • H.264 / H.264+ & Dual-Stream Video Compression
  • Support Both HD-TVI / Analog And AHD Cameras With Adaptive Access
  • Full Channel Recording At Up To 1080P Lite Resolution
  • HDMI And VGA Output At Up To 1920 × 1080P Resolution
  • Long Transmission Distance Over Coax Cable
  • Support 16-ch Synchronous Playback At 720P Resolution

&l

Hikvision DS-7216HGHI-F1 DVR

Specifications

Video / Audio Input
Audio Input 1-ch
Video Compression H.264+ / H.264
Analog And HD-TVI Video Input 16-ch BNC Interface (1.0Vp-p, 75Ω)
Supported Camera Types Support HDTVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support AHD Input: 720P/25Hz, 720P/30Hz
support CVBS Input
Video Input Interface 2-ch Up To 2MP Resolution
Audio Compression G.711u
Audio Input Interface RCA (2.0 Vp-p, 1kΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ) (Using Audio Input)
Video / Audio Output
HDMI/VGA Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution When 1080p Lite Mode Not Enabled: 720p / WD1 / 4CIF / VGA / CIF
When 1080p Lite Mode Enabled: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate Main Stream:

When 1080p Lite Mode Not Enabled:
For 720p Stream Access: 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)

When 1080p Lite Mode Enabled:
1080p lite / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)
Video Bit Rate 32 Kbps - 4 Mbps
Stream Type Video / Video & Audio
Audio Output 1-ch RCA (Linear, 1kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Playback Resolution 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF
Synchronous Playback 16-ch
Network Management
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up To 6TB Capacity For Each Disk
External Interface
External Interface 1; 10M / 100M Self-Adaptive Ethernet Interface
USB Interface 2 USB 2.0 Interfaces
General
Power Supply 12V DC
Consumption ≤ 20W (Without Hard Disks)
Working Temperature -10ºC To +55ºC (14ºF To 131ºF)
Working Humidity 10% To 90%
Chassis 1U Chassis
Dimensions 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
Weight ≤ 1.2 kg (2.6 lb) (Without Hard Disks)



Hikvision DS-2CE16C0T-IRP Camera

Specifications

Image Sensor 1MP CMOS Image Sensor
Signal System PAL / NTSC
Effective Pixels 1296(H) x 732(V)
Shutter Time 1/25(1/30) s To 1/50,000 s
Lens Mount M12
Adjustment Range Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360°
Day & Night IR Cut Filter With Auto Switch
Video Frame Rate 720p@25fps / 720@30fps
HD Video Output 1 Analog HD Output
Synchronization Internal Synchronization
S/N Ratio More Than 62 dB
General
Operating Conditions -40°C - 60°C (-40°F - 140°F)
Humidity 90% Or Less (Non-Condensing)
Power Supply 12 VDC±15%
Weather Proof IP66
IR Range Up To 20m
Dimension Φ70 × 149.5mm (Φ2.76” × 5.89”)
Weight 300 g

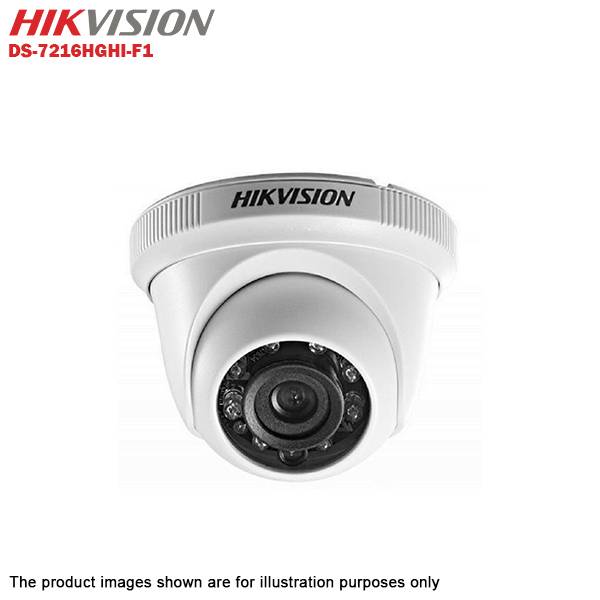

Hikvision DS-2CE56C0T-IRP Camera

Specifications

Camera
Image Sensor 1MP CMOS Image Sensor
Signal System PAL / NTSC
Effective Pixels 1296(H) x 732(V)
Shutter Time 1/25(1/30) s To 1/50,000 s
Lens Mount M12
Adjustment Range Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360°
Day & Night IR Cut Filter With Auto Switch
Video Frame Rate 720p@25fps / 720p@30fps
HD Video Output 1 Analog HD Output
Synchronization Internal Synchronization
S/N Ratio More Than 62 dB
General
Operating Conditions -20°C - 45°C (-4°F - 113°F)
Humidity 90% Or Less (Non-Condensing)
Power Supply 12 VDC±15%
IR Range Up To 20m
Dimension Φ89.5 × 69.8mm (Φ3.52” × 2.75”)
Weight 250 g



Toshiba 3TB Surveillance​ HDD

Toshiba's DT01ABA-V Series DT01ABA300V 3TB, 5,900 rpm 3.5-Inch HDD Deliver 3TB Of Storage Capacity. The DT01ABA-V Series Is Suitable For Video Editing, Set-Top-Box (STB), Digital Video Recorders (DVR) And Network Video Recorders (NVR) Applications Where Large Capacity, Low Power And Low Acoustics Are Critical

Key Features

  • 3TB Of Storage Capacity
  • 3.5 Inch, Low Profile Form Factor
  • 5,900 rpm
  • SATA III 6.0Gb/s
  • Quiet & Low power Operation
  • Advanced Format (AF) 512e Sector Length
  • Low Power Consumption Versus Higher rpm Models (DT01ACA series)
  • 24 dB (Idle)​

Applications

  • Video Editing Systems
  • Set-Top-Box (STB)
  • Digital Video Recorders (DVR)
  • Network Video Recorders (NVR)
  • Network Attached Storage (NAS)
  • PC Backup Storage Hard Drive

Specifications

Manufacturer Toshiba
Manufacturer Part  DT01ABA300V
Data Storage 3TB
Data Transfer Rate 6.0Gb/s
Buffer 32MB Cache
Latency Time 5.06 ms
Rotational Speed 5900 RPM
Interface SATA III 6.0Gb/s
Dimensions (H x W x D) 4 in x 5.8 in x 1 in
Weight Form Factor 1.4 lbs
Form Factor 3.5" Internal Hard Drive





What In The Box

Hikvision DS-7216HGHI-F1 DVR

  • 1 x Hikvision DS-7216HGHI-F1 Turbo HD 16 Channel CCTV DVR
  • 1 x Power Adapter
  • 1 x Mouse
  • 1 x Software CD
  • 1 x User Manual​

Hikvision DS-2CE16C0T-IRP Camera

  • 8 x Hikvision  DS-2CE16C0T-IRP 1MP 720P IR Bullet Camera
  • 8 x Screw Set
  • 8 x User Guide​

Hikvision DS-2CE56C0T-IRP Camera

  • 8 x Hikvision  DS-2CE56C0T-IRP 1MP 720P IR Dome Camera
  • 8 x Screw Set

​





Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]






Reviews (0)
view all
back
0
0 reviews
What's in the box

Hikvision DS-7216HGHI-F1 DVR

  • 1 x Hikvision DS-7216HGHI-F1 Turbo HD 16 Channel CCTV DVR
  • 1 x Power Adapter
  • 1 x Mouse
  • 1 x Software CD
  • 1 x User Manual

​

Hikvision DS-2CE16C0T-IRP Camera

  • 8 x Hikvision  DS-2CE16C0T-IRP 1MP 720P IR Bullet Camera
  • 8 x Screw Set
  • 8 x User Guide

​

Hikvision DS-2CE56C0T-IRP Camera

  • 8 x Hikvision  DS-2CE56C0T-IRP 1MP 720P IR Dome Camera
  • 8 x Screw Set
  • 8 x User Guide

​

Toshiba 1TB 7200 CCTV HDD

  • 1 x Toshiba 3TB Surveillance CCTV HDD
