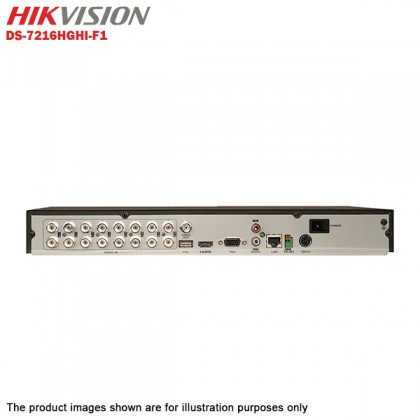

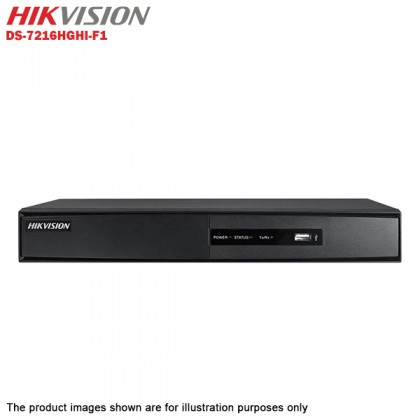

Hikvision Turbo HD 16 Channel CCTV DVR DS-7216HGHI-F1 + Hikvision 1MP 720P Bullet Camera DS-2CE16C0T-IRP & Dome Camera DS-2CE56C0T-IRP + 3TB WD Purple CCTV HDD
Specifications
| Video / Audio Input |
| Audio Input |
1-ch |
| Video Compression |
H.264+ / H.264 |
| Analog And HD-TVI Video Input |
16-ch BNC Interface (1.0Vp-p, 75Ω) |
| Supported Camera Types |
Support HDTVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support AHD Input: 720P/25Hz, 720P/30Hz
support CVBS Input |
| Video Input Interface |
2-ch Up To 2MP Resolution |
| Audio Compression |
G.711u |
| Audio Input Interface |
RCA (2.0 Vp-p, 1kΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) (Using Audio Input) |
| Video / Audio Output |
| HDMI/VGA Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording Resolution |
When 1080p Lite Mode Not Enabled: 720p / WD1 / 4CIF / VGA / CIF
When 1080p Lite Mode Enabled: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF |
| Frame Rate |
Main Stream:
When 1080p Lite Mode Not Enabled:
For 720p Stream Access: 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)
When 1080p Lite Mode Enabled:
1080p lite / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) |
| Video Bit Rate |
32 Kbps - 4 Mbps |
| Stream Type |
Video / Video & Audio |
| Audio Output |
1-ch RCA (Linear, 1kΩ) |
| Audio Bit Rate |
64 Kbps |
| Dual Stream |
Support |
| Playback Resolution |
1080p lite / 720p / WD1 / 4CIF / VGA / CIF |
| Synchronous Playback |
16-ch |
| Network Management |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver |
| Interface Type |
1 SATA Interface |
| Capacity |
Up To 6TB Capacity For Each Disk |
| External Interface |
| External Interface |
1; 10M / 100M Self-Adaptive Ethernet Interface |
| USB Interface |
2 USB 2.0 Interfaces |
| General |
| Power Supply |
12V DC |
| Consumption |
≤ 20W (Without Hard Disks) |
| Working Temperature |
-10ºC To +55ºC (14ºF To 131ºF) |
| Working Humidity |
10% To 90% |
| Chassis |
1U Chassis |
| Dimensions |
260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch) |
| Weight |
≤ 1.2 kg (2.6 lb) (Without Hard Disks) |

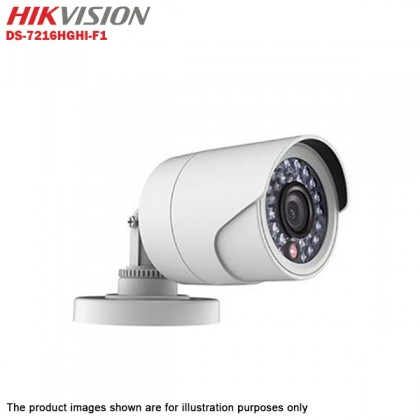

Hikvision DS-2CE16C0T-IRP Camera
Specifications
| Image Sensor |
1MP CMOS Image Sensor |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1296(H) x 732(V) |
| Shutter Time |
1/25(1/30) s To 1/50,000 s |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360° |
| Day & Night |
IR Cut Filter With Auto Switch |
| Video Frame Rate |
720p@25fps / 720@30fps |
| HD Video Output |
1 Analog HD Output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More Than 62 dB |
| General |
| Operating Conditions |
-40°C - 60°C (-40°F - 140°F)
Humidity 90% Or Less (Non-Condensing) |
| Power Supply |
12 VDC±15% |
| Weather Proof |
IP66 |
| IR Range |
Up To 20m |
| Dimension |
Φ70 × 149.5mm (Φ2.76” × 5.89”) |
| Weight |
300 g |

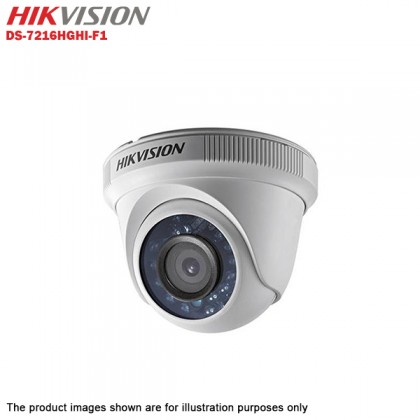

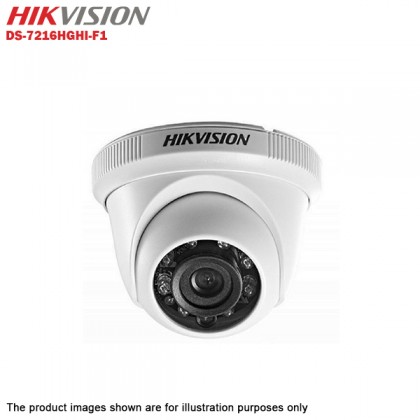

Hikvision DS-2CE56C0T-IRP Camera
Specifications
| Camera |
| Image Sensor |
1MP CMOS Image Sensor |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1296(H) x 732(V) |
| Shutter Time |
1/25(1/30) s To 1/50,000 s |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360° |
| Day & Night |
IR Cut Filter With Auto Switch |
| Video Frame Rate |
720p@25fps / 720p@30fps |
| HD Video Output |
1 Analog HD Output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More Than 62 dB |
| General |
| Operating Conditions |
-20°C - 45°C (-4°F - 113°F)
Humidity 90% Or Less (Non-Condensing) |
| Power Supply |
12 VDC±15% |
| IR Range |
Up To 20m |
| Dimension |
Φ89.5 × 69.8mm (Φ3.52” × 2.75”) |
| Weight |
250 g |

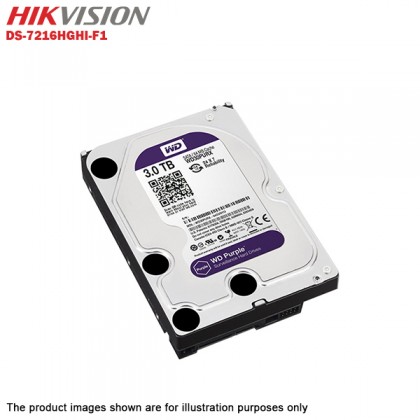

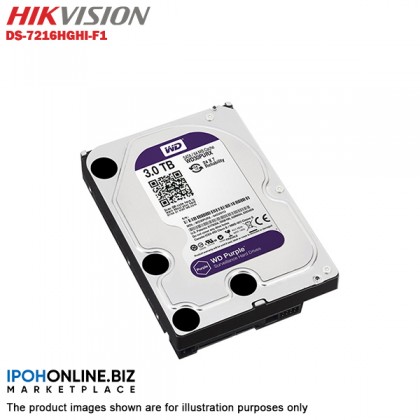

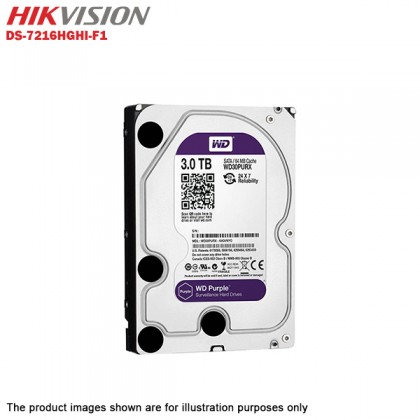

WD 3TB Purple CCTV HDD
Benefits Of All Frame Technology
- Reduces Frame Loss
- Improves Video Playback
- Optimizes The HDD To Thrive In High Temperature, Always-On, Surveillance System Environments
WD Purple Surveillance Storage Is Built To Handle Up To 32 HD Cameras Per Drive And Is Designed For 24/7, Always On, High-Definition Surveillance Security Systems That Use Up To Eight Hard Drives
- Available In Up To 8TB Capacities
- SATA 6Gb/s Interface And 64MB Cache
- Optimized With AllFrameTM Technology
- Surveillance 3.5-Inch Hard Drive
What In The Box
- 1 x Hikvision DS-7216HGHI-F1 Turbo HD 16 Channel CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Software CD
- 1 x User Manuall
- 8 x Hikvision DS-2CE16C0T-IRP IR Bullet Camera
- 8 x Hikvision DS-2CE56C0T-IRP IR Dome Camera
- 16 x Screw Set
- 16 x User Guide
- 1 x WD 3TB Purple CCTV HDD
Warranty
1 Years Warranty
Local Manufacturer Warranty
