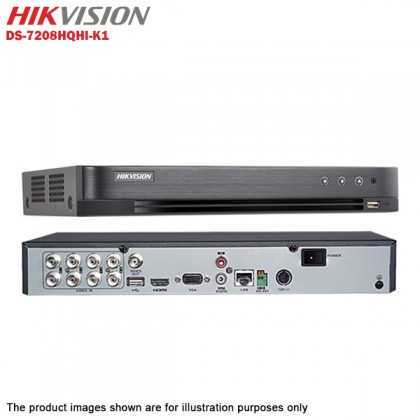

Hikvision Turbo HD 8 Channel CCTV DVR DS-7208HQHI-K1 + Hikvision 1MP 720P Outdoor IR Bullet Camera DS-2CE16C0T-IRP + 1TB Seagate Skyhawk CCTV HDD
Specifications
| Video / Audio Input |
| Audio Input |
1-ch |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Analog and HD-TVI video input |
8-ch, BNC interface (1.0Vp-p, 75Ω) connection |
| Supported camera types |
Support HDTVI input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input |
| Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
| Audio Compression |
G.711u |
| Audio Input Interface |
RCA (2.0 Vp-p, 1kΩ) |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1KΩ), (using the 1st channel of audio input) |
| Video / Audio Output |
| CVBS Output |
1-ch
BNC (1.0Vp-p, 75Ω)
resolution:
PAL: 704x576
NTSC: 704x480 |
| HDMI/VGA Output |
1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution |
When 1080p Lite mode not enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite mode enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF |
| Frame Rate |
Main stream:
When 1080p Lite mode not enabled:
For 3MP stream access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
For 1080p stream access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
When 1080p Lite mode enabled:
3MP@15fps
1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
Sub-stream:
WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N) |
| Video Bit Rate |
32 Kbps - 6 Mbps |
| Stream Type |
Video / Video & Audio |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) (using the audio input) |
| Audio Output |
1-ch RCA (Linear, 1kΩ) |
| Audio Bit Rate |
64 kbps |
| Dual Stream |
Support |
| Playback Resolution |
3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Synchronous Playback |
8-ch |
| Network management |
| Remote connections |
128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver |
| Interface Type |
1 SATA Interface |
| Capacity |
Up to 6TB capacity for each disk |
| External Interface |
| External Interface |
1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface |
2 USB 2.0 Interfaces |
| Serial Interface |
1; standard RS-485 serial interface, half-duplex |
| General |
| Power Supply |
12V DC |
| Consumption |
≤ 7.5W (without hard disks) |
| Working Temperature |
-10ºC to + 55ºC (14ºF to 131ºF) |
| Working Humidity |
10% to 90% |
| Dimensions |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight |
≤ 1.78 kg (3.9 lb) |
Hikvision DS-2CE16C0T-IRP Camera
Specifications
| Image Sensor |
1MP CMOS Image Sensor |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1296(H) x 732(V) |
| Shutter Time |
1/25(1/30) s to 1/50,000 s |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360° |
| Day & Night |
IR cut filter with auto switch |
| Video Frame Rate |
720p@25fps / 720@30fps |
| HD Video Output |
1 Analog HD output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More than 62 dB |
| General |
| Operating Conditions |
-40°C - 60°C (-40°F - 140°F)
Humidity 90% or less (non-condensing) |
| Power Supply |
12 VDC±15% |
| Weather Proof |
IP66 |
| IR Range |
Up to 20m |
| Dimension |
Φ70 × 149.5mm (Φ2.76” × 5.89”) |
| Weight |
300 g |
Seagate SkyHawk 1TB CCTV HDD
Best-Fit Applications
- Network video recorders (NVR)
- Embedded surveillance DVRs (SDVR)
- Hybrid surveillance DVRs
- Surveillance DVRs
Optimized for Surveillance
Surveillance recording demands sustained performance over time. A minute missed can mean money lost—or worse. SkyHawk drives are engineered for always-on recording in harsh environments, ensuring you’ll have the footage you need when you need it.
Specifications
- RAID compatible
- Up to 10TB capacity
- Up to 180TB/year workload rating
- 1M hours MTBF
- 3-year limited warranty
- Supports up to 64 cameras
Stay Safer
SkyHawk drives are ideal for the booming NVR market and RAID environments. Rotational vibration (R/V) sensors along with low power consumption and heat output ensure consistent performance in multi-drive enclosures

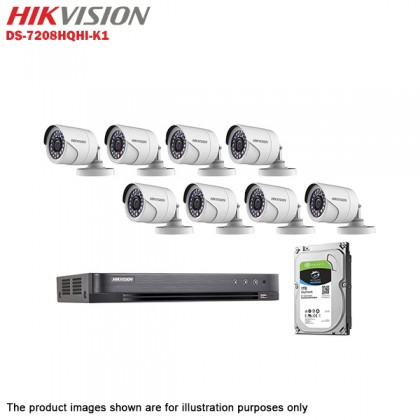

What In The Box
- 1 x Hikvision DS-7208HQHI-K1 Turbo HD 8 Channel CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Software CD
- 1 x User Manual
- 8 x Hikvision DS-2CE16C0T-IRP IR Bullet Camera
- 8 x Screw Set
- 8 x User Guide
- 1 x Seagate SkyHawk 1TB Surveillance CCTV HDD
Warranty
1 Years Warranty
Local Manufacturer Warranty
