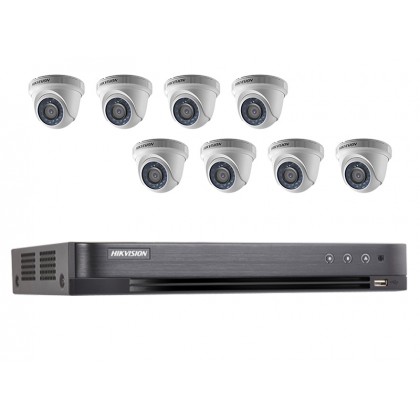

Name: Hikvision Turbo HD 8 Channel CCTV DVR DS-7208HQHI-K1 + Hikvision 2MP 1080P Indoor IR Dome Camera DS-2CE56D0T-IR
Brand: Hikvision
SKU: DVR-HIK-DS-7208HQHI-K1-2MP-DOME-SET
Price: 799.00 MYR
Availability: OutOfStock

Hikvision Turbo HD 8 Channel CCTV DVR DS-7208HQHI-K1 + Hikvision 2MP 1080P Indoor IR Dome Camera DS-2CE56D0T-IR

RM799.00 RM1,600.00 RM

Hikvision Turbo HD 8 Channel CCTV DVR DS-7208HQHI-K1 + Hikvision 2MP 1080P Indoor IR Dome Camera DS-2CE56D0T-IR

Price	RM799.00 RM1,600.00 RM
Product SKU	DVR-HIK-DS-7208HQHI-K1-2MP-DOME-SET
Brand	Hikvision
Size (L x W x H)	100 cm x 35 cm x 60 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								H.265+ / H.265 / H.264+ / H.264 encoding for the main stream, and H.265 / H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI / HDCVI / AHD / CVBS signal input
Connectable to H.265+ / H.265 / H.264+ / H.264 IP cameras
Up to 3MP resolution for recording
Long distance transmission over UTP and coaxial cable
8-ch synchronous playback

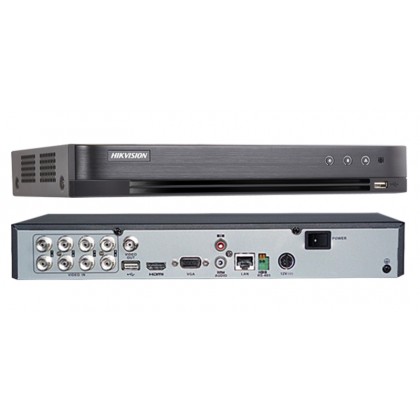

Hikvision DS-7208HQHI-K1 DVR

Specifications

Video / Audio Input
Audio Input	1-ch
Video Compression	H.265+ / H.265 / H.264+ / H.264
Analog and HD-TVI video input	8-ch, BNC interface (1.0Vp-p, 75Ω) connection
Supported camera types	Support HDTVI input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1kΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1KΩ), (using the 1st channel of audio input)
Video / Audio Output
CVBS Output	1-ch BNC (1.0Vp-p, 75Ω) resolution: PAL: 704x576 NTSC: 704x480
HDMI/VGA Output	1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF When 1080p Lite mode enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rate	Main stream: When 1080p Lite mode not enabled: For 3MP stream access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps For 1080p stream access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) When 1080p Lite mode enabled: 3MP@15fps 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Sub-stream: WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N)
Video Bit Rate	32 Kbps - 6 Mbps
Stream Type	Video / Video & Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1kΩ) (using the audio input)
Audio Output	1-ch RCA (Linear, 1kΩ)
Audio Bit Rate	64 kbps
Dual Stream	Support
Playback Resolution	3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
Synchronous Playback	8-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 6TB capacity for each disk
External Interface
External Interface	1; 10M / 100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1; standard RS-485 serial interface, half-duplex
General
Power Supply	12V DC
Consumption	≤ 7.5W (without hard disks)
Working Temperature	-10ºC to + 55ºC (14ºF to 131ºF)
Working Humidity	10% to 90%
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight	≤ 1.78 kg (3.9 lb)

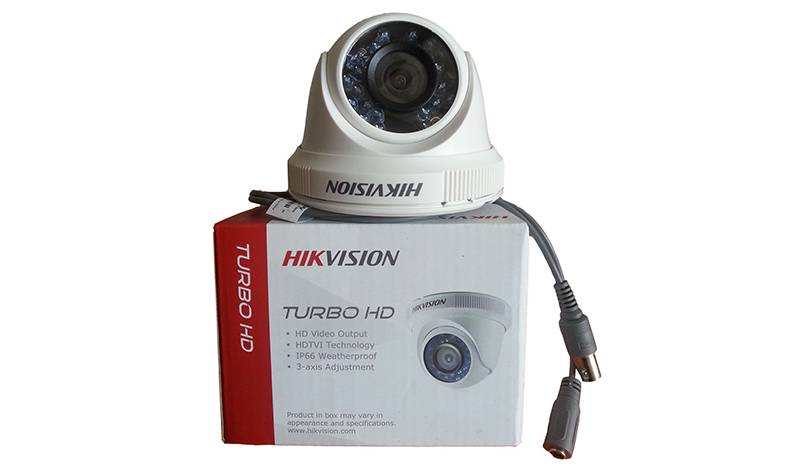

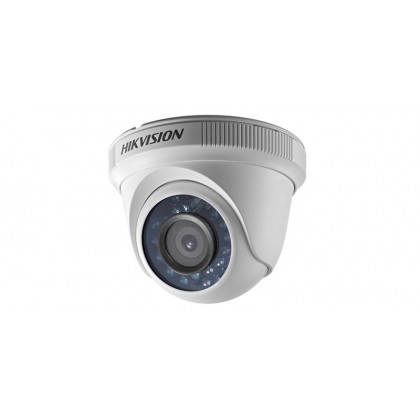

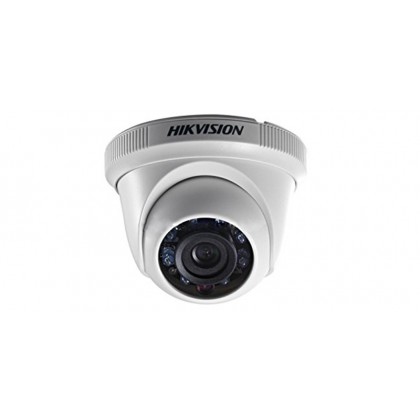

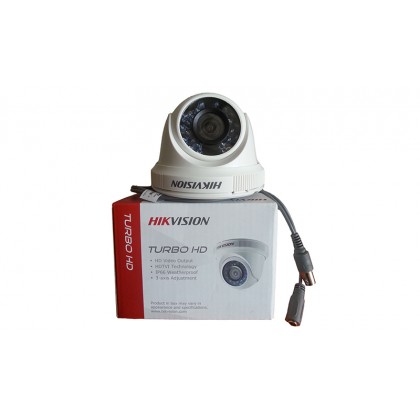

Hikvision DS-2CE56D0T-IR Camera

Specifications

Camera
Image Sensor	2MP CMOS Image Sensor
Signal System	PAL / NTSC
Effective Pixels	1920(H) x 1080(V)
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens Mount	M12
Adjustment Range	Pan: 0 - 360° Tilt: 0 - 75° Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Video Frame Rate	1080p@25fps / 1080p@30fps
HD Video Output	1 Analog HD output
Synchronization	Internal Synchronization
S/N Ratio	More than 62 dB
General
Operating Conditions	-40°C - 60°C (-40°F - 140°F) Humidity 90% or less (non-condensing)
Power Supply	12 VDC±15%
Weather Proof	IP66
IR Range	Up to 20m
Dimension	Φ89.5 × 69.8 mm (Φ3.52” × 2.75”)
Weight	280 g (0.57 lbs)
