| Price | RM799.00 RM999.00 RM |
| Product SKU | DVR-HIK-DS-7208HQHI-K1-2MP-BUL-TOSHIBA-SET |
| Size (L x W x H) | 100 cm x 40 cm x 60 cm |
| Availability | |
- Support all type DVR and Brand
- 2 megapixel high performance CMOS
- Analog HD output, up to 1080p resolution
- H.265+ / H.265 / H.264+ / H.264 encoding for the main stream, and H.265 / H.264 for the sub-stream of analog cameras
- 6Gb/s SATA Interface
- Halogen-free design and power-efficient operation

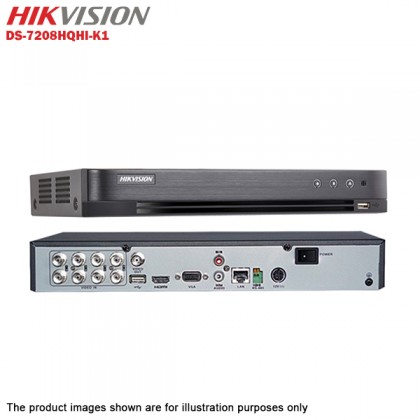

Hikvision Turbo HD 8 Channel CCTV DVR DS-7208HQHI-K1 + HIKVISION DS-2CE16D 0T-IRF 2MP Turbo HD 1080P 4 in 1 TVI AHD CVI CVBS IR Bullet CCTV Camera + 1TB Toshiba CCTV HDD
Specifications
| Video / Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Analog And HD-TVI Video Input | 8-ch, BNC Interface (1.0Vp-p, 75Ω) Connection |
| Supported Camera Types | Support HDTVI Input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Support AHD Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS Input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input) |
| Video / Audio Output | |
| CVBS Output |
1-ch
BNC (1.0Vp-p, 75Ω)
resolution:
PAL: 704x576
NTSC: 704x480
HDMI/VGA Output 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording Resolution When 1080p Lite Mode Not Enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite mode enabled: 1080p Lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rate Main Stream:
When 1080p Lite Mode Not Enabled:
For 3MP Stream Access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
For 1080p Stream Access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
For 720p Stream Access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
When 1080p Lite Mode Enabled:
3MP@15fps
1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
Sub-stream:
WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N)
|
| Video Bit Rate | 32 Kbps - 6 Mbps |
| Stream Type | Video / Video & Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) (Using The Audio Input) |
| Audio Output | 1-ch RCA (Linear, 1kΩ) |
| Audio Bit Rate | 64 kbps |
| Dual Stream | Support |
| Playback Resolution | 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Synchronous Playback | 8-ch |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6TB Capacity For Each Disk |
| External Interface | |
| External Interface | 1; 10M / 100M Self-Adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; standard RS-485 Serial Interface, Half-Duplex |
| General | |
| Power Supply | 12V DC |
| Consumption | ≤ 7.5W (Without Hard Disks) |
| Working Temperature | -10ºC to + 55ºC (14ºF to 131ºF) |
| Working Humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 1.78 kg (3.9 lb) |

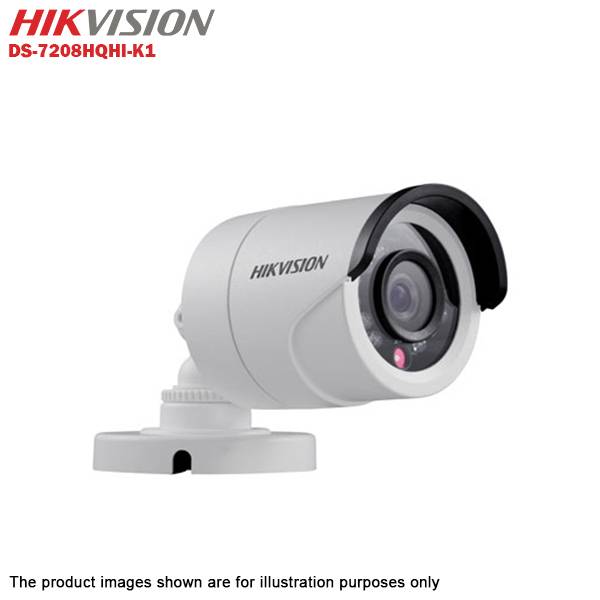

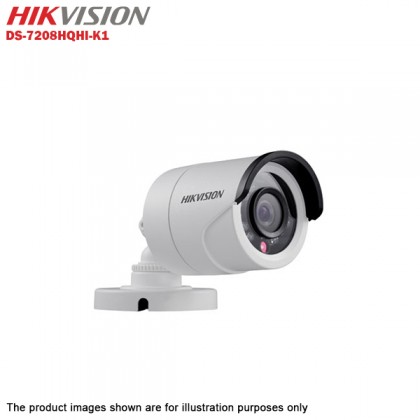

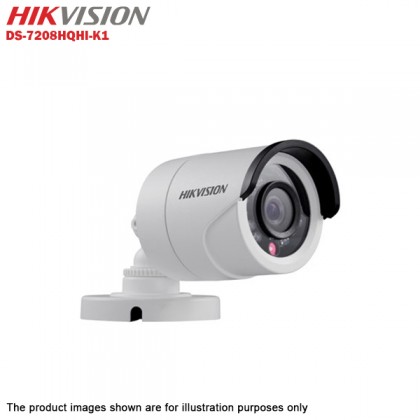

HIKVISION DS-2CE16D0T-IRF
Specification
| CAMERA | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) ×1080 (V) |
| Min. illumination | 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm Optional |
| Field of view: | 103°(2.8 mm), 82.2°(3.6 mm), 54°(6 mm) |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Synchronization | Internal synchronization |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 analog HD output |
| S/N Ratio | >62 dB |
| GENERAL | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 V DC±15% |
| Power Consumption | Max. 4 W |
| Protection Level | IP66 |
| IR Range | Up to 20 m |

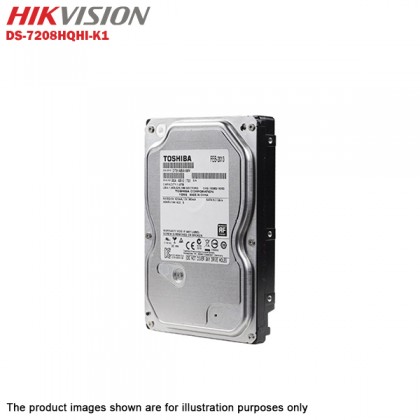

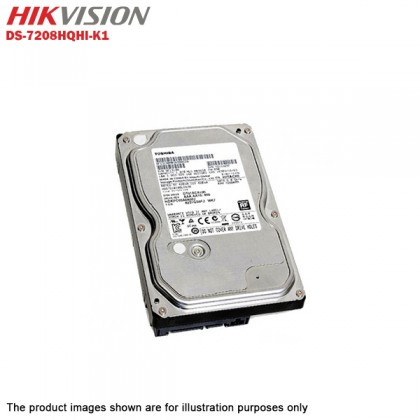

Overview
Toshiba’s 7200 RPM 3.5-inch (8.9cm) HDD series is optimised for use in power-friendly consumer and commercial desktop computers, gaming PCs and external HDD. The DT01ACA100 offers 1TB capacity and uses Advanced Format and leverages a best-in-class power management technology. In addition, this desktop drive provides up to 16% idle power savings over the previous model. The 6Gb/s SATA interface drives deliver 7200 RPM performance.
Features
- 7200 RPM performance.
- For use in consumer and commercial computers.
- 6Gb/s SATA Interface.
- Halogen-free design and power-efficient operation.
- 1 x Hikvision DS-7208HQHI-K1 Turbo HD 8 Channel CCTV DVR- 1 x Power Adapter- 1 x Mouse- 1 x Software CD- 1 x User Manual- 8 x Hikvision DS-2CE16D0T-IRF 2MP Bullet Camera- 8 x Screw Set- 8 x User Guide- 1 x 1TB Toshiba CCTV HDD
