Description

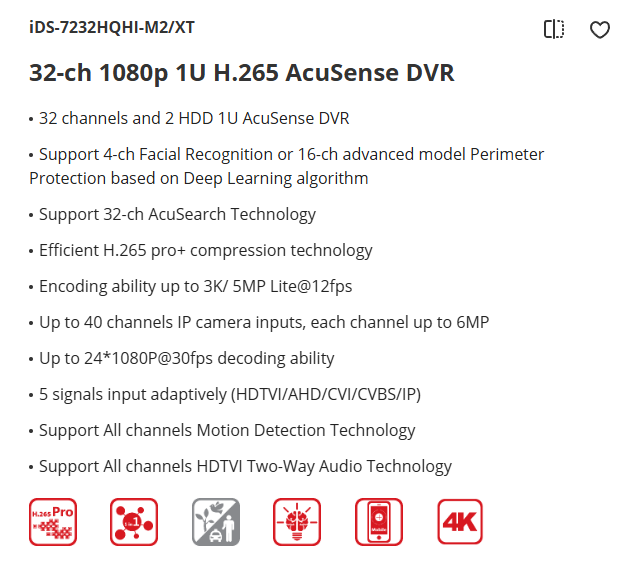

Highlight
- 32-channel 1U AcuSense DVR with support for 2 SATA hard drives.
- Deep learning-powered AcuSense technology for accurate human and vehicle classification.
- Supports up to 4-channel facial recognition.
- Up to 16-channel perimeter protection with intelligent intrusion and line-crossing detection.
- AcuSearch technology for faster event retrieval.
- Motion Detection 2.0 across all analog channels to reduce false alarms.
- Efficient H.265 Pro+ video compression for reduced bandwidth and storage usage.
- Supports up to 3K / 5 MP Lite recording.
- Accepts five video signal types: HDTVI, AHD, HDCVI, CVBS, and IP.
- Expandable to support up to 40 camera channels with IP cameras.
- HDMI output up to 4K resolution.
- HDTVI two-way audio supported on all channels.
- Smart playback for quicker incident review.
- Compatible with Hik-Connect for remote monitoring and management.
- Supports ONVIF for broad IP camera compatibility.
Features
- 32-channel 1U AcuSense DVR with support for 2 SATA hard drives.
- Deep learning-powered AcuSense technology for accurate human and vehicle classification.
- Supports up to 4-channel facial recognition.
- Up to 16-channel perimeter protection with intelligent intrusion and line-crossing detection.
- AcuSearch technology for faster event retrieval.
- Motion Detection 2.0 across all analog channels to reduce false alarms.
- Efficient H.265 Pro+ video compression for reduced bandwidth and storage usage.
- Supports up to 3K / 5 MP Lite recording.
- Accepts five video signal types: HDTVI, AHD, HDCVI, CVBS, and IP.
- Expandable to support up to 40 camera channels with IP cameras.
- HDMI output up to 4K resolution.
- HDTVI two-way audio supported on all channels.
- Smart playback for quicker incident review.
- Compatible with Hik-Connect for remote monitoring and management.
- Supports ONVIF for broad IP camera compatibility.
Specifications
| Model | Hikvision iDS-7232HQHI-M2/XT |
| Product Type | 32-Channel 1U AcuSense DVR |
| Facial Recognition | Up to 16 face picture libraries (stored in flash memory backup) |
| Face Picture Comparison | 4-channel face picture comparison alarm (HD analog camera) |
| Motion Detection 2.0 | Deep learning-based motion detection on all 32 analog channels with human/vehicle classification and quick search |
| Perimeter Protection | Up to 8 analog channels (Advanced Model), human/vehicle classification |
| Facial Detection | Face picture detection and face picture search |
| Face Capture | 4-channel face picture capture |
| Analog Video Input | 32 × BNC (1.0 Vp-p, 75 Ω), Coaxitron supported |
| IP Video Input | 8 IP channels (expandable up to 40 channels), up to 6 MP each |
| Video Standards | HDTVI / AHD / HDCVI / CVBS / IP |
| HDTVI Input | 3K (2960 × 1665) @25/20fps, 3K (3328 × 1504) @20fps, 5MP @20fps, 4MP @25/30fps, 1080P @25/30fps, 720P @25/30fps |
| AHD Input | 5MP @20fps, 4MP @25/30fps, 1080P @25/30fps, 720P @25/30fps |
| HDCVI Input | 3K (2880 × 1620) @25fps, 5MP @20fps, 4MP @25/30fps, 1080P @25/30fps, 720P @25/30fps |
| CVBS Input | PAL / NTSC |
| HDMI Output | 1 × HDMI, up to 4K (3840 × 2160) @30Hz, 2K @60Hz, 1920 × 1080 @60Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 @60Hz |
| HDMI/VGA Output Mode | Simultaneous output |
| CVBS Output | 1 × BNC, PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 1 × RCA (2.0 Vp-p, 1 kΩ), 32 channels via coaxial cable |
| Audio Output | 1 × RCA (Linear, 1 kΩ) |
| Two-Way Audio | 1 × RCA (using audio input), HDTVI Two-Way Audio supported |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Encoding Resolution | 3K Lite, 5MP Lite, 4MP Lite, 1080P, 720P, VGA, WD1, 4CIF, CIF |
| Frame Rate | Up to 3K Lite/5MP Lite @12fps, 4MP Lite @15fps, 1080P Lite @20–30fps, 720P @15–30fps (depending on mode) |
| Sub-stream | WD1 / 4CIF @12fps, CIF @25/30fps |
| Video Bit Rate | 32 Kbps – 10 Mbps |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Main Stream / Sub Stream |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 16 Channels |
| Decoding Capability | Up to 24 × 1080P @30fps |
| Total Incoming Bandwidth | 256 Mbps |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connections | Up to 128 users |
| Network Interface | 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| SATA Interface | 2 × SATA |
| Maximum HDD Capacity | Up to 12 TB per HDD |
| USB Interface | Front: 1 × USB 2.0; Rear: 2 × USB 3.0 |
| Serial Interface | RS-485 (Half-duplex) |
| Alarm I/O | N/A (Optional support) |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | ≤ 60 W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 384 × 313 × 52 mm |
| Weight | ≤ 2.1 kg (without HDD) |
What's In The Box?
- 1 × DVR
- 1 × 12V Power Adapter
- 1 × SATA Cables
- 1 × Drive-Mounting Screws
- 1 × USB Mouse
Warranty
2 Year Warranty
Local Manufacturer Warranty
