| Price | RM428.00 RM528.00 RM |
| Product SKU | DVR-HIK-iDS-7204HUHI-M1/E |
| Brand | Hikvision |
| Size (L x W x H) | 45 cm x 33 cm x 13 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- 4-channel 1U H.265 AcuSense DVR
- Deep learning-based Motion Detection 2.0 with human and vehicle classification
- Deep learning-based perimeter protection with human/vehicle analysis
- Supports facial detection and capture, including face-picture search
- Supports H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 video compression
- Supports HDTVI, AHD, HDCVI, CVBS and IP video inputs
- Up to 8 MP recording and encoding capability
- Up to 6 IP camera inputs, expandable to 8 channels with Enhanced IP mode
- Supports IP cameras up to 8 MP resolution
- Audio transmission via coaxial cable
- Supports HDMI and VGA simultaneous video output
- Supports 4-channel synchronous playback
- Supports Hik-Connect for remote access and management
- Supports ONVIF for compatibility with supported third-party IP cameras
- Smart search for efficient playback
- Supports connection to a Wi-Fi network using a compatible Wi-Fi dongle through USB
Features
- 4-channel 1U H.265 AcuSense DVR
- Deep learning-based Motion Detection 2.0 with human and vehicle classification
- Deep learning-based perimeter protection with human/vehicle analysis
- Supports facial detection and capture, including face-picture search
- Supports H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 video compression
- Supports HDTVI, AHD, HDCVI, CVBS and IP video inputs
- Up to 8 MP recording and encoding capability
- Up to 6 IP camera inputs, expandable to 8 channels with Enhanced IP mode
- Supports IP cameras up to 8 MP resolution
- Audio transmission via coaxial cable
- Supports HDMI and VGA simultaneous video output
- Supports 4-channel synchronous playback
- Supports Hik-Connect for remote access and management
- Supports ONVIF for compatibility with supported third-party IP cameras
- Smart search for efficient playback
- Supports connection to a Wi-Fi network using a compatible Wi-Fi dongle through USB
Specifications
| Product Model | Hikvision iDS-7204HUHI-M1/E |
| Product Type | 4-Channel 1U H.265 AcuSense DVR |
| Motion Detection 2.0 | Deep learning-based human and vehicle classification; reduces false alarms caused by objects such as leaves and lights; quick search by object or event type |
| Human/Vehicle Analysis | Deep learning-based analysis; up to 4 channels |
| Perimeter Protection | Line crossing detection / intrusion detection; up to 4 channels |
| Facial Detection | Face detection and capture; face picture detection and face picture search |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | 8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF |
| Main Stream Frame Rate | 8 MP @ 8 fps / 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 8 MP Lite @ 15 fps / 3 MP @ 18 fps / 1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) |
| Sub-Stream Frame Rate | WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Supported |
| Stream Type | Video; Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| IP Video Input | 2 channels, up to 6 channels; Enhanced IP mode: 4 channels, up to 8 channels, each up to 4 Mbps |
| IP Camera Resolution | Up to 8 MP |
| Supported IP Camera Compression | H.265+ / H.265 / H.264+ / H.264 |
| Analog Video Input | 4 channels; BNC interface, 1.0 Vp-p, 75 Ω; Coaxitron supported |
| HDTVI Input | 8 MP (3840 × 2160) @ 15/12 fps; 3K (2960 × 1665) @ 20 fps; 5 MP (2560 × 1944) @ 20/12 fps; 4 MP (2560 × 1440) @ 30/25 fps; 3 MP @ 18 fps; 1080p @ 30/25 fps; 720p @ 30/25 fps |
| AHD Input | 5 MP (2560 × 1944) @ 20/12 fps; 4 MP (2560 × 1440) @ 30/25 fps; 1080p @ 30/25 fps; 720p @ 30/25 fps |
| HDCVI Input | 8 MP (3840 × 2160) @ 15/12 fps; 5 MP (2592 × 1944) @ 20 fps; 4 MP (2560 × 1440) @ 30/25 fps; 1080p @ 30/25 fps; 720p @ 30/25 fps |
| CVBS Input | PAL / NTSC |
| HDMI Output | 1 channel; 2K (2560 × 1440) / 60 Hz; 1920 × 1080 / 60 Hz; 1280 × 1024 / 60 Hz; 1280 × 720 / 60 Hz |
| VGA Output | 1 channel; 1920 × 1080 / 60 Hz; 1280 × 1024 / 60 Hz; 1280 × 720 / 60 Hz |
| Video Output Mode | HDMI / VGA simultaneous output |
| Audio Input | 1 channel RCA, 2.0 Vp-p, 1 KΩ; 4 channels via coaxial cable |
| Audio Output | 1 channel RCA, linear, 1 KΩ |
| Two-Way Audio | 1 channel RCA, 2.0 Vp-p, 1 KΩ, using the first audio input |
| Synchronous Playback | 4 channels |
| Total Bandwidth | 96 Mbps |
| Remote Connection | Up to 32 connections |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Wi-Fi connection supported through a compatible Wi-Fi dongle via USB |
| SATA Interface | 1 × SATA |
| HDD Capacity | Up to 10 TB per disk |
| Alarm Input / Output | N/A |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 15 W, without HDD |
| Working Temperature | -10°C to +55°C (+14°F to +131°F) |
| Working Humidity | 10% to 90% |

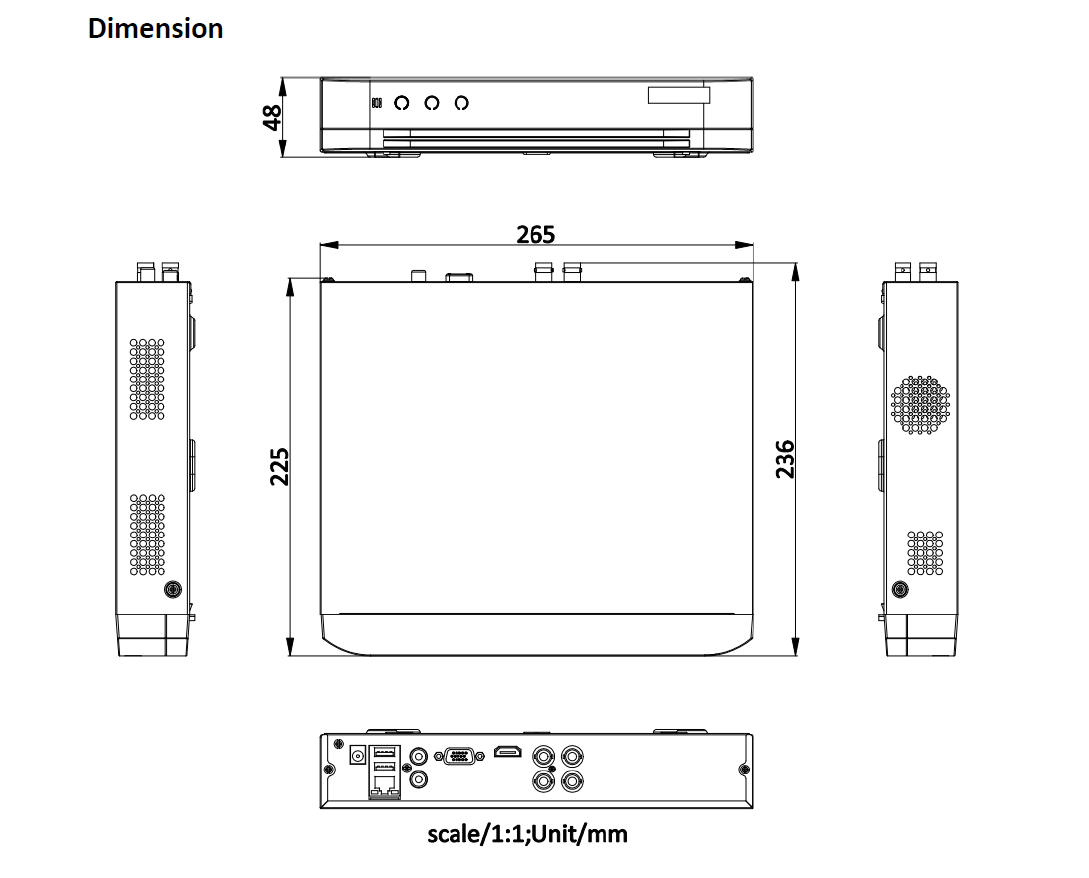

| Dimensions (W × D × H) | 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 in) |
| Weight | ≤ 1.16 kg (without HDD) |
What's In The Box?
- 1 × Hikvision iDS-7204HUHI-M1/E DVR Unit
- 1 × 12V DC Power Adapter & Cable
- 1 × Wired USB Optical Mouse
- 1 × SATA Internal Data & Power Connector Cable Cluster
- 4 × Hard Disk Drive Mounting Screws
- 1 × Quick Start Guide / Instruction Manual
Warranty
1 Year Warranty
Local Manufacturer Warranty
