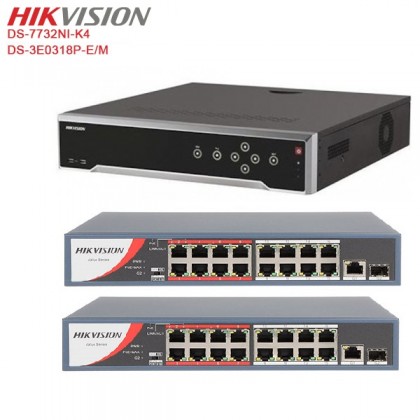

Hikvision DS-7732NI-K4 Network 32 channel 8MP Embedded 4K IP NVR + 2 x 16 Port Fast Ethernet Unmanaged POE Switch 1 port 1GBps uplink
Price RM2,450.00 RM3,998.00 RM
Product SKU NVR-HIK-DS-7732NI-K4-SWI-HIK-DS-3E0318P-E/M
Brand Hikvision
Size (L x W x H) 60 cm x 60 cm x 60 cm
Availability Out Of Stock
Description
Highlight

Hikvision DS-7732NI-K4 Network 32 channel 8MP Embedded 4K IP NVR + 2 x 16 Port Fast Ethernet Unmanaged POE Switch 1 port 1GBps uplink

  • Third-party network cameras supported
  • Up to 8 Megapixels resolution recording
  • Up to 32 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 4 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
  • 16 x 10/100 Mbps PoE ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • IEEE 802.3 af & at high POE power supply
  • Maximum 250 m long distance PoE transmission
  • VIP port transmission priority
  • Safe and reliable using 6 KV high surge protection
  • Supports store-and-forward
  • Supports MAC address auto learning and auto aging
  • Supports smart cache optimization
  • Supports desktop / wall mounting

Hikvision DS-7732NI-K4 Network 32 channel 8MP Embedded 4K IP NVR + 2 x 16 Port Fast Ethernet Unmanaged POE Switch 1 port 1GBps uplink

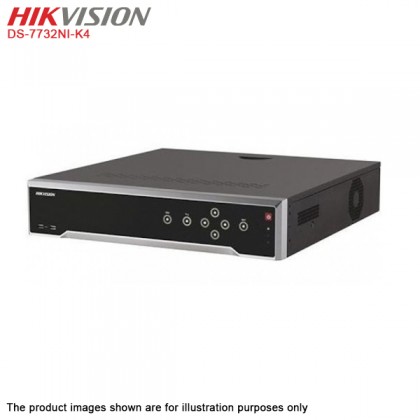

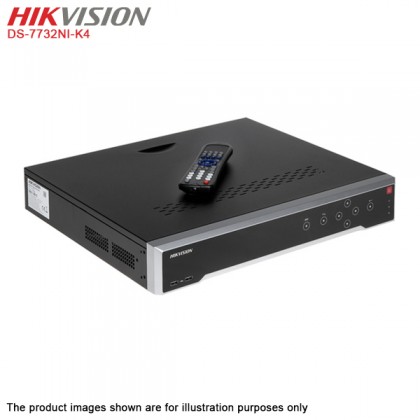

DS-7732NI-K4 Network 32 channel 8MP Embedded 4K IP NVR





Specification

Decoding
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF,
Decoding Format H.265/H.265+/H.264+/H.264/MPEG4
Synchronous Playback 16-ch
Chassis 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
External Interface
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial Port 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
Video/ Audio Input
IP Video Input 32-ch
Incoming/Outgoing Bandwidth 256 Mbps 160 Mbps
General
Power ≤ 80 W
Power Supply 100 to 240 VAC
Consumption (Without HDD) ≤ 20 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90 %
Dimensions (W × D × H) 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight (Without Hard Disk) ≤ 5 kg (11. lb)
Video/ Audio Output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
HDMI Output 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network Management
Network Protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA 4 SATA interfaces
Capacity Up to 6TB capacity for each HDD





16 Port Fast Ethernet Unmanaged POE Switch 1 port 1GBps uplink





Specification

General
Storage Temperature Storage Temperature: -40 °C ~ 70 °C
Working Temperature Operating Temperature: 0 °C ~ 40 °C
Working Humidity Operating Humidity: 10% - 90% RH non-condensing
Storage Humidity Storage Humidity: 5% - 90% RH non-condensing
Power Input 100~240 V AC,50/60 Hz
Power Consumption ≤150w
Performance
Switching Capacity 7.2 Gbps
Store-And-Forward Supported
MAC Address Table 4 k
MAC Address Learning Auto-learning/ Auto-aging
PoE
Working Mode Priority, Standard, Isolate, Extend
PoE Standard IEEE 802.3af, IEEE802.3at
PoE Powering Mode Supports 8-pin power supply
PoE Port 1-16
Maximum Total Output 135 W
Maximum Port Output 30 W
Port
High-Priority Port Port 1 - 8
1000 Mbps SFP 1 independent
10/100/1000 Mbps RJ45 1
10/100 Mbps RJ45 16
Standard
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Network
Transmission Speed Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex),Gigabit Ethernet: 2000 Mbps (Full Duplex)
Transmission Medium Ethernet: Cat 3 or better UTP/STP,Fast Ethernet: Cat 5 or better UTP/STP,Gigabit Ethernet: Cat 5 or better UTP/STP,1000 Base-SX: MMF (Multimode optical fiber),1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)
Lightning-Proof Ranking 4 kV
POE
PoE Powering Mode Supports 8-pin power supply
PoE Port 1-16





What's in the box

  • 1 x Hikvision DS-7732NI-K4 Network 32 channel 8MP Embedded 4K IP NVR
  • 2 x Hikvision DS-3E0318P-E/M





Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
