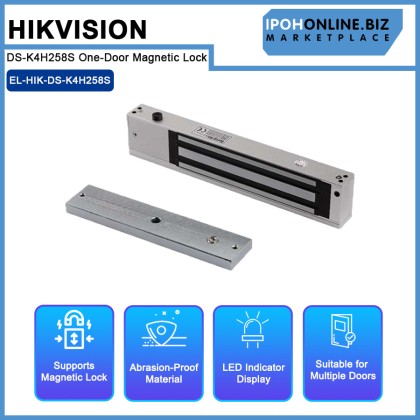

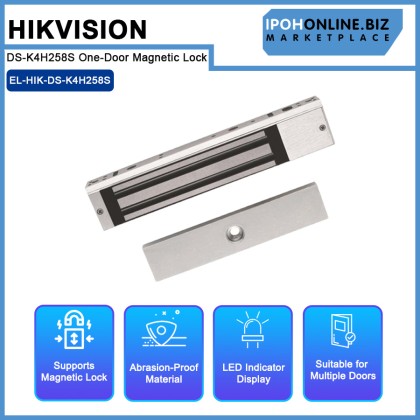

Name: HIKVISION DS-K4H258S One-Door Magnetic Lock
Brand: Hikvision
SKU: EL-HIK-DS-K4H258S
Price: 79.00 MYR
Availability: InStock

HIKVISION DS-K4H258S One-Door Magnetic Lock

RM79.00 RM99.00 RM

HIKVISION DS-K4H258S One-Door Magnetic Lock

Price	RM79.00 RM99.00 RM
Product SKU	EL-HIK-DS-K4H258S
Brand	Hikvision
Size (L x W x H)	31 cm x 12 cm x 11 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
Suitable for wooden door, glass door, metal door and fireproof door
LED indicator displays door lock status
Abrasion-proof materials


Features

Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
Suitable for wooden door, glass door, metal door and fireproof door
LED indicator displays door lock status
Abrasion-proof materials

Specification

General
Indicator	Green: Working Status
Power supply	12 VDC, 340 mA × 2
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	0 to 95 % (relative humidity)
Dimensions	Lock Body: 238 mm × 45 mm × 25 mm (9.4" × 1.8" × 1.0") Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2" × 1.5" × 0.5")
Weight	2.1 kg (4.6 lb)
Material	Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Nickel Electroplating Operated Armature Plate: eco-friendly Zinc Electroplating Operated
Thrust	Max. 280 kg (617 lb)
Door type	Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
Magnetic Lock
Unlock method	Current Interruption
Surface temperature	≤ Ambient Temperature +20 °C (68 °F)
