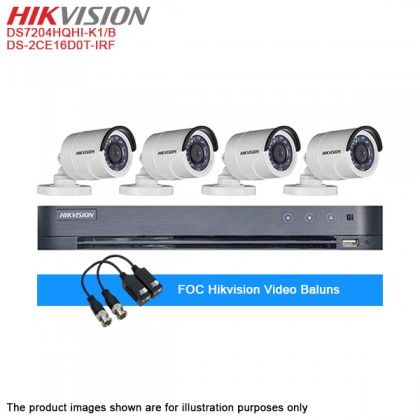

Hikvision 4 Channel Turbo HD Balun DVR + Hikvision 2MP IR Bullet Camera x 4 + 12V 1A Power Adapter + 1TB CCTV Hard Drive + FOC Hikvision Video Baluns Package
Price RM715.00 RM849.00
Product SKU DVR-HIK-DS-DS7204HQHI-K1/B-2MP-BUL-HDD-ITB-SET-FOC
Brand Hikvision
Size (L x W x H) 55 cm x 20 cm x 40 cm
Availability 1
Quantity
Description
Highlight
  • Support H.265 Pro+/H.265 Pro/H.265 Video Compression
  • Support HDTVI/AHD/CVI/CVBS/IP Video Input
  • Max. 6 IP Cameras Input (Up To 6MP)
  • Up To 10TB Capacity Per HDD
  • Video In, Balun Interface

Hikvision 4 Channel Turbo HD Balun DVR + Hikvision 2MP IR Bullet Camera x 4 + 12V 1A Power Adapter + 1TB CCTV Hard Drive + FOC Hikvision Video Baluns Package

hikvision-ds7204hqhi-k1B-ds2ce16d0t-irf-06

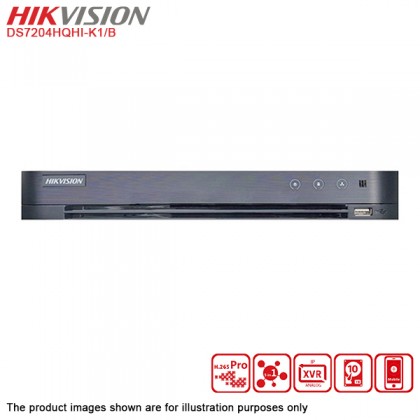

Hikvision DS7204HQHI-K1/B 4 Channel Turbo HD Balun DVR
Specification

Video/Audio Input
Audio Input 1-CH
Analog And HD-TVI Video Input 4-CH, BNC Interface (1.0Vp-p, 75Ω) Connection
Supported Camera Types
4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note : The 3MP Signal Input Is Only Available For Channel 1 Of DS-7204HQHI-K1
Support AHD Input : 4MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI Input : 1080p25, 1080p30, 720p25, 720p30
Support CVBS Input
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G.711u
Audio Input Interface RCA (2.0 Vp-p, 1KΩ)
HDMI/VGA Output 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution When 1080p Lite Mode Not Enabled
4MP Lite/3MP/1080p/1080p Lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite Mode Enabled
4MP Lite/3MP/1080p Lite/720p/720p Lite/WD1/4CIF/VGA/CIF
Frame Rate Main Stream
When 1080p Lite Mode Not Enabled
For 4MP Stream Access : 4MP Lite@15fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3MP Stream Access : 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p Stream Access : 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p Stream Access : 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite Mode Enabled
4MP Lite/3MP@15fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate 32Kbps-6Mbps
Stream Type Video/Video & Audio
Two-Way Audio 1-CH RCA (2.0 Vp-p, 1 KΩ) (Using The Audio Input)
Audio Output 1-CH RCA (Linear, 1KΩ)
Audio Bit Rate 64kbps
Dual Stream Support
Synchronous Playback 4-CH
Network
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Hard Disk Driver
Interface Type 1 SATA Interface
External Interface
Network Interface 1;10M/100M Self-Adaptive Ethernet Interface
USB Interface 2 USB 2.0 Interfaces
Serial Interface
1;Standard RS-485 Serial Interface, Half-Duplex
General
Power Supply 12 VDC
Consumption ≤ 6W (Without HDD)
Working Temperature -10°C To 55°C
Working Humidity 10% To 90%
Dimension 260x222x45 MM (WxDxH)
Weights ≤ 1.16 KG (Without HDD)

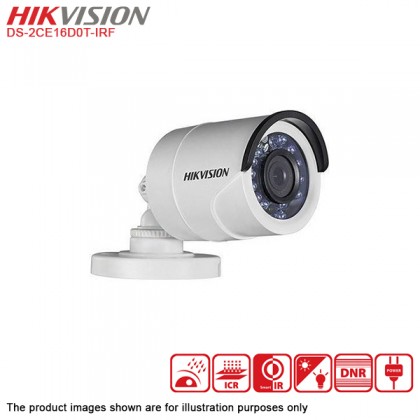

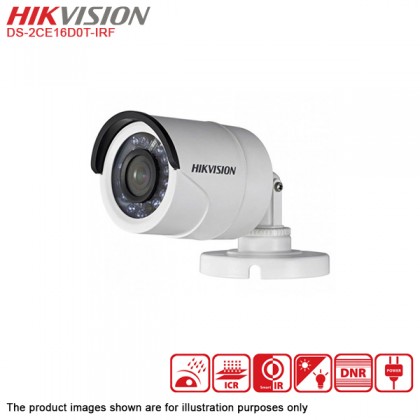

Hikvision DS-2CE16D0T-IRF 2MP IR Bullet Camera
Specification
Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Frame Rate PAL : 1080p@25fps
NTSC : 1080p@30fps
Resolution 1920x1080 (HxV)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux With IR
Shutter Time 1/25 (1/30)s To 1/50,000s
Lens 2.8 MM, 3.6 MM, 6 MM Fixed Lens
Horizontal Field Of View 103°(2.8 MM), 82.2°(3.6 MM), 54°(6 MM)
Lens Mount M12
Day & Night IR Cut Filter
Angle Adjustment Pan : 0° To 360°, Tilt : 0° To 180°, Rotation : 0° To 360°
Synchronization Internal Synchronization
Menu
AGC Low/Middle/High
Day/Night Mode Smart/Color/BW(Black And White)
Backlight Compensation Yes
DWDR Yes
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD Analog Output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40°C To 60°C, Humidity 90% Or Less (Non-Condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Ingress Protection IP66
Material Metal
IR Range Up To 20m
Dimensions 70x154.5 MM
Weight Approx. 400g





What In The Box

  • 1 x Hikvision DS7204HQHI-K1/B 4 Channel Turbo HD Balun DVR
  • 4 x Hikvision DS-2CE16D0T-IRF 2MP IR Bullet Camera
  • 4 x 12V 1A Power Adapter
  • 1 x 1TB CCTV Hard Drive
  • 2 x Hikvision Video Baluns





Warranty
Hikvision DVR - 1 Years Warranty
Hikvision Camera - 1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at Service@accessglobal.com





Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
