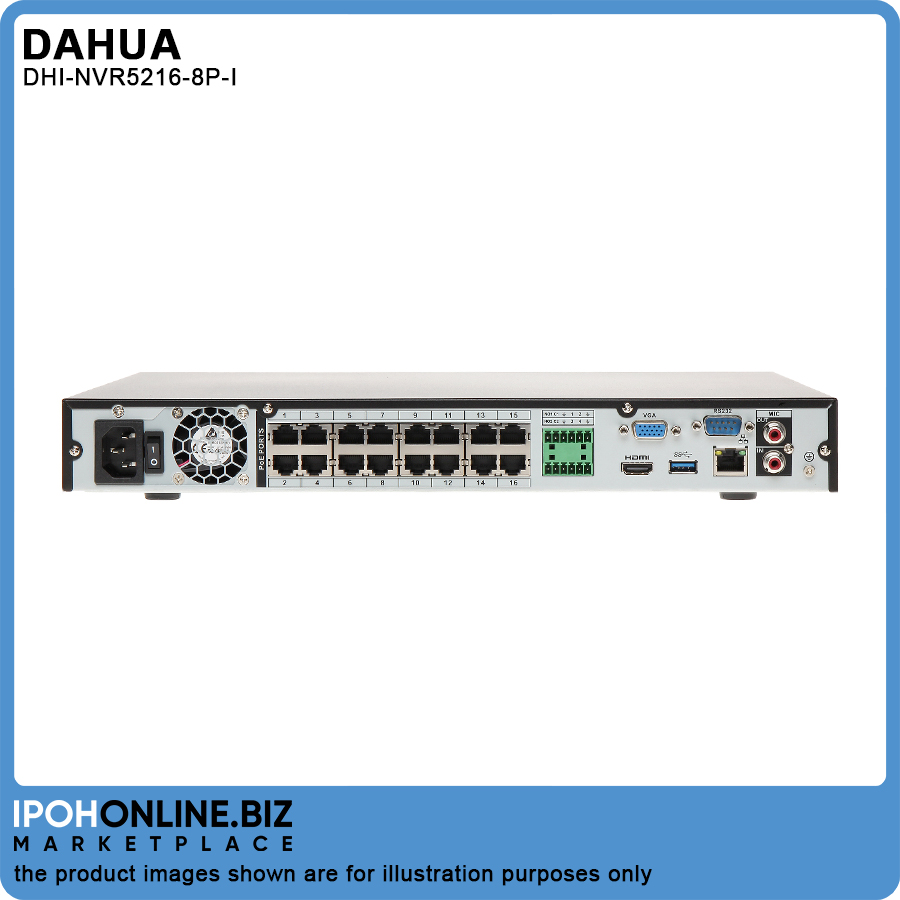

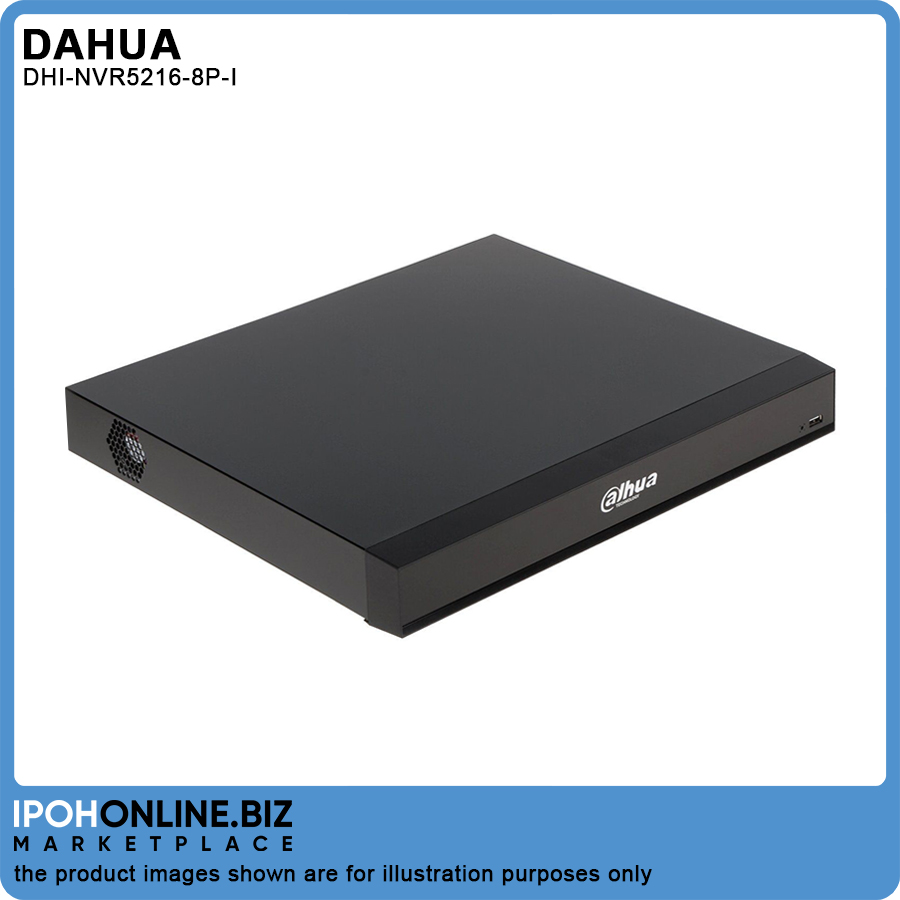

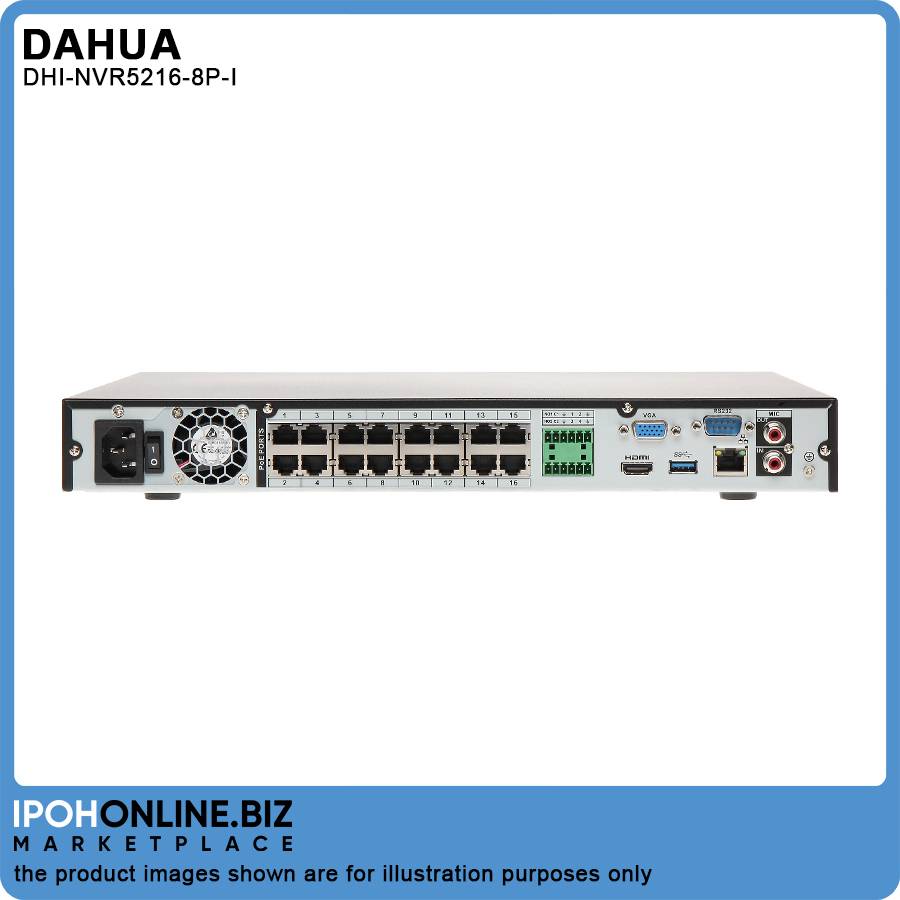

DAHUA DHI-NVR5216-8P-I 16 Channel 1U 8PoE 2HDD WizMind Network Video Recorder
| Price | RM2,688.00 RM2,888.00 RM |
| Product SKU | NVR-DAHUA-DHI-NVR5216-8P-I |
| Brand | Dahua |
| Size (L x W x H) | 48 cm x 45 cm x 20 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- 16 Channel IP Video Access
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- Up To 16 Channel Perimeter Protection
- Up To 4 Channel Video Stream Face Recognition
- Up To 22 Face Pictures/Sec Processing
- Up To 20 Face Databases With 100,000 Face Images In Total
- 1-8 PoE Ports Support ePoE & EoC
Specification
| System | |
| Main Processor | Multi-Core Embedded Processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 16 Channel, 10 IVS Rules For Each Channel |
| Object Classification | Human/Vehicle Secondary Recognition For Tripwire And Intrusion |
| AI Search | Search By Target Classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 22 Face Pictures/Sec Processing (Modeling And Comparing) 4 Channel Video Stream Face Recognition/16 Channel Picture Stream Face Recognition (With FD Camera) |
| Stranger Mode | Detect Strangers' Faces (Not In Device's Face Database). Similarity Threshold Can Be Set Manually |
| AI Search | Up To 8 Target Face Images Search At Same Time, Similarity Threshold Can Be Set For Each Target Face Image |
| Database Management | Up To 20 Face Databases With 100,000 Face Images In Total. Name, Gender, Birthday, Nationality, Address, ID Information Can Be Added To Each Face Picture |
| Database Application | Each Database Can Be Applied To Video Channels Independently |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, Etc |
| Metadata | |
| Face | Gender, Age, Glasses, Beard, Mouth Mask, Expression |
| Vehicle | Plate No., Type, Color, Vehicle Type, Logo, Plate Color, Ornament, Calling, Seatbelt, Region |
| Human Body | Top, Top Color, Bottom, Bottom Color, Hat, Bag, Gender, Age, Umbrella |
| Non-Motor Vehicle | Type, Color, Number Of Passengers, Helmet |
| AI Search | Support Search Target Video By Metadata |
| Audio And Video | |
| IP Camera Input | 16 Channel |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI : 3840x2160, 1920x1080, 1280x1024, 1280x720 VGA : 1920x1080, 1280x1024, 1280x720 |
| Decoding Capability | 4-ch@8MP (30fps), 16-ch@1080P (30fps) |
| Multi-Screen Display | 1/4/8/9/16 |
| Recording | |
| Bandwidth | 320Mbps (160Mbps When AI Function Enabled) |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 Etc |
| Record Mode | Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS) |
| Record Interval | 1-120 Min (Default : 60 Min), Pre-Record : 1-30 Sec, Post-Record : 10-300 Sec |
| Video Detection And Alarm | |
| Trigger Events | Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer And Screen Tips |
| Video Detection | Motion Detection, MD Zones : 396 (22x18), Video Loss, Tampering And Scene Change |
| Alarm Input | 4 Channel |
| Relay Output | 2 Channel |
| Playback And Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD And Exact Search (Accurate To Second) |
| Backup Mode | USB Device/Network |
| Third-Party Support | |
| Third-Party Support | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon And More |
| Network | |
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | 8 Ports (IEEE802.3af/at) 1-8 Ports Support ePoE & EoC |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP Camera, DVR, NVS), P2P |
| Max. User Access | 128 Users |
| Mobile App | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 2 SATA III Ports, Up To 10TB For A Single HDD. The Maximum HDD Capacity Varies With Environment Temperature |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0) |
| RS232 | 1 Port, For PC Communication And Keyboard |
| RS485 | 1 Port, For PTZ Control |
| Electrical | |
| Power Supply | Single, AC100V-240V, 50-60Hz |
| Power Consumption | NVR : <15.6W (Without HDD) PoE : Max 25.5W For Single Port 130W Total Rated Power, 80% Control For Protection |
| Fan | Smart Fan, Automatically Adjust Running Speed |
| Environmental | |
| Operating Conditions | -10ºC To +55ºC (+14ºF To +131ºF), 86-106kpa |
| Storage Conditions | 0ºC To +40ºC (+32ºF To +104ºF), 30-85% RH |
| Construction | |
| Dimensions | 1U, 375.0mm x 327.4mm x 53.0mm |
| Net Weight | 2.70kg (Without HDD) |
| Gross Weight | 4.00kg (Without HDD) |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
What In The Box
- 1 x DAHUA DHI-NVR5216-8P-I 16 Channel 1U 8PoE 2HDD WizMind Network Video Recorder
- 1 x Power Adapter
- 1 x Network Cable
- 2 x Sata Cable
- 1 x Mouse
- 1 x Screw Set
- 1 x User Manual
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
