| Price | RM989.00 RM1,289.00 RM |
| Product SKU | NVR-HIK-DS-7616NI-Q2-SWI-HIK-DS-3E0318P-E/M |
| Brand | Hikvision |
| Size (L x W x H) | 54 cm x 48 cm x 31 cm |
| Availability | Out Of Stock |
- Record from and Manage up to 16 Cameras
- Up to 8MP Recording Resolution
- 16TB HDD Capacity & POE Switch (Available Separately)
- H.265, H.265+, H.264, and H.264+ Codecs
- 16 × 100Mbps PoE ports, 1 × 1000Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250 m transmission distance.
- 6 KV surge protection for PoE ports.
- PoE power management.
- 1000Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.

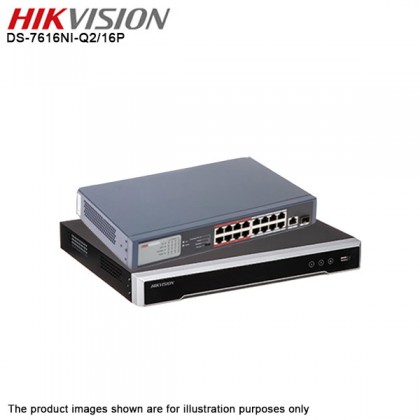

HIKVISION DS-7616NI-Q2 16 Channel CCTV NVR + DS-3E0318P-E/M 16 Port POE Ethernet Switch 1 × 1000Mbps RJ45 + 1 × 1000 Mbps SFP port

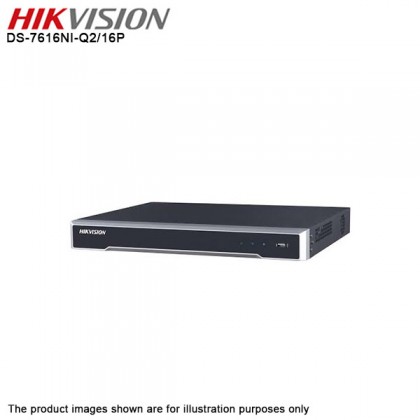

HIKVISION DS-7616NI-Q2 16 Channel CCTV NVR
Specifications
| Video / Audio Input | |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1KΩ) |
| IP Video Input | 16-CH |
| IP Video Input: | Up to 8 MP Resolution |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 80Mbps |
| Video / Audio Output | |
| HDMI Output | 1-CH, Resolution : 4K (3840x2160)/30Hz, 1920x1080P/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: | 16-ch |
| VGA Output | 1-CH, Resolution : 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Decoding | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-CH @ 8MP / 4-CH @ 1080p |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up To 6TB Capacity For Each HDD |
| External Interface | |
| Network Interface | 1RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2, USB2.0 |
| PoE | |
| Supported Standard | AF And AT |
| Interface | 24 Independent 10/100Mbps PoE Ethernet Interfaces |
| General | |
| Power Supply | 12 VDC |
| Consumption (Without Hard Disk And POE) | ≤ 15W |
| Working Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Working Humidity | 10% ~ 90% |
| Chassis | 1U Chassis |
| Dimensions | 385x315x52 MM |
| Weight (Without HDD) | ≤ 1.8 KG (4.0ib) |

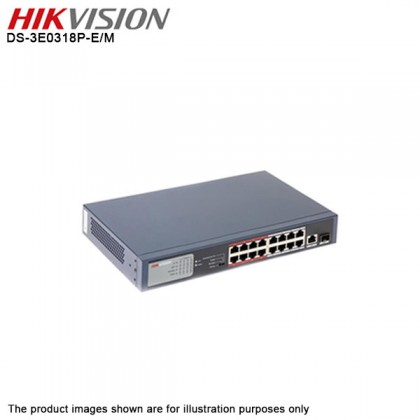

DS-3E0318P-E/M 16 Port POE Ethernet Switch 1 × 1000Mbps RJ45 + 1 × 1000 Mbps SFP port
Specifications
| Ports | |
| 10/100M RJ45 | 16 |
| 10/100/1000M RJ45 | 1 |
| 1000M SFP | 1 independent |
| Port of high priority | Port 1 - 8 |
| Performance | |
| Switching Capacity | 7.2 Gbps |
| Store-and-forward | Supported |
| MAC address table | 4 k |
| MAC address learning | Auto-learning / Auto-aging |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3af, IEEE802.3at |
| Working Mode | Priority, Standard, Isolate, Extend |
| PoE cable core | Supports 8-pin power supply |
| PoE port | 1 - 16 |
| Port max. power | 30 W |
| Switch max. power | 135 W |
| General | |
| Power Supply | 100~240 V AC，50/60 Hz |
| Power Consumption | ≤150w |
| Working Temperature | Operating Temperature: 0 °C ~ 40 °C |
| Working Humidity | Operating Humidity: 10% - 90% RH non-condensing |
| Storage Temperature | Storage Temperature: -40 °C ~ 70 °C |
| Storage Humidity | Storage Humidity: 5% - 90% RH non-condensing |
What In The Box
- 1 x HIKVISION DS-7616NI-Q2 16 Channel CCTV NVR
- 1 x DS-3E0318P-E/M 16 Port POE Ethernet Switch 1 × 1000Mbps RJ45 + 1 × 1000 Mbps SFP port
Warranty
HIKVISION DS-7616NI-Q2 16 Channel CCTV NVR - 1 Years Warranty
DS-3E0318P-E/M 16 Port POE Ethernet Switch 1 × 1000Mbps RJ45 + 1 × 1000 Mbps SFP port - 1 Years Warranty
Local Manufacturer Warranty
Warranty Policy:Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
