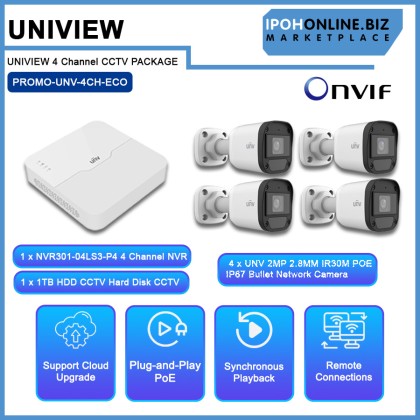

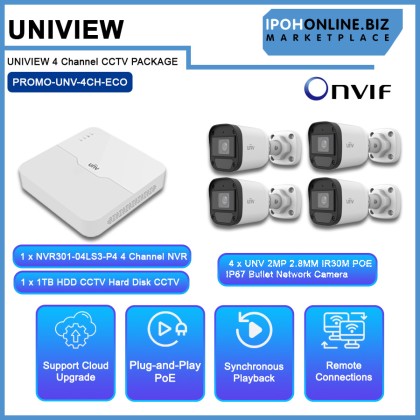

UNIVIEW (UNV) IP ECO series 2MP 4 Channel NVR301-04LS3-P4 Onvif NVR + 4 x UNV 2MP 2.8MM IR30M POE IP67 Bullet Network Camera + 1 x 1TB HDD CCTV Hard Disk CCTV Package
| Price | RM988.00 RM1,088.00 RM |
| Product SKU | PROMO-UNV-4CH-ECO |
| Brand | Uniview |
| Size (L x W x H) | 49 cm x 35 cm x 20 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight

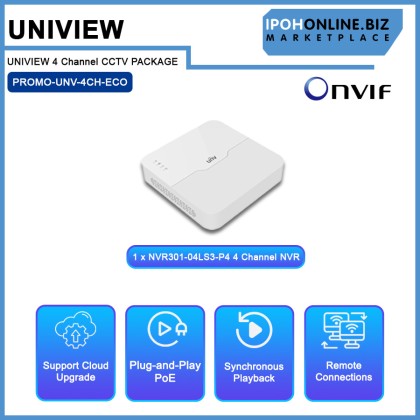

UNV UNIVIEW 4 Channel NVR301-04LS3-P4 Network Video Recorder Support 1 SATA up to 6TB NVR
- Support Ultra 265 / H.265 / H.264 video formats
- 4-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade

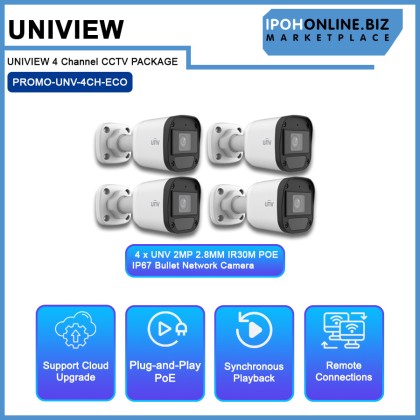

UNV IPC2122LB-AF28-ECO 2MP 2.8MM IR30M POE IP67 Bullet Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- Built-in mic
- Smart IR, up to 30 m (98.4 ft) IR distance
- Day/night functionality
- 2D/3D DNR (digital noise reduction)
- DC 12 V, PoE (IEEE 802.3af) power supply
- IP67 protection
- 3-axis
UNV UNIVIEW 4 Channel NVR301-04LS3-P4 Network Video Recorder Support 1 SATA up to 6TB NVR
- Support Ultra 265 / H.265 / H.264 video formats
- 4-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade
Specifications
| Model | NVR301-04LS3-P4 |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Network Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| HDMI Output Resolution | 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output Resolution | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Live View Display | 1 / 4 |
| Corridor Mode Screen | 3 / 4 |
| Snapshot | FTP / Schedule / Event, 1-ch snapshot up to D1 |
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Decoding Capability | 1 × 4K@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 4 × 1080p@30 |
| SATA Interface | 1 SATA |
| HDD Capacity | Up to 6TB |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection (UMD) |
| VCA Search | Face Search, Behavior Search |
| Smart Intrusion Prevention | 4-ch |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal |
| Network Interface | 1 × RJ45 10M/100M self-adaptive Ethernet |
| USB Interface | 2 × USB2.0 (Rear) |
| RS232 | NA |
| RS485 | NA |
| Alarm In/Out | NA |
| PoE Interface | 4 × RJ45 10M/100M self-adaptive |
| PoE Power | Max 30W per port, Max 54W total |
| PoE Standard | IEEE 802.3at, IEEE 802.3af |
| Power Supply | 48V DC |
| Power Consumption | ≤9W (without HDD) |
| Working Environment | -10°C to +55°C, ≤90% RH (non-condensing) |
| Dimensions | 205mm × 205mm × 46mm |
| Weight | ≤0.6kg (without HDD) |
| Certification | CE, FCC, UL, RoHS, WEEE |
UNV IPC2122LB-AF28-ECO 2MP 2.8MM IR30M POE IP67 Bullet Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- Built-in mic
- Smart IR, up to 30 m (98.4 ft) IR distance
- Day/night functionality
- 2D/3D DNR (digital noise reduction)
- DC 12 V, PoE (IEEE 802.3af) power supply
- IP67 protection
- 3-axis
Specifications
| Model | IPC2122LB-AF28-ECO |
| Camera Type | 2MP Fixed Dual Light Bullet Network Camera |
| Protection | IP67 |
| Material | Graphene + Plastic |
| Dimensions | 140 × 61 × 65 mm (L × W × H) |
| Weight | 0.15 kg |
| Working Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Humidity | ≤95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
| Web Client Language | English |
| Max Resolution | 2 MP (1920 × 1080) |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1–1/100000 s |
| Adjustment Angle | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| S/N Ratio | > 52 dB |
| WDR | DWDR |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H/V/D) | 85.1° / 46.6° / 95.5° |
| Lens Type | Fixed |
| Detect | 51.4 m |
| Observe | 20.6 m |
| Recognize | 10.3 m |
| Identify | 5.1 m |
| Supplemental Light | Dual Light |
| IR Distance | 30 m |
| Warm Light Distance | 15 m |
| Wavelength | 850 nm |
| IR Control | Auto/Manual |
| Compression | Ultra 265, H.265, H.264 |
| H.264 Profile | Baseline / Main / High |
| Main Stream | 1080P@30fps, 720P@30fps |
| Sub Stream | 640×360@30fps, 2CIF@30fps, CIF@30fps |
| Bit Rate | 128 Kbps – 6144 Kbps |
| Video Stream | Dual streams |
| OSD | Up to 4 |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital defog |
| Motion Detection | Supported |
| Audio Detection | Supported |
| Human Detection | Human Body Detection 2.0 |
| Compression | G.711U / G.711A |
| Bitrate | 64 Kbps |
| Sampling Rate | 8 kHz |
| Built-in Mic | Supported |
| Two-way Audio | N/A |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP |
| ONVIF | Profile S, Profile T |
| Users | Up to 32 users |
| User Levels | Administrator / Common user |
| Security | Password protection, RTSP/HTTP Digest Auth, ONVIF Auth, ARP protection |
| Network Port | 1 × RJ45 (10/100M Base-TX) |
| Power Supply | PoE (IEEE 802.3af) |
| Power Consumption | Max. 3.5 W |
What's in the box
- 4 x IPC2122LB-AF28-ECO Bullet Network Camera
- 1 x NVR301-04LS3-P4 Network Video Recorder
- 1 x 1TB HDD CCTV Hard Disk CCTV
Warranty
No Warranty
