Description
Highlight

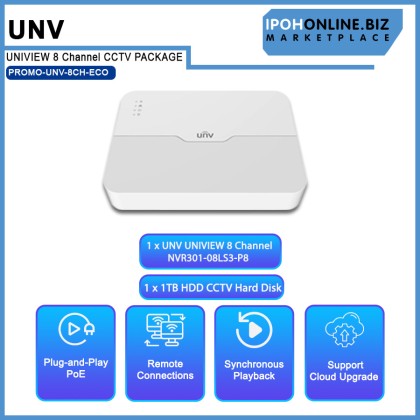

UNV UNIVIEW 8 Channel NVR301-08LS3-P8 Network Video Recorder Support 1 SATA up to 6TB NVR
- Support Ultra 265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade

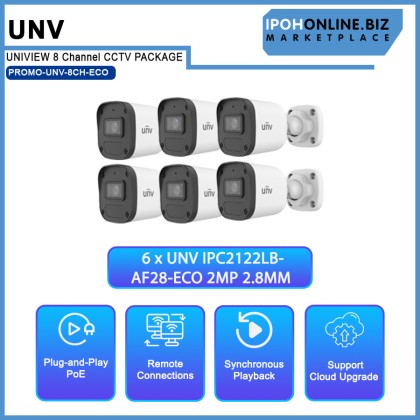

UNV IPC2122LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Bullet Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- 2D/3D DNR (digital noise reduction)
- ROI (region of interest) ensures image quality in areas of interest with low bandwidth
- Smart IR, up to 30 m (98.4 ft.) IR distance
- Built-in mic
- Wide temperature range: -30 to 60 (-22 to 140)
- Supports PoE power supply

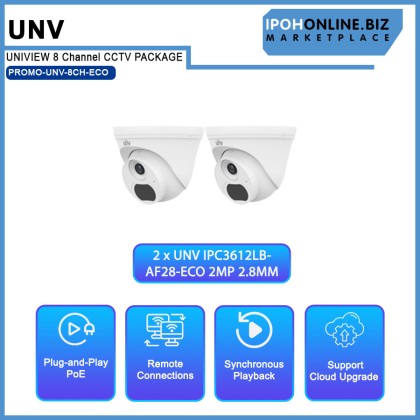

UNV IPC3612LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Dome Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps
- Smart dual-light ensures high quality image
- Ultra 265, H.265, H.264
- 2D/3D DNR (digital noise reduction)
- ROI (region of interest) ensures image quality in areas of interest with low bandwidth
- Built-in mic
- Wide temperature range: 30 to 60 (22 to 140 )
- Supports PoE
UNV UNIVIEW 8 Channel NVR301-08LS3-P8 Network Video Recorder Support 1 SATA up to 6TB NVR
- Support Ultra 265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade
Specification
| Model |
NVR301-08LS3-P8 |
| Recorder Type |
Network Video Recorder |
| Power Supply |
52V DC |
| Power Consumption |
≤9 W (without HDD) |
| Working Environment |
-10°C ~ +55°C, ≤90% RH (non-condensing) |
| Dimensions (W×D×H) |
270 × 205 × 46 mm |
| Weight (without HDD) |
≤0.8 kg |
| IP Video Input |
8-ch |
| Incoming Bandwidth |
64 Mbps |
| Outgoing Bandwidth |
48 Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP |
| HDMI Output |
4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output |
1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution |
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output |
1-ch, RCA |
| Audio Compression |
G.711A / G.711U |
| Synchronous Playback |
8-ch |
| Liveview Display |
1 / 4 / 6 / 8 / 9 |
| Corridor Mode Screen |
3 / 4 / 5 / 7 / 9 |
| Snapshot |
FTP / Schedule / Event |
| Snapshot Resolution |
1-ch, up to D1 |
| Format |
Ultra 265 / H.265 / H.264 |
| Liveview/Playback |
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability |
1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 4×1080p@30, 8×720p@30 |
| SATA |
1 SATA interface |
| Capacity |
Up to 6TB |
| VCA Detection |
Intrusion, Cross Line |
UNV IPC2122LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Bullet Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- 2D/3D DNR (digital noise reduction)
- ROI (region of interest) ensures image quality in areas of interest with low bandwidth
- Smart IR, up to 30 m (98.4 ft.) IR distance
- Built-in mic
- Wide temperature range: -30 to 60 (-22 to 140)
- Supports PoE power supply
Specification
| Model |
IPC2122LB-AF28-ECO |
| Camera Type |
2MP Fixed Dual Light Bullet Network Camera |
| Protection |
IP67 |
| Material |
Graphene + Plastic |
| Dimensions |
140 × 61 × 65 mm (L × W × H) |
| Weight |
0.15 kg |
| Working Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
N/A |
| Web Client Language |
English |
| Max Resolution |
2 MP (1920 × 1080) |
| Sensor |
1/3.0" CMOS |
| Min. Illumination |
Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1–1/100000 s |
| Adjustment Angle |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| S/N Ratio |
> 52 dB |
| WDR |
DWDR |
| Focal Length |
2.8 mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H/V/D) |
85.1° / 46.6° / 95.5° |
| Lens Type |
Fixed |
| Detect |
51.4 m |
| Observe |
20.6 m |
| Recognize |
10.3 m |
| Identify |
5.1 m |
| Supplemental Light |
Dual Light |
| IR Distance |
30 m |
| Warm Light Distance |
15 m |
| Wavelength |
850 nm |
| IR Control |
Auto/Manual |
| Compression |
Ultra 265, H.265, H.264 |
| H.264 Profile |
Baseline / Main / High |
| Main Stream |
1080P@30fps, 720P@30fps |
| Sub Stream |
640×360@30fps, 2CIF@30fps, CIF@30fps |
| Bit Rate |
128 Kbps – 6144 Kbps |
| Video Stream |
Dual streams |
| OSD |
Up to 4 |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area |
| Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal / Vertical / Horizontal / 180° |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital defog |
| Motion Detection |
Supported |
| Audio Detection |
Supported |
| Human Detection |
Human Body Detection 2.0 |
| Compression |
G.711U / G.711A |
| Bitrate |
64 Kbps |
| Sampling Rate |
8 kHz |
| Built-in Mic |
Supported |
| Two-way Audio |
N/A |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP |
| ONVIF |
Profile S, Profile T |
| Users |
Up to 32 users |
| User Levels |
Administrator / Common user |
| Security |
Password protection, RTSP/HTTP Digest Auth, ONVIF Auth, ARP protection |
| Network Port |
1 × RJ45 (10/100M Base-TX) |
| Power Supply |
PoE (IEEE 802.3af) |
| Power Consumption |
Max. 3.5 W |
UNV IPC3612LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Dome Network Camera
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps
- Smart dual-light ensures high quality image
- Ultra 265, H.265, H.264
- 2D/3D DNR (digital noise reduction)
- ROI (region of interest) ensures image quality in areas of interest with low bandwidth
- Built-in mic
- Wide temperature range: 30 to 60 (22 to 140 )
- Supports PoE
Specification
| Model |
IPC3612LB-AF28-ECO |
| Camera Type |
2MP Fixed IR Turret Network Camera |
| Max Resolution |
2 MP (1920 × 1080) |
| Sensor |
1/3.0" CMOS |
| Min. Illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1–1/100000 s |
| Adjustment Angle |
Pan: 0°–360°, Tilt: 0°–80°, Rotate: 0°–360° |
| S/N Ratio |
> 52 dB |
| WDR |
DWDR |
| Focal Length |
2.8 mm |
| Iris Type |
Fixed |
| Iris |
F2.0 |
| Field of View (H/V/D) |
87.8° / 48.9° / 99.0° |
| Lens Type |
Fixed |
| Detect |
51.4 m |
| Observe |
20.6 m |
| Recognize |
10.3 m |
| Identify |
5.1 m |
| Supplemental Light |
IR |
| IR Distance |
30 m |
| Wavelength |
850 nm |
| IR Control |
Auto/Manual |
| Compression |
Ultra 265, H.265, H.264 |
| H.264 Profile |
Baseline, Main, High |
| Main Stream |
1080P@30fps, 720P@30fps |
| Sub Stream |
640×360@30fps, 2CIF@30fps, CIF@30fps |
| Bit Rate |
128 Kbps – 6144 Kbps |
| Video Stream |
Dual streams |
| ROI |
Up to 8 areas |
| Privacy Mask |
Up to 4 areas |
| OSD |
Up to 4 |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area |
| Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal, Vertical, Horizontal, 180° |
| HLC / BLC |
Supported |
| Defog |
Digital defog |
| Dewarping |
N/A |
| Image Stabilization |
N/A |
| Motion Detection |
Supported |
| Audio Detection |
Supported |
| Human Detection |
Human Body Detection 2.0 |
| Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Sampling Rate |
8 kHz |
| Two-way Audio |
N/A |
| Built-in Mic |
Supported |
| Built-in Speaker |
N/A |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP |
| ONVIF |
Profile S, Profile T |
| Users |
Up to 32 users |
| User Levels |
Administrator, Common user |
| Security |
Password protection, RTSP/HTTP Digest Auth, ONVIF Auth, ARP protection |
| Network Port |
1 × RJ45 (10/100M Base-TX) |
| Edge Storage |
N/A |
| Power Supply |
PoE (IEEE 802.3af) |
| Power Consumption |
Max. 2.5 W |
| Surge Protection |
4 KV |
| Power Interface |
N/A |
| Dimensions |
Ø118 mm × 100 mm |
| Weight |
0.19 kg |
| Material |
Plastic |
| Working Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH (non-condensing) |
| EMC |
CE-EMC, FCC Part 15 B |
| Safety |
CE LVD (EN 62368-1) |
| Environmental |
RoHS, WEEE |
| Reset Button |
N/A |
| Web Client Language |
English |

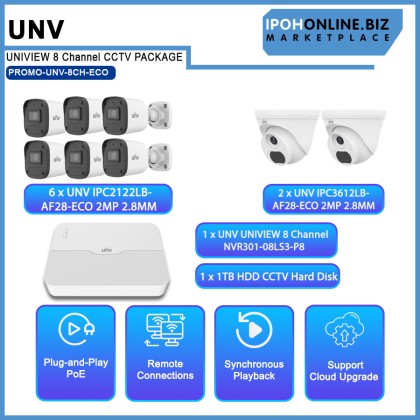

What's in the box
- 1 x UNV UNIVIEW 8 Channel NVR301-08LS3-P8 Network Video Recorder Support 1 SATA up to 6TB NVR
- 6 x UNV IPC2122LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Bullet Network Camera
- 2 x UNV IPC3612LB-AF28-ECO 2MP 2.8MM IR20M POE IP67 Dome Network Camera
- 1 x 1TB HDD CCTV Hard Disk
Warranty
No Warranty
