Description
Highlight
- Plug-and-Play PoE
- Remote Connections
- Synchronous Playback
- Support Cloud Upgrade
Features
- Plug-and-Play PoE
- Remote Connections
- Synchronous Playback
- Support Cloud Upgrade

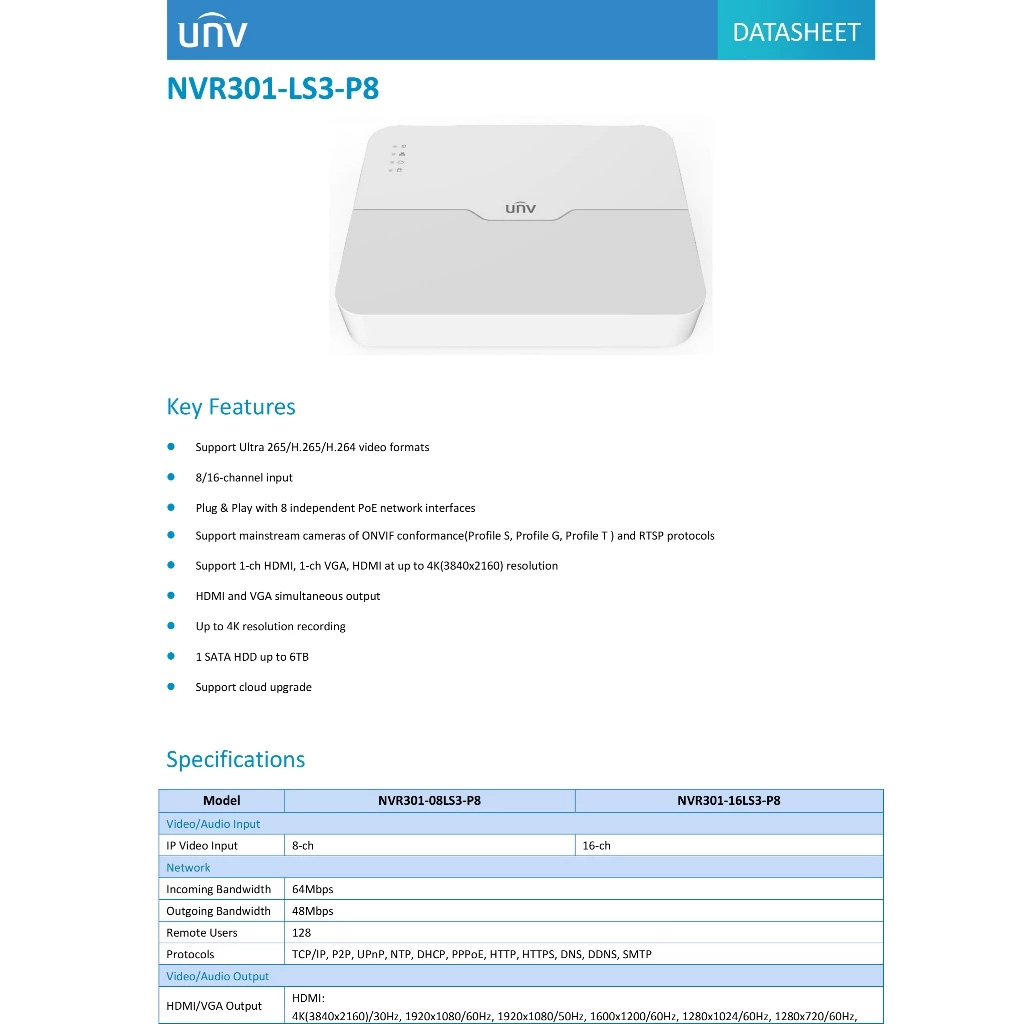

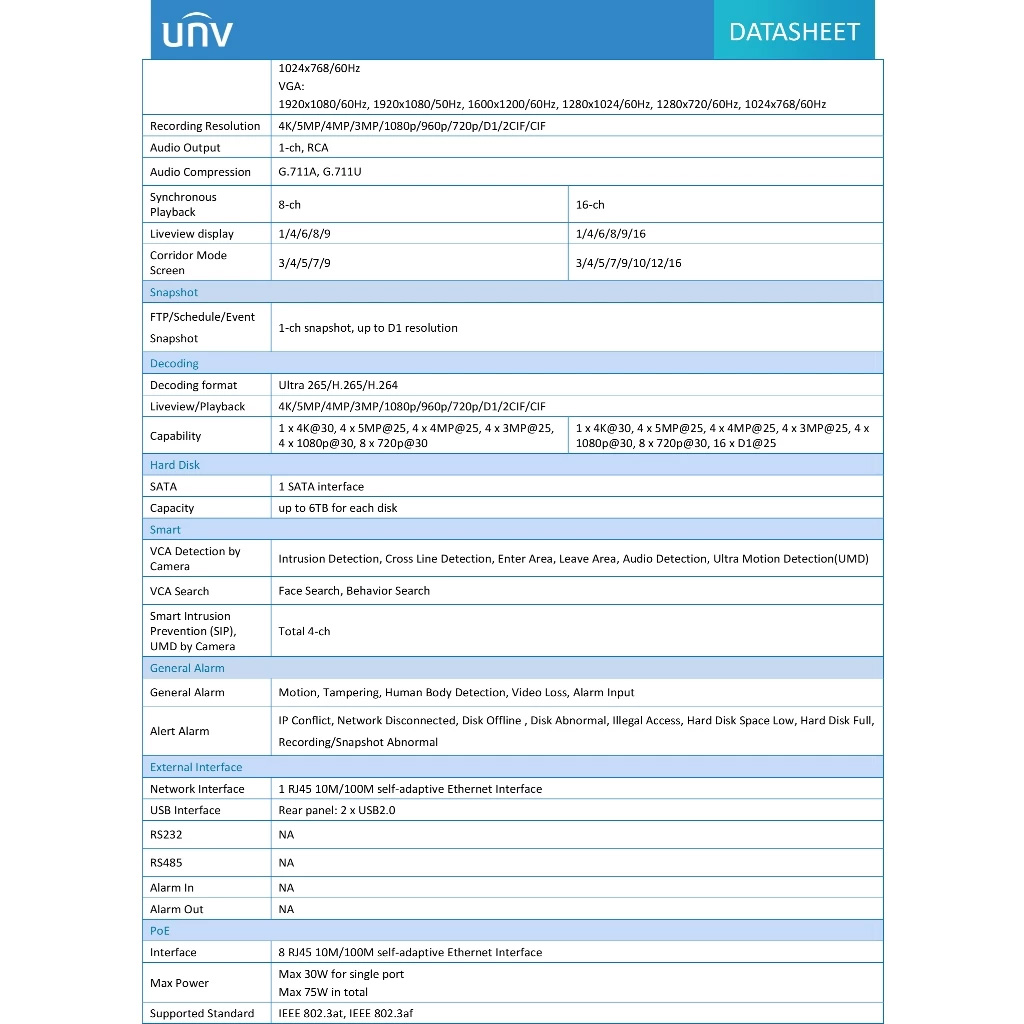

Specification
| Model | NVR301-08LS3-P8 |
| Brand | UNV / Uniview |
| Type | Network Video Recorder (NVR) |
| Channels | 8-channel IP video input |
| Video Compression | Ultra 265 / H.265 / H.264 |
| PoE Ports | 8 × RJ45 PoE ports |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Output | Max 30 W per port, Max 75 W total |
| Storage Interface | 1 × SATA |
| Max HDD Capacity | Up to 6 TB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Video Output | 1 × HDMI (up to 4K), 1 × VGA (up to 1080p) |
| Audio Output | 1 × RCA |
| Recording Resolution | Up to 8 MP |
| Playback | Up to 8-channel synchronous playback |
| Decoding Capacity | 1×4K@30fps, 1×5MP@30fps, 2×4MP@30fps, 4×3MP@25fps, 4×1080p@30fps, 8×720p@30fps |
| USB Interface | 2 × USB 2.0 |
| Protocols Supported | ONVIF, RTSP, P2P, NTP, DHCP, UPnP |
| Remote Access | Web, mobile app, CMS |
| Power Supply | 52 V DC |
| Power Consumption | ≤ 9 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | ≤ 90% (non-condensing) |

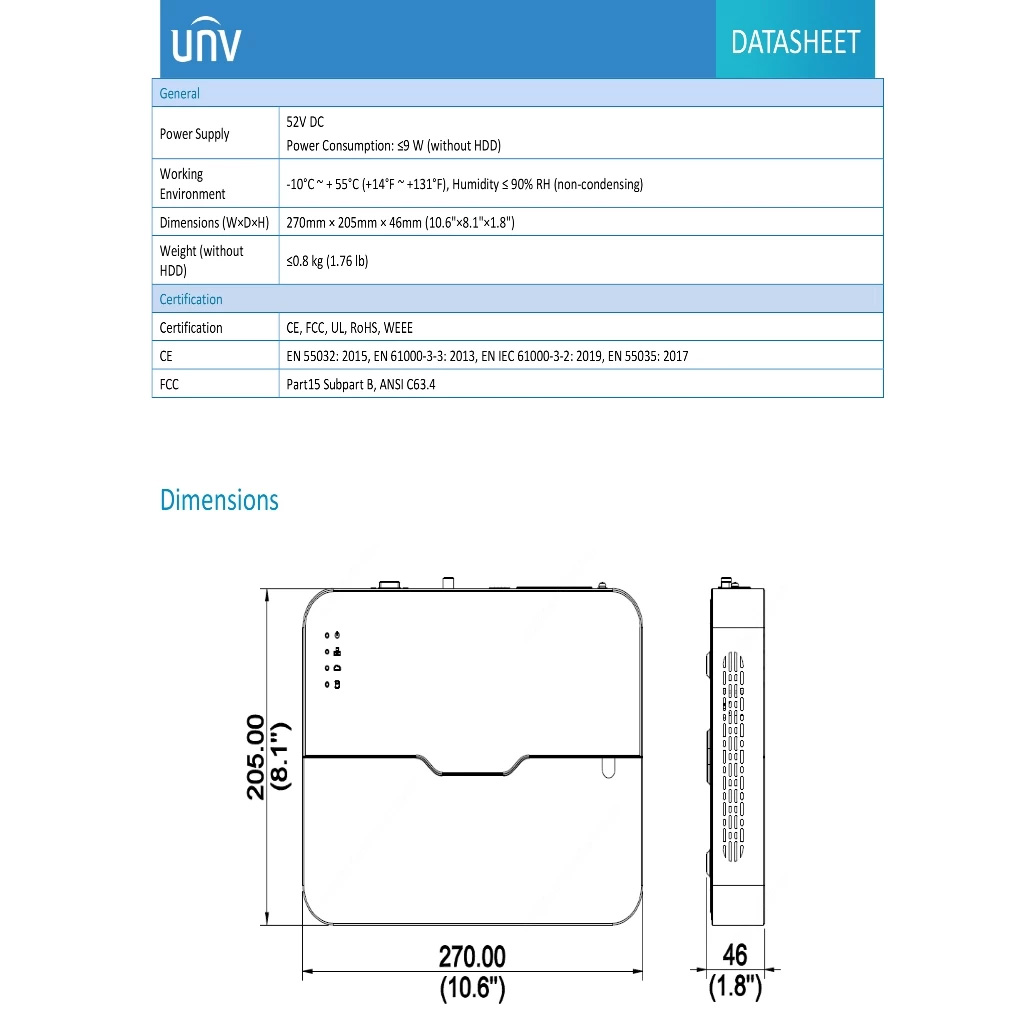

| Dimensions | 270 × 205 × 46 mm |
| Weight | ≤ 0.8 kg |
What's in the box
- 1 x Network Video Recorder (NVR) unit
- 1 x Power adapter / power cable
- 1 x Ethernet (LAN) cable — often included for setup
- 1 x Mouse (USB)
- 1 x Quick start guide / user manual
Warranty
3 Years Warranty
Local Manufacturer Warranty
