| Price | RM1,750.00 RM2,050.00 RM |

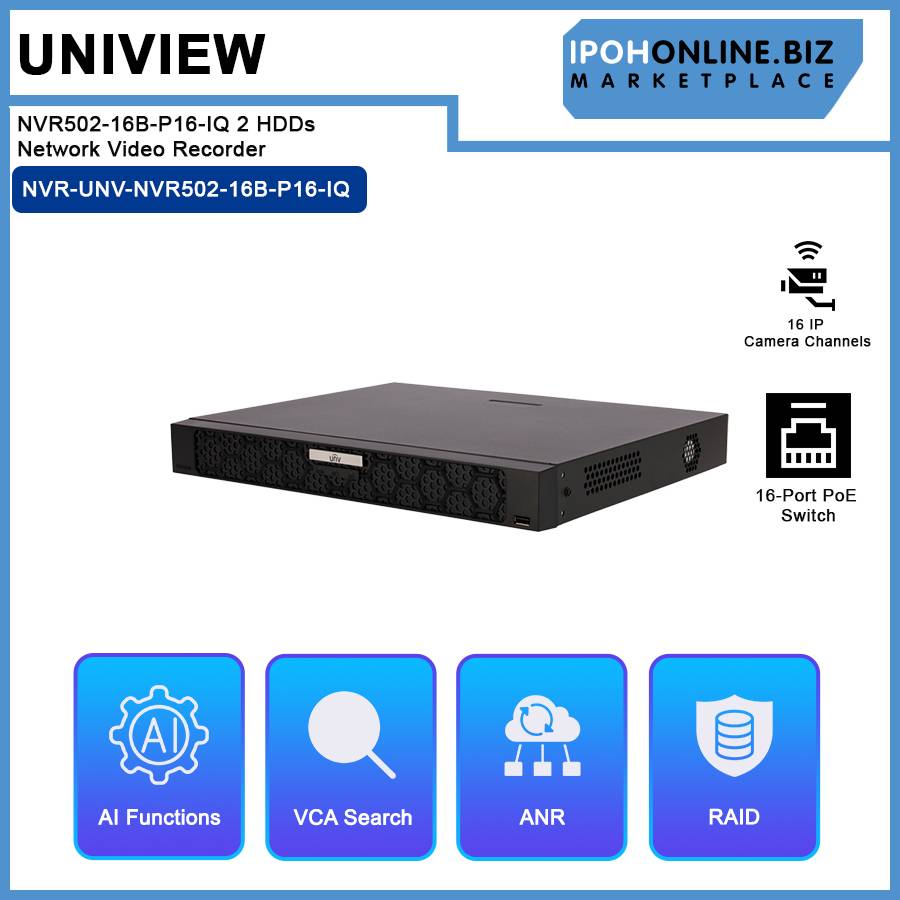

| Product SKU | NVR-UNV-NVR502-16B-P16-IQ |
| Brand | Uniview |
| Size (L x W x H) | 58 cm x 45 cm x 17 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- Supports up to 16 IP camera channels.
- Built-in 16-port PoE switch for simplified camera deployment.
- Supports recording up to 16MP resolution.
- Advanced Ultra H.265, H.265, and H.264 video compression.
- 320 Mbps incoming bandwidth (AI disabled).
- AI-powered Smart Intrusion Prevention (SIP) with human, vehicle, and two-wheeled vehicle detection.
- Ultra Motion Detection (UMD) with intelligent human and vehicle classification.
- Supports facial recognition with up to 50,000 face images.
- Supports License Plate Recognition (LPR) compatible cameras.
- AI functions including temperature detection, fire detection, smoke detection, cigarette smoke detection, and people counting.
- Supports VCA Search including vehicle search, people counting reports, and heat mapping.
- 4K HDMI and VGA simultaneous video outputs.
- Supports ANR (Automatic Network Replenishment).
- Supports RAID for enhanced data protection.
- Supports ONVIF and RTSP protocols.
- Accessible via Web Interface, CMS software, Smartphone App, and NVR.
- Supports POS integration.
- Dual 3.5-inch SATA HDD bays, supporting up to 16TB per drive.
- Multiple USB ports for backup and peripheral connectivity.

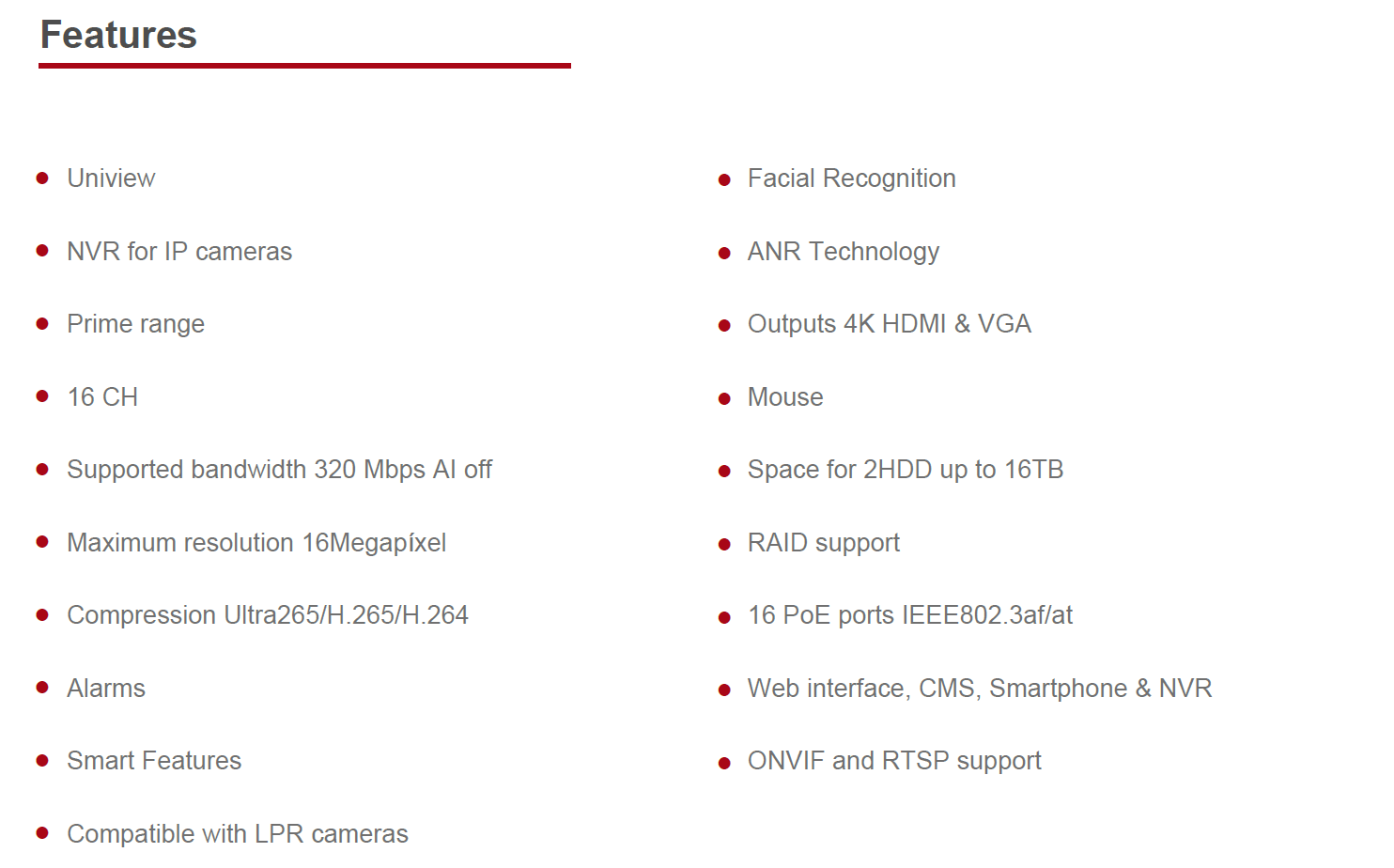

Features
- Supports up to 16 IP camera channels.
- Built-in 16-port PoE switch for simplified camera deployment.
- Supports recording up to 16MP resolution.
- Advanced Ultra H.265, H.265, and H.264 video compression.
- 320 Mbps incoming bandwidth (AI disabled).
- AI-powered Smart Intrusion Prevention (SIP) with human, vehicle, and two-wheeled vehicle detection.
- Ultra Motion Detection (UMD) with intelligent human and vehicle classification.
- Supports facial recognition with up to 50,000 face images.
- Supports License Plate Recognition (LPR) compatible cameras.
- AI functions including temperature detection, fire detection, smoke detection, cigarette smoke detection, and people counting.
- Supports VCA Search including vehicle search, people counting reports, and heat mapping.
- 4K HDMI and VGA simultaneous video outputs.
- Supports ANR (Automatic Network Replenishment).
- Supports RAID for enhanced data protection.
- Supports ONVIF and RTSP protocols.
- Accessible via Web Interface, CMS software, Smartphone App, and NVR.
- Supports POS integration.
- Dual 3.5-inch SATA HDD bays, supporting up to 16TB per drive.
- Multiple USB ports for backup and peripheral connectivity.
Specifications
| Brand | Uniview |

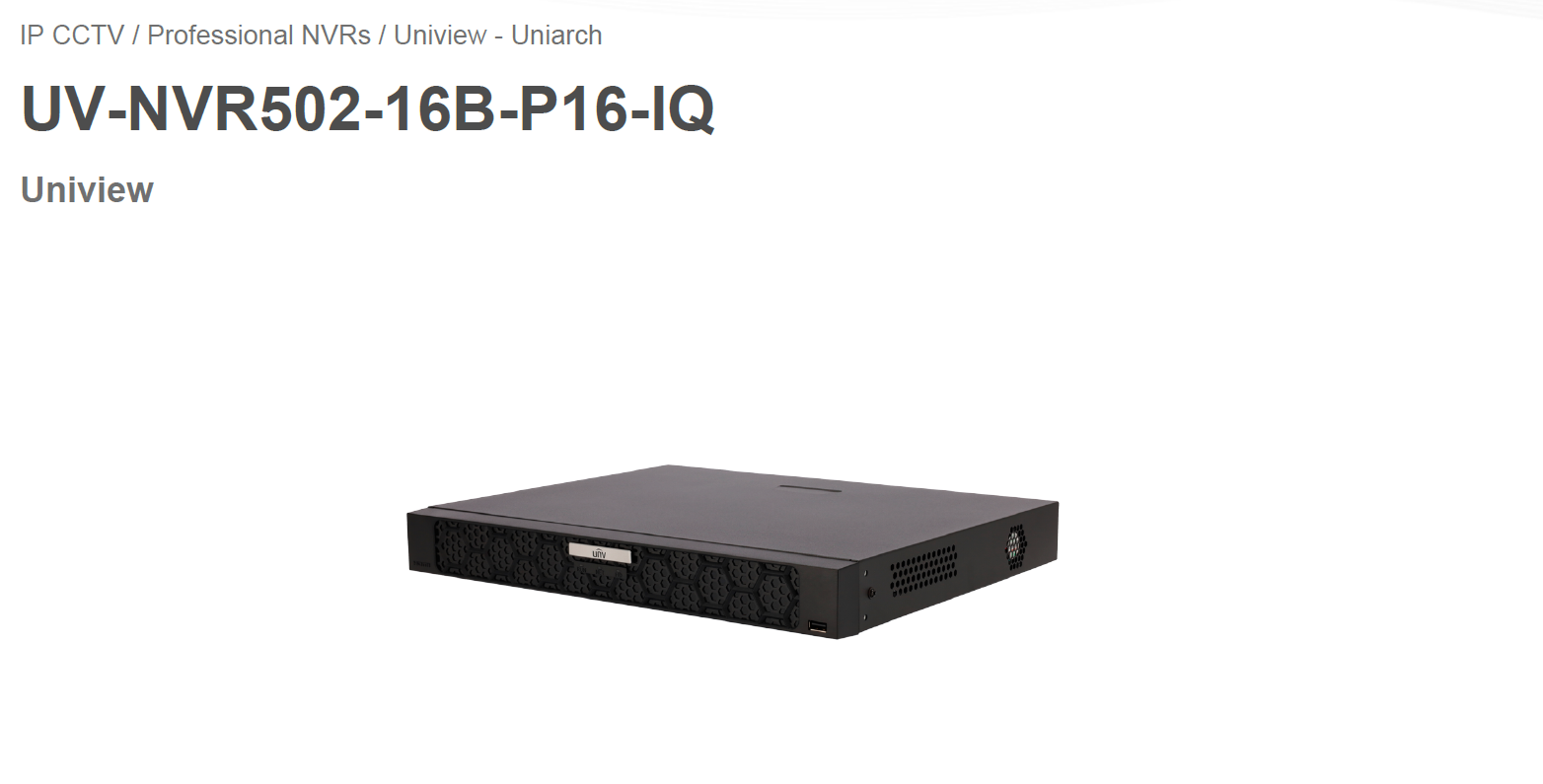

| Model | UV-NVR502-16B-P16-IQ |
| Product Type | Network Video Recorder (NVR) |
| Series | Prime |
| IP Camera Channels | 16 Channels |
| PoE Ports | 16 × IEEE 802.3af/at PoE (Max. 130W) |
| Compatible Cameras | Uniview, ONVIF |
| Maximum Recording Resolution | 16MP |
| Video Compression | Ultra H.265 / H.265 / H.264 |
| Incoming Bandwidth | 320 Mbps (AI Off), 160 Mbps (AI On) |
| Outgoing Bandwidth | 160 Mbps |
| Recording Modes | Manual, Scheduled, Motion Detection |

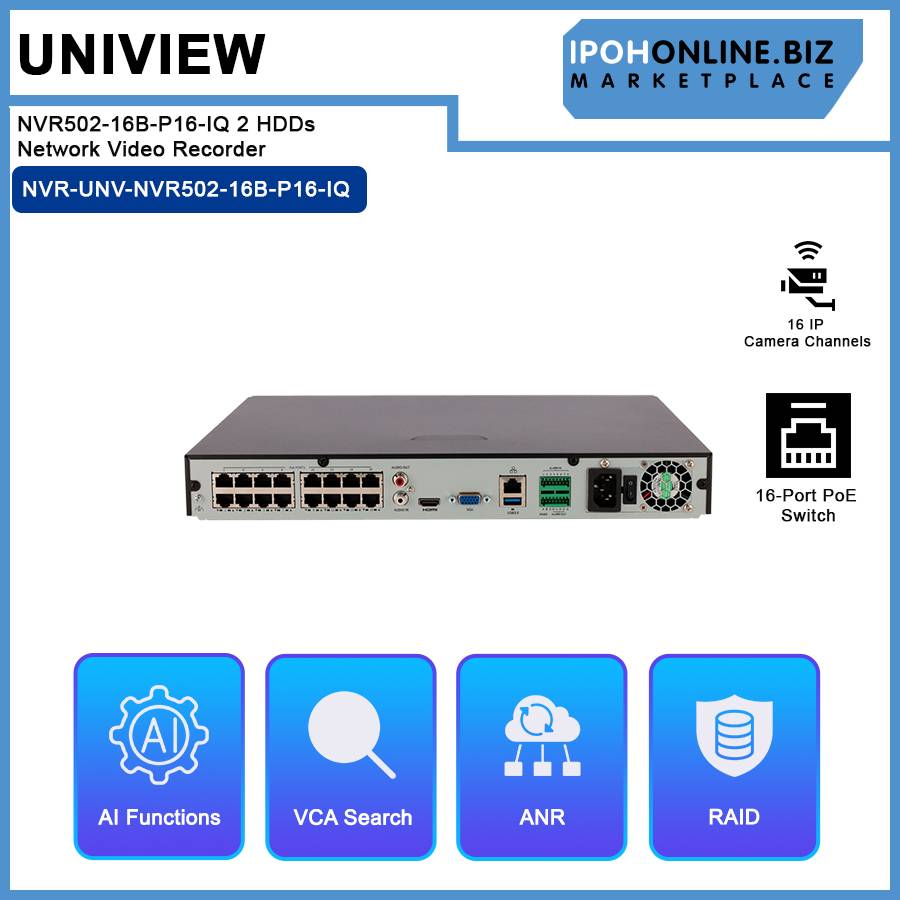

| Video Outputs | 1 × HDMI (4K), 1 × VGA |
| HDMI Resolution | Up to 3840 × 2160 @ 30Hz |
| VGA Resolution | Up to 1920 × 1080 @ 60Hz |
| Audio | 1 Audio Input, 1 RCA Audio Output |
| Intelligent Features | SIP (Human/Vehicle Detection), UMD, Facial Recognition, Temperature Detection, People Counting, Video Metadata, Traffic Monitoring |
| Facial Recognition | Up to 1 Channel |
| Face Database | 16 Lists, Up to 50,000 Face Images |
| Vehicle Database | Up to 5 Lists, 25,000 Images Total |
| VCA Search | Vehicle Search, Non-motorized Vehicle Search, People Counting Report, Heat Map |
| POS Function | Supported |
| General Alarms | Blur Detection, Scene Change, Abandoned Object, Removed Object, Auto Tracking, Tampering, Video Loss, Alarm & Audio Input |
| Alarm Interface | 8 Alarm Inputs, 2 Relay Outputs |
| ANR Function | Supported |
| Internal Storage | 2 × 3.5" SATA HDD Bays |
| Maximum HDD Capacity | Up to 16TB per Drive (HDD Not Included) |
| RAID | Supported |
| External Backup | USB Flash Drive / USB HDD |
| USB Ports | Front: 1 × USB 2.0; Rear: 1 × USB 3.0, 1 × USB 2.0 |
| Network Interface | 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Power Supply | AC 100–240V |
| Power Consumption | ≤12W (Without HDD) |
| Dimensions (W × D × H) | 380 × 315 × 53 mm |
| Weight | 2 kg |
What's In The Box?
- 1 × Recorder
- 1 × USB Mouse
- 1 × Power Supply
- 1 × SATA Cables
- 1 × Mounting Screws
- 1 × Quick Guide
Warranty
3 Year Warranty
Local Manufacturer Warranty
