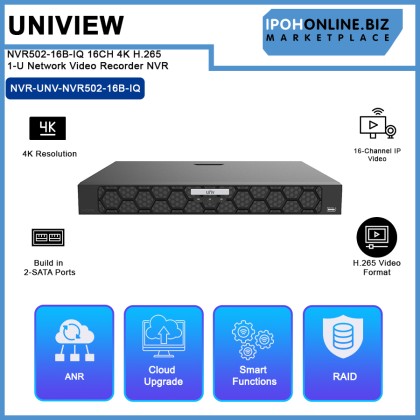

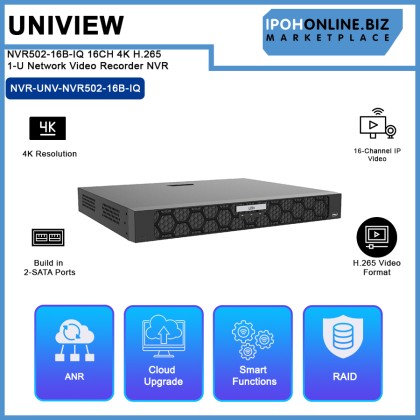

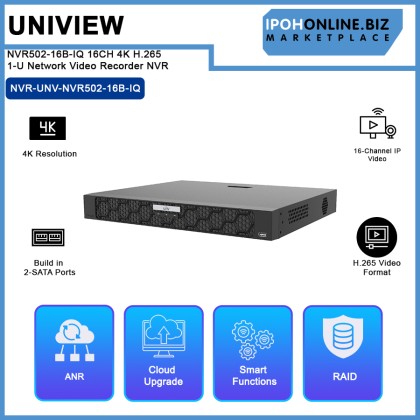

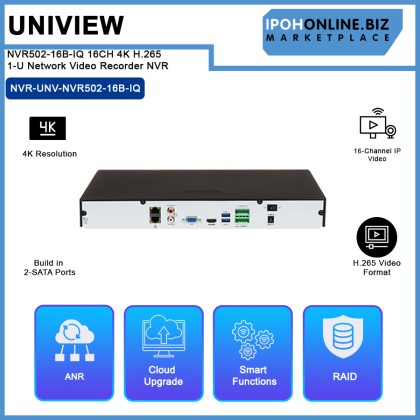

UNIVIEW NVR502-16B-IQ Network 16CH 4K H.265 Build in 2-SATA Ports 1-U Network Video Recorder NVR
| Price | RM1,400.00 RM2,000.00 RM |
| Product SKU | NVR-UNV-NVR502-16B-IQ |
| Brand | Uniview |
| Size (L x W x H) | 58 cm x 45 cm x 16 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- Supports Ultra H.265/H.265/H.264 video formats.
- 16-channel IP video input.
- Supports mainstream cameras with ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols.
- Supports 1-ch HDMI and 1-ch VGA output.
- HDMI supports up to 4K (3840 × 2160) resolution.
- Supports HDMI and VGA independent output.
- Supports recording resolution up to 16 Megapixels.
- ANR technology enhances storage reliability when the network is disconnected.
- Supports cloud upgrade.
- Supports smart functions including face detection, vehicle detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), people counting, video metadata and traffic monitoring.
- Supports RAID 1 disk array and redundant storage.
- Supports up to 16TB per HDD with two SATA interfaces.

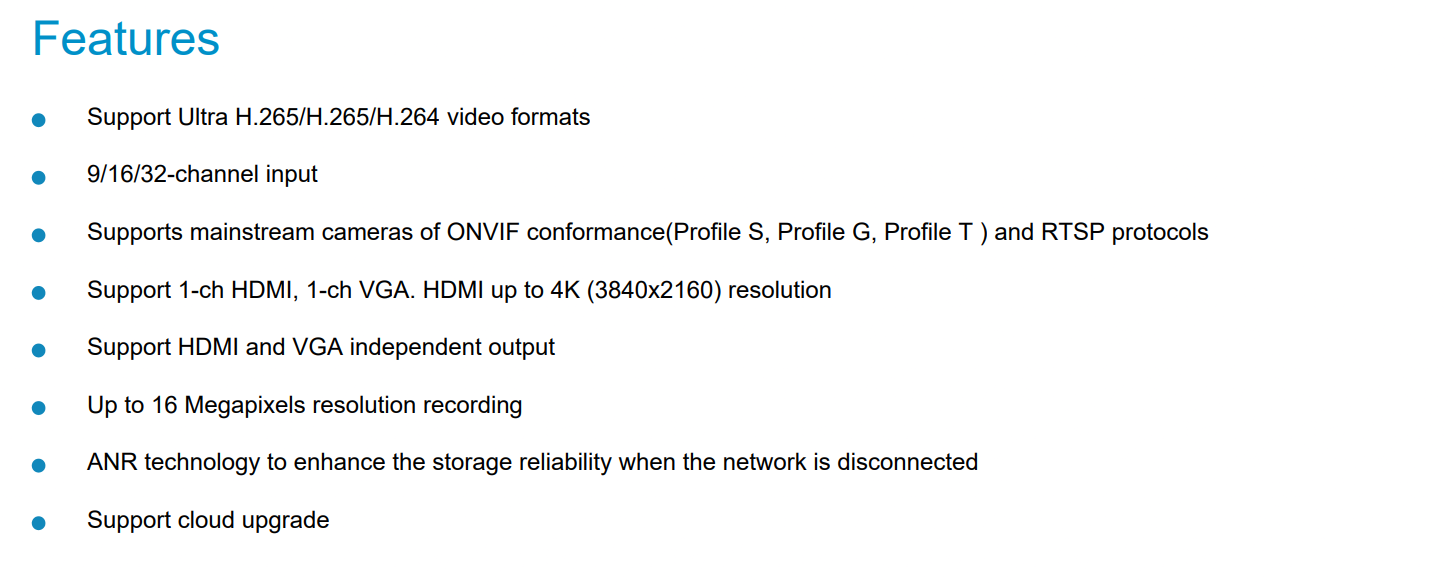

Features
- Supports Ultra H.265/H.265/H.264 video formats.
- 16-channel IP video input.
- Supports mainstream cameras with ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols.
- Supports 1-ch HDMI and 1-ch VGA output.
- HDMI supports up to 4K (3840 × 2160) resolution.
- Supports HDMI and VGA independent output.
- Supports recording resolution up to 16 Megapixels.
- ANR technology enhances storage reliability when the network is disconnected.
- Supports cloud upgrade.
- Supports smart functions including face detection, vehicle detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), people counting, video metadata and traffic monitoring.
- Supports RAID 1 disk array and redundant storage.
- Supports up to 16TB per HDD with two SATA interfaces.
Specifications
| Decoding Description | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 |
| Decoding Capability Description | |
| Resolution Limitation / Independent Output | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network Description | |
| Incoming Bandwidth | Smart Off: 320MbpsSmart On: 160Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; IPv6; IPv4 |
| Browser (Plugin) | Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
| Video/Audio Input Description | |
| IP Video Input | 16-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output Description | |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Two-way Audio Description | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot Description | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to 4K resolution |
| Recording Description | |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Smart Description | |
| VCA Detection by IPC | Face Detection; face detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| Smart by NVR | Face Detection; face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection (UMD) |
| VCA Search | Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map; SmartSearch+; AcuSearch |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR | 4-ch |
| UMD by NVR | 8-ch |
| Capacity of Snapshot Records | 2 millions records for face snapshot; 2 millions records for vehicle snapshot; 3 millions records for SIP; 2 millions records for video Metadata |
| Alarm Description | |
| General Alarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded |
| GUI Language Description | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk Description | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| External Interface Description | |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Supply | DC 12V/3A |
| Power Switch | Support |
| Working Environment Description | |
| Working Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions Description | |
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
| Height | 1U |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification Description | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
What's In The Box?
- 1 x 16-channel recorder
- 1 x Power adapter
- 1 x SATA cable
- 1 x Hard drive mounting screws
- 1 x USB mouse
Warranty
3 Year Warranty
Local Manufacturer Warranty
