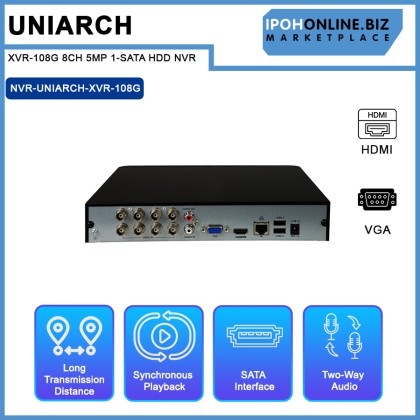

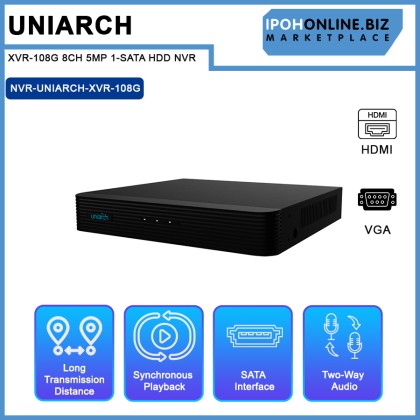

UNIARCH XVR-108G 8CH 5MP 1-SATA HDD NVR

Price	RM319.00 RM419.00 RM
Product SKU	NVR-UNIARCH-XVR-108G
Brand	OEM
Size (L x W x H)	41 cm x 31 cm x 13 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

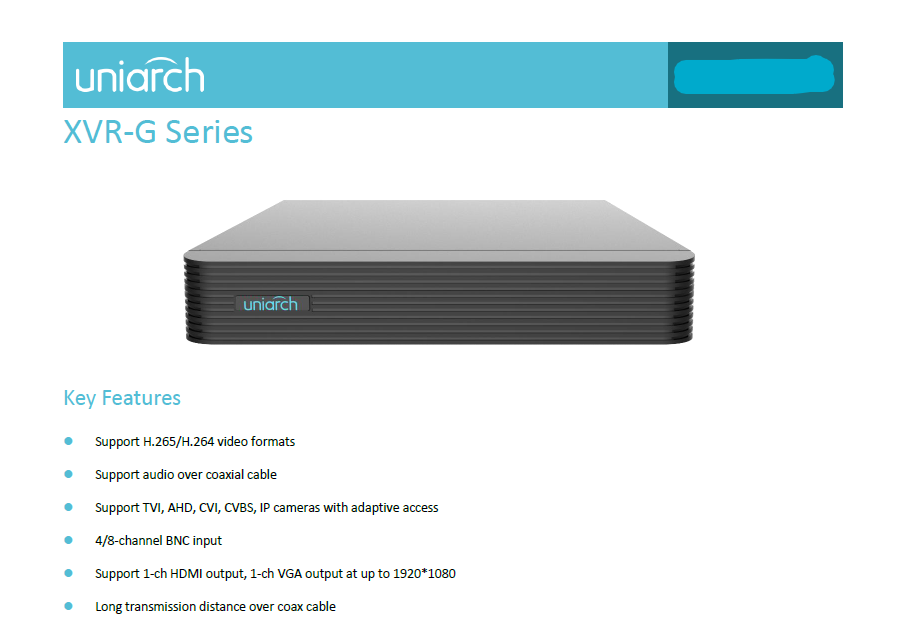

Highlight
								Supports H.265/H.264 video formats.
Supports audio over coaxial cable.
Supports TVI, AHD, CVI, CVBS and IP cameras with adaptive access.
8-channel BNC analog video inputs.
Supports 4-channel IP video input, with IP cameras up to 4MP.
Supports 1-channel HDMI output and 1-channel VGA output, up to 1920 × 1080.
Supports long transmission distance over coaxial cable.
Supports 5MP Lite recording.
Supports 8-channel synchronous playback.
Provides 1 SATA interface for internal HDD storage.
Supports HDD capacity of up to 6TB.
Supports two-way audio.
Provides 10/100Mbps self-adaptive Ethernet connectivity.
Supports remote access for up to 128 users.
Supports TCP/IP, P2P, UPnP, NTP, DHCP and PPPoE protocols.
Provides 2 × USB 2.0 interfaces for peripheral/backup use.



Features

Supports H.265/H.264 video formats.
Supports audio over coaxial cable.
Supports TVI, AHD, CVI, CVBS and IP cameras with adaptive access.
8-channel BNC analog video inputs.
Supports 4-channel IP video input, with IP cameras up to 4MP.
Supports 1-channel HDMI output and 1-channel VGA output, up to 1920 × 1080.
Supports long transmission distance over coaxial cable.
Supports 5MP Lite recording.
Supports 8-channel synchronous playback.
Provides 1 SATA interface for internal HDD storage.
Supports HDD capacity of up to 6TB.
Supports two-way audio.
Provides 10/100Mbps self-adaptive Ethernet connectivity.
Supports remote access for up to 128 users.
Supports TCP/IP, P2P, UPnP, NTP, DHCP and PPPoE protocols.
Provides 2 × USB 2.0 interfaces for peripheral/backup use.

Specifications

Video/Audio Input
Analog Video Input	8-ch, BNC
IP Video Input	4-ch (only IP up to 8ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@60fps
	Support TVI input: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@60fps
	Support CVI input: 4MP@15fps, 1080P@30fps, 720P@30fps
	Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	48Mbps
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
VGA Output	1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Output	1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	8-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P/720P/4CIF/CIF
Recording Frame Rate	Main stream: 5MP Lite@6fps, 4MP Lite@8fps, 2MP Lite@15fps, 2MP@8fps, 720P@15fps
Recording Frame Rate	Sub stream: D1@30fps (Max)
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 × USB2.0
General
Power Supply	12V DC
Power Consumption	≤ 8 W (without HDD)
Working Environment	-10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	255mm × 215mm × 42mm (10.0" × 8.5" × 1.7")
Weight (without HDD)	≤1.1 Kg (2.42lb)
