Pro Face Access Terminal

Video: https://www.youtube.com/watch?v=a4NlPMK4FPw

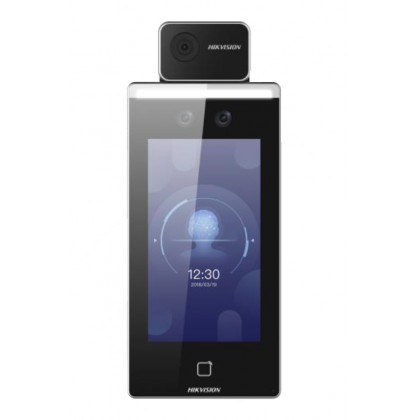

1 x Hikvision DS-K1TA70MI-T Face Recognition Terminal Temperature Screening Access Control

1 x Adroid Indoor Station DS-KC001

• Supports Vanadium Oxide uncooled sensor to measure target's temperature
• Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
• Recognition distance: 0.3 to 1.8 m
• Fast temperature measurement mode: Detects face and takes temperature without identity authentication
• Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
• Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
• Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
• Displays temperature measurement results on the authentication page
• Triggers voice prompt when detecting abnormal temperature
• Configurable door status (open/close) when detecting abnormal temperature
• Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
• Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
• 6000 face capacity, 6000 card capacity, and 100,000 event capacity
• Suggested height for face recognition: between 1.4 m and 1.9 m
• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
• Watchdog design and tamper function
• Audio prompt for authentication result
• NTP, manually time synchronization, and auto synchronization
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
• Imports and export data to the device from the client software
• * Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.
• * In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to warm the device up.
