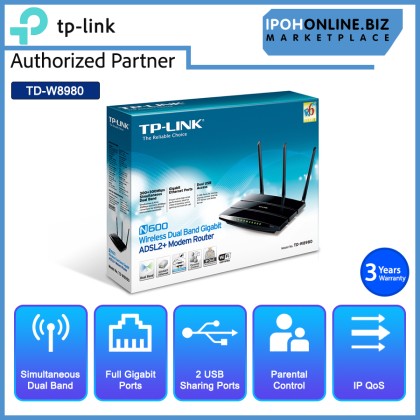

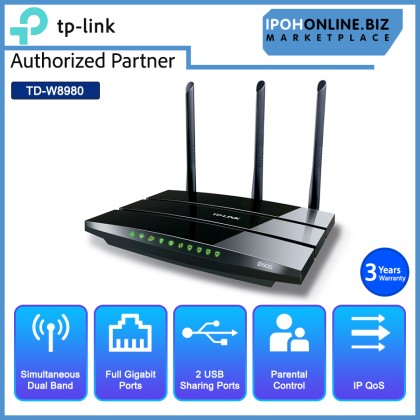

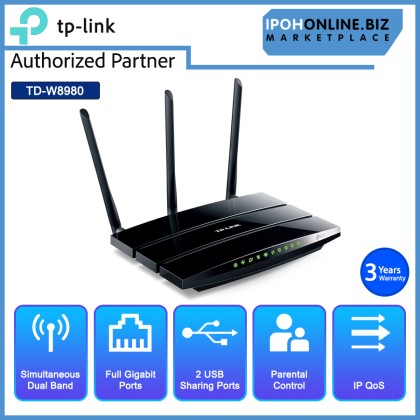

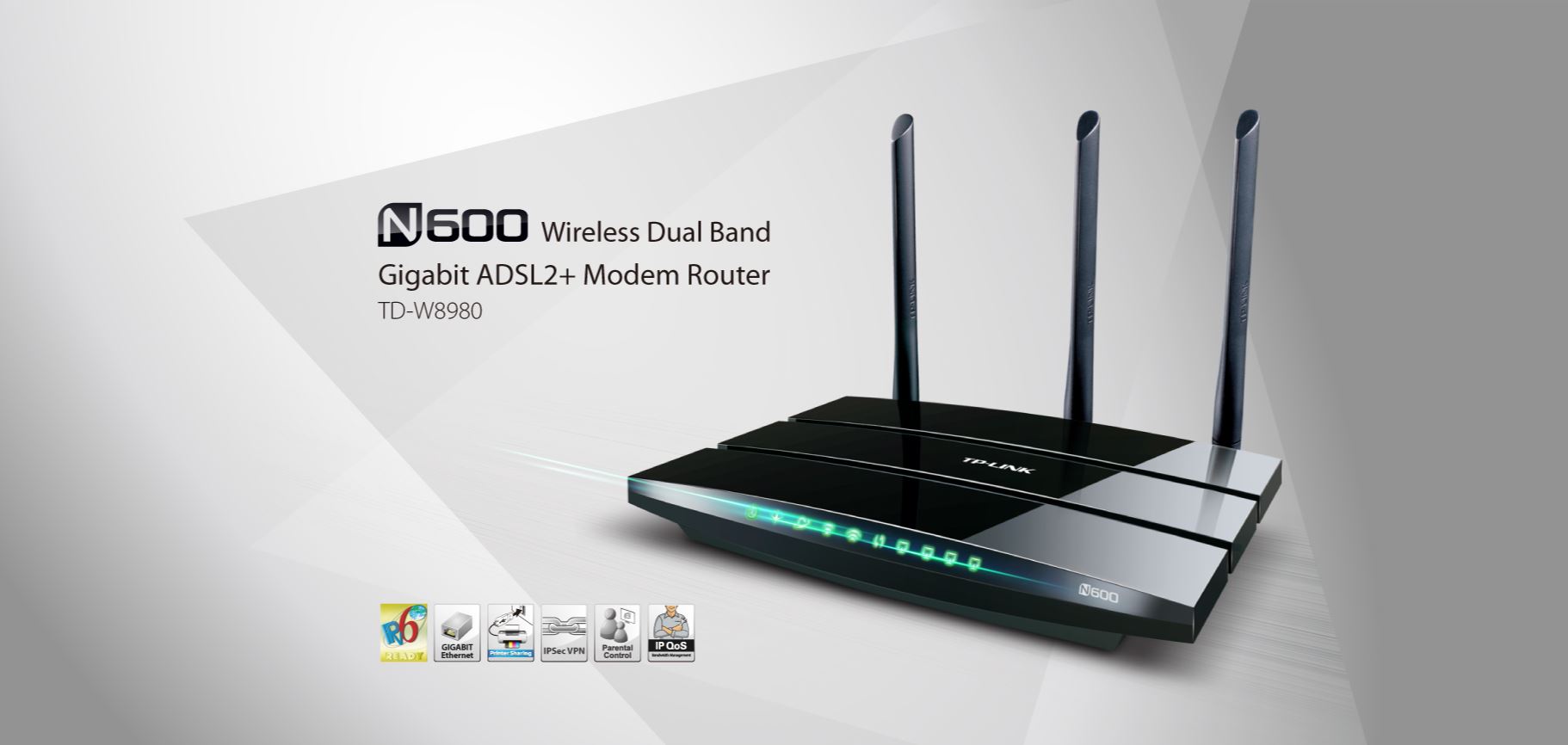

Name: TP-LINK TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router
Brand: TP-Link
SKU: TP-W8980
Price: 100.00 MYR
Availability: InStock

TP-LINK TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router

RM100.00 RM329.00 RM

TP-LINK TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router

Price	RM100.00 RM329.00 RM
Product SKU	TP-W8980
Brand	TP-Link
Size (L x W x H)	37 cm x 30 cm x 12 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight

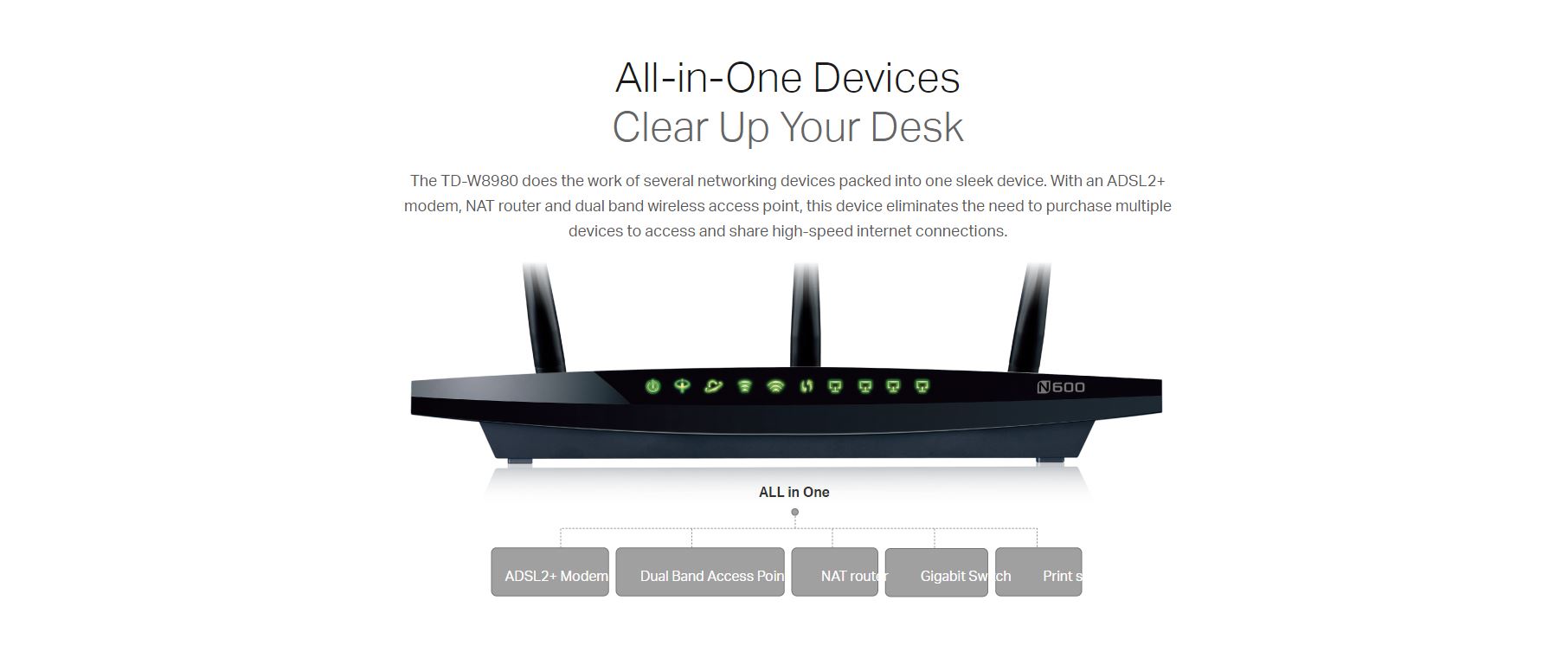

								All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point

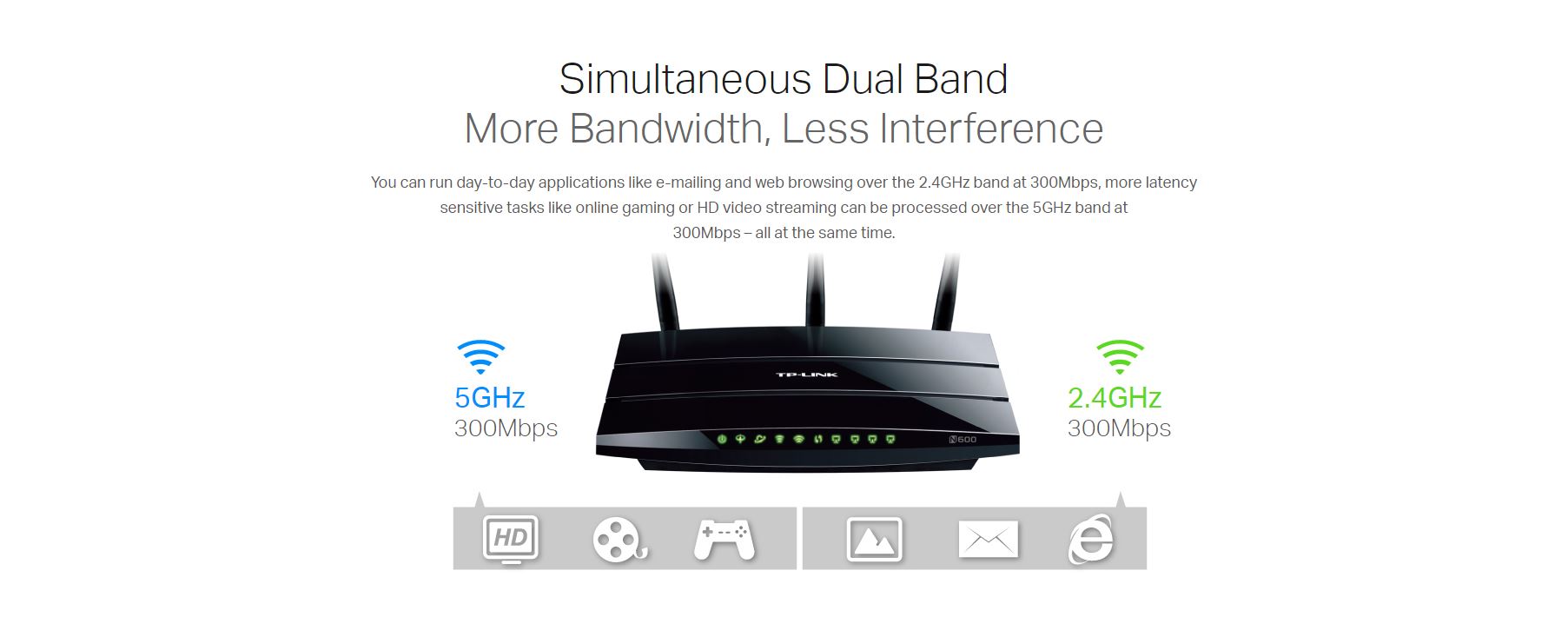

Simultaneous 2.4GHz 300Mbps and 5GHz 300Mbps connections for 600Mbps of total available bandwidth

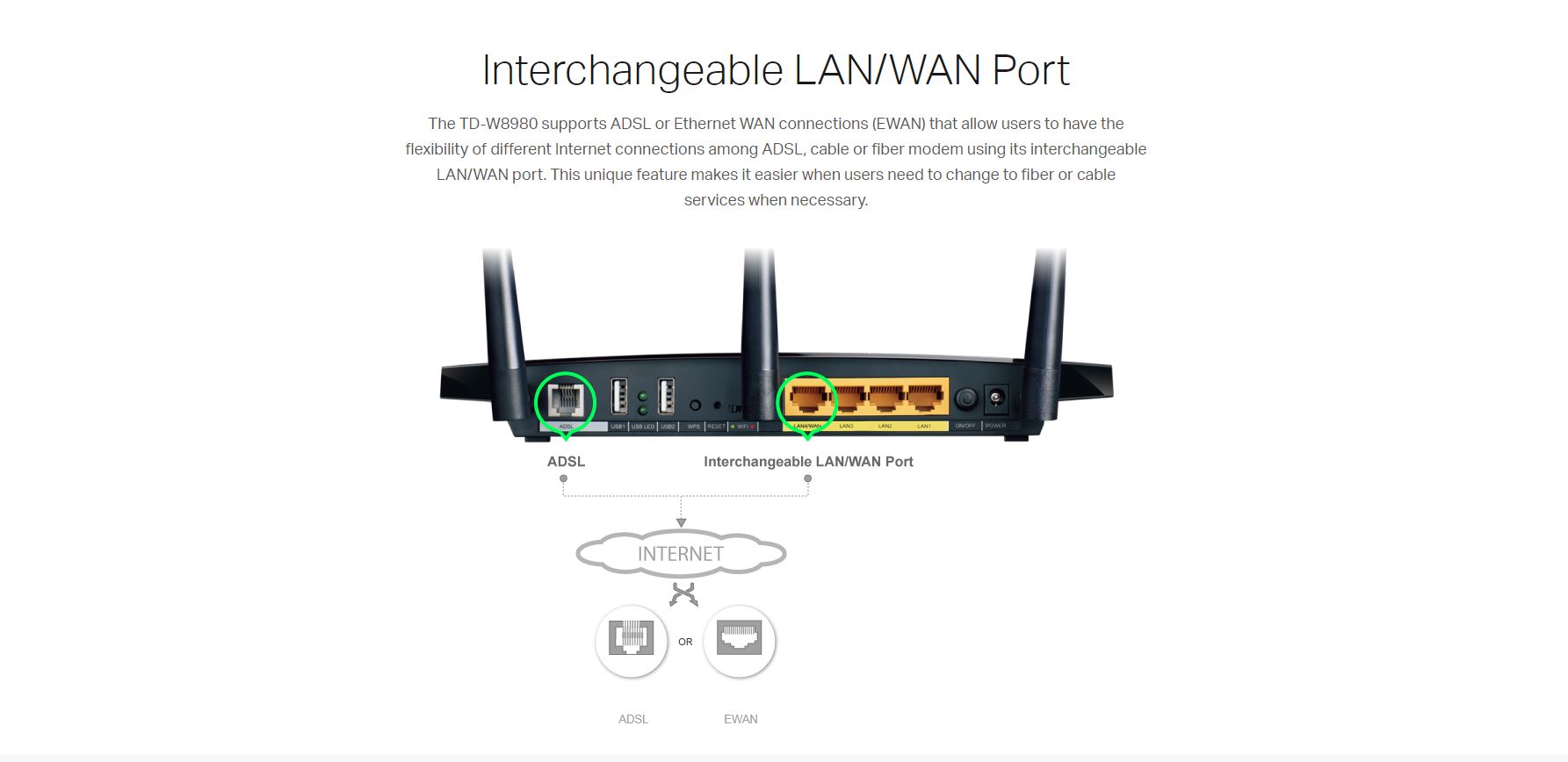

Versatile Connectivity: ADSL or Ethernet WAN for multiple Internet connection types

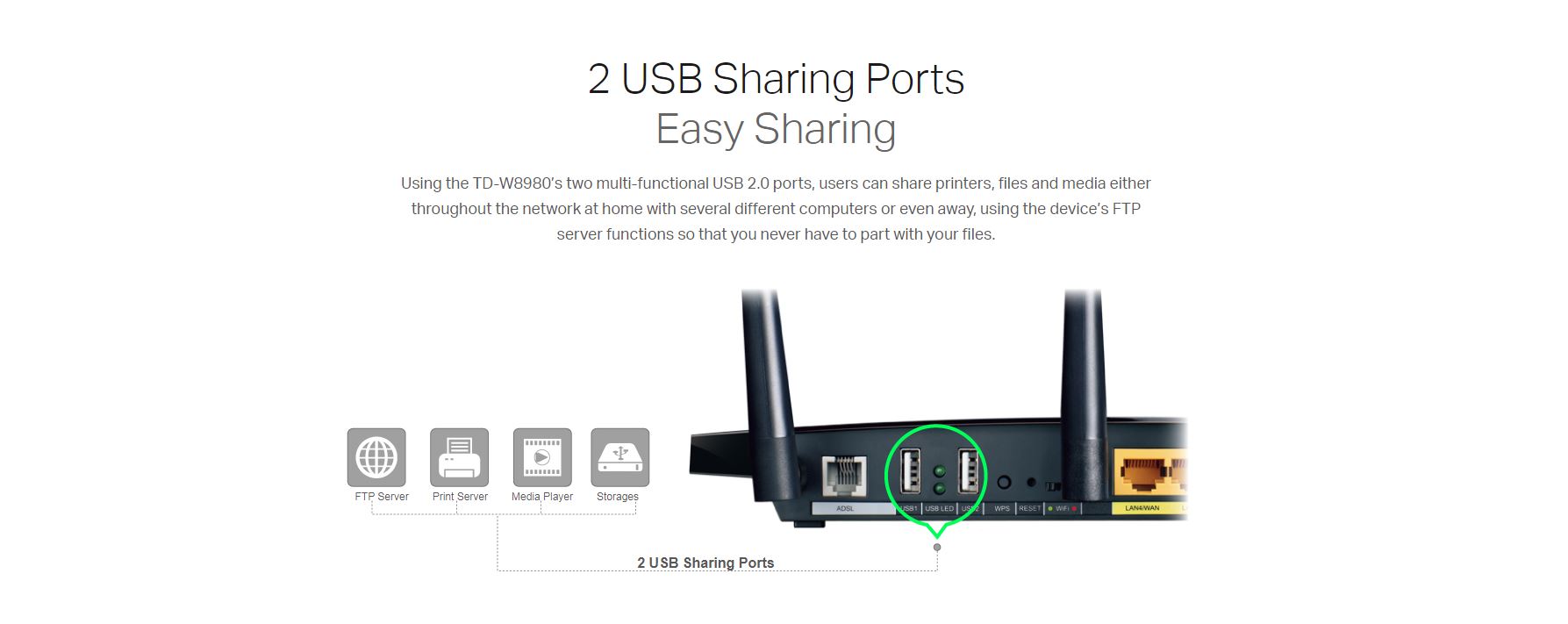

2 USB ports for storage sharing, printer sharing, FTP Server and Media Server



Specifications

HARDWARE FEATURES

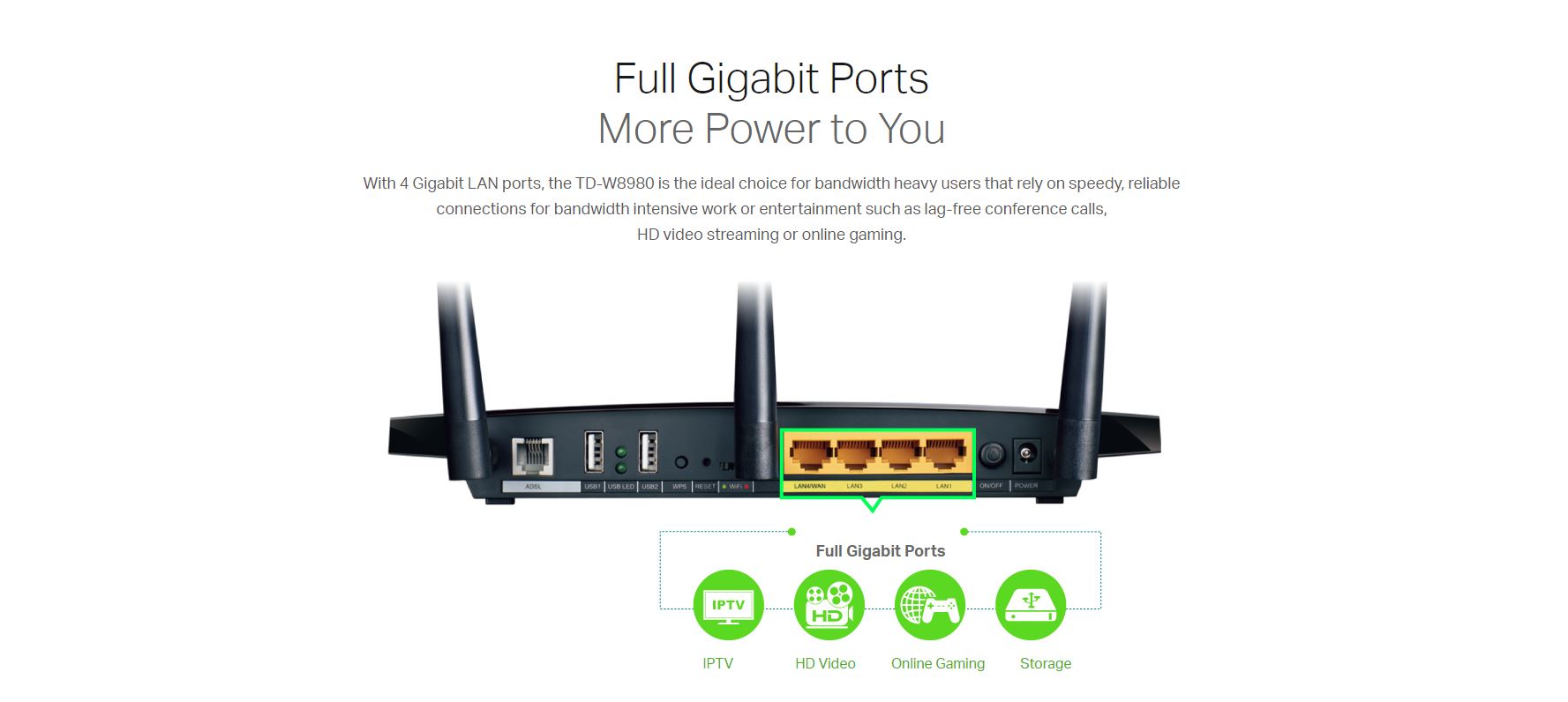

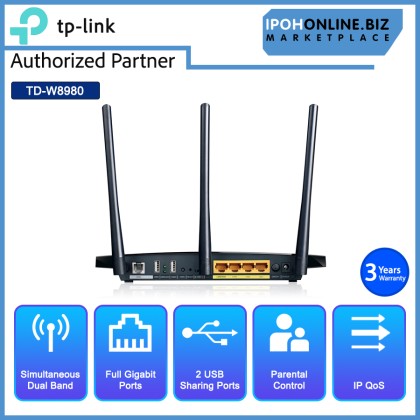

Interface	4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 2 USB 2.0 Ports
Button	1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button
External Power Supply	12VDC/1.5A
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	9.66.41.3 in.(243 x 160.6 x 32.5mm)

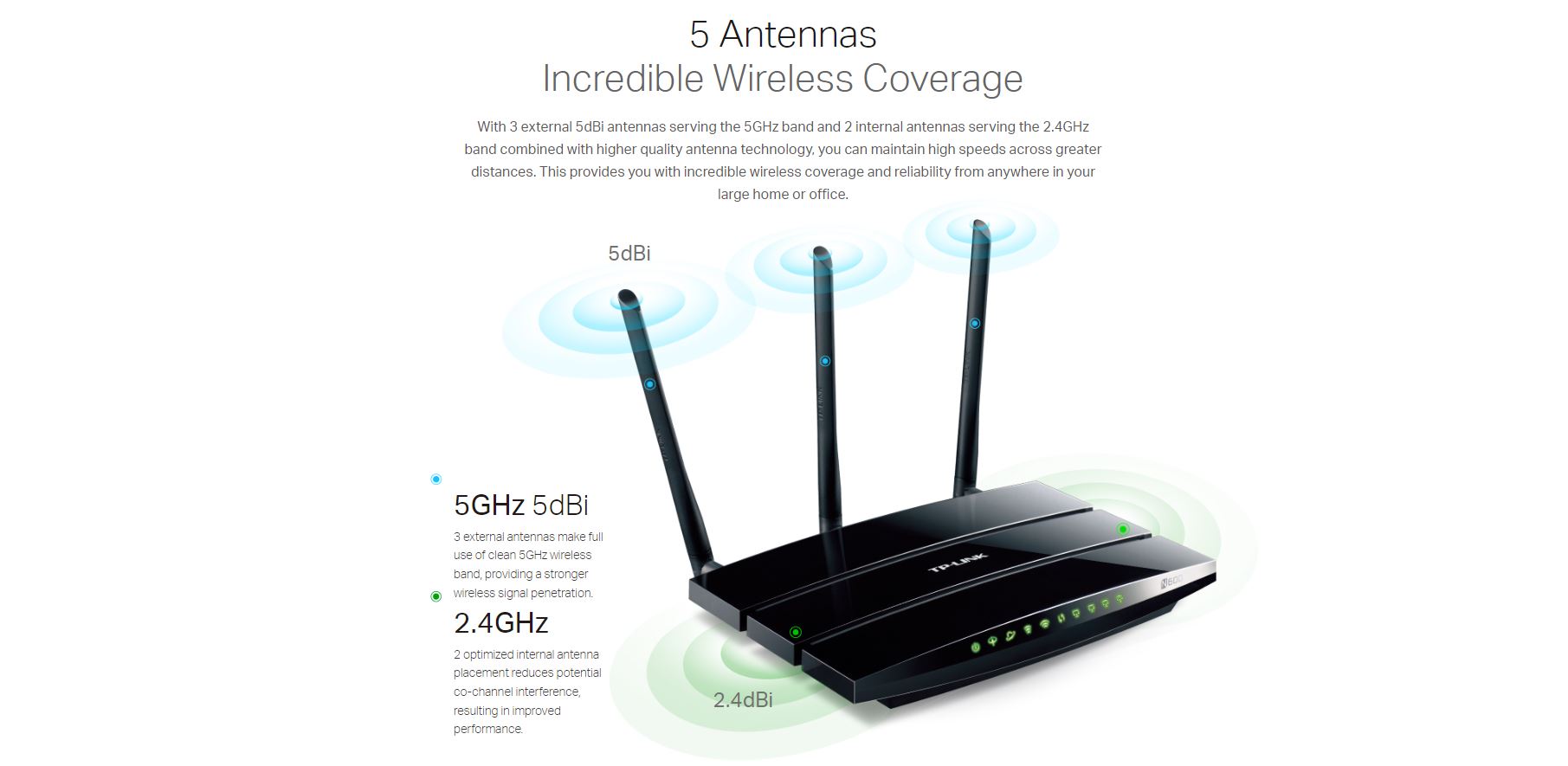

Antenna Type	Three 5GHz 5dBi detachable antennas (RP-SMA) Two 2.4GHz 3.5dBi internal antennas

WIRELESS FEATURES

Wireless Standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency	2.4GHz and 5GHz
Transmit Power	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service	WMM, Bandwidth Control (IP QoS)
Advanced Features	Parent Control Traffic Shaping(ATM QoS) UBR, CBR VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS
Security	NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
IPv6	IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management	Web Based Configuration(HTTP) Remote management Telnet management Command Line Interface SSL for TR-069 SNMP V1/V2C Web Based Firmware Upgrade CWMP(TR-069) Diagnostic Tools
Port Forwarding	Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
USB Sharing	Storage Sharing FTP Server Media Server Print Server
IGMP	IGMP snooping V1/V2/V3 IGMP Multicast
IPSec VPN	10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)

OTHERS

Certification	CE, FCC, RoHS IPv6
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
