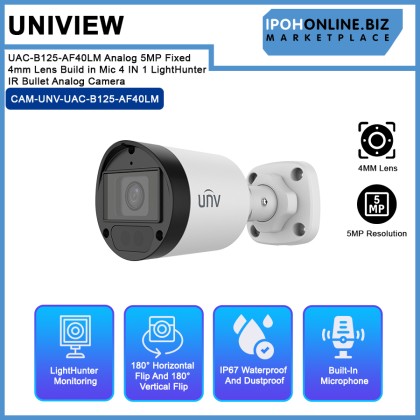

UNV Uniview UAC-B125-AF40LM Analog 5MP Fixed 4mm Lens Build in Mic 4 IN 1 LightHunter IR Bullet Analog Camera
| Price | RM110.00 RM150.00 RM |
| Product SKU | CAM-UNV-UAC-B125-AF40LM |
| Brand | Uniview |
| Size (L x W x H) | 26 cm x 15 cm x 15 cm |
| Availability | 16 |
| Quantity |
|
Description

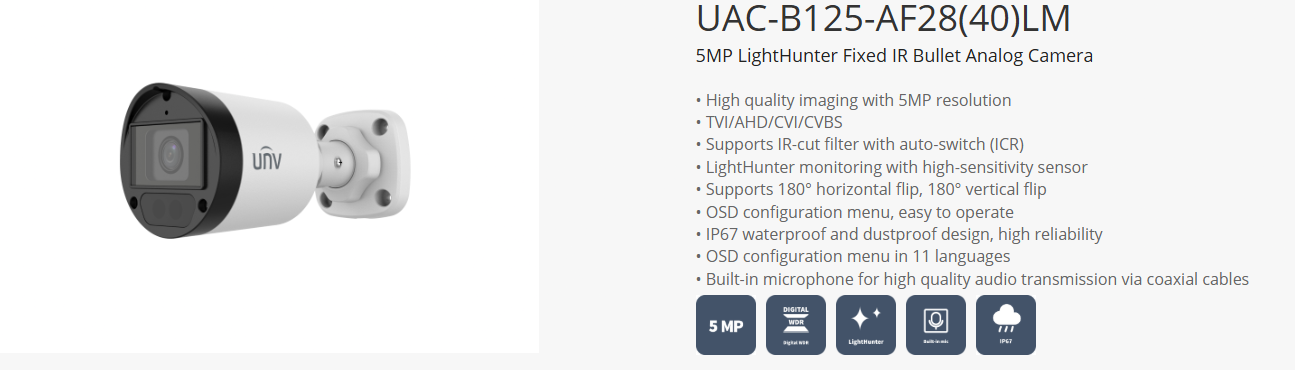

Highlight
- High quality imaging with 5MP resolution
- Supports TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Supports 180° horizontal flip and 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design for high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
Features
- High quality imaging with 5MP resolution
- Supports TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Supports 180° horizontal flip and 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design for high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
Specifications
| Camera | |
| Model | UAC-B125-AF40LM |
| Max Resolution | 5 MP |
| Sensor Size | 1/2.7" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON); 0 lux (IR on) |
| Lens | |
| Focus | 4.0 mm |
| Lens Mount | M12 |
| Angle of View (H) | 91.3° |
| Angle of View (V) | 46.1° |
| Angle of View (D) | 109.6° |
| Illuminator | |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 40 m |
| Lifetime | ≥ 60,000 hours |
| Resolution | |
| Resolution | 5MP@25fps: 2880(H) × 1620(V); 5MP@20fps: 2592(H) × 1944(V); [email protected]: 2592(H) × 1944(V); 4MP: 2560(H) × 1440(V); 1080P: 1920(H) × 1080(V) |
| Frame Rate | TVI: 5MP@20fps (default), [email protected], 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 5MP@20fps, [email protected], 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 3.4W |
| Mount | Corner Mount, Pole Mount |
| Dimensions | 154 mm × 66 mm × 66 mm (L × W × H) |
| Material | Graphene + Metal + Plastic |
| Weight | 240 g (0.53 lb) |
What's In The Box?
- 1 x UNIVIEW Analog Camera
Warranty
2 Year Warranty
Local Manufacturer Warranty
