Features

• An IP65 protection rating with waterproof and dustproof, can fully operate under extreme weather
• Multiple authentication methods: facial recognition, fingerprint, scramble QR code and RFID cards verification
• Available card modules:125KHz ID card / 13.56MHz IC card
• Hidden supplement light design with adjustable brightness
• On board web server for system configuration
• High capacity for necessary record storage. Offers 200,000 transaction logs (Facial templates: 500 / Fingerprint capacity: 3,000 / RFID card capacity: 3,000)

Specification

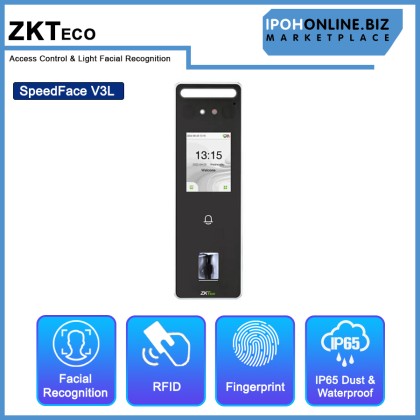

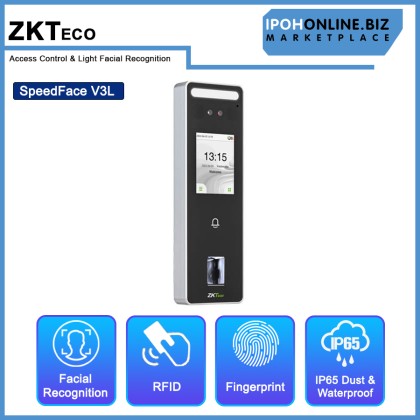

• Model : SpeedFace-V3L
• Display : 2.4-inch ISP LCD touch Screen (240*320)
• Camera : Binocular Camera@ 1MP
• Operation System : Linux
• Hardware : 1.2GHz Dual Core CPU, 256MB RAM/512MB ROM, 1MP monocular Camera; Adjustable LED Supplement Light
• Authentication Method : Fingerprint / Face / Card / Password (Virtual Keypad)
• Fingerprint Template Capacity : 3,000 (1:N) (Optional: 5,000) 3,000 (1:1) (Optional: 5,000)
• Face Template Capacity : 500 (1:N) (Optional: 1,500) , 500 (1:1) (Optional: 1,500)
• Card Capacity : 3,000 (1:N) (Optional: 10,000) , 3,000 (1:1) (Optional: 10,000)
• Transaction Capacity : 200,000
• Biometric Verification Speed : less than 1 sec (Facial Recognition) , less than 0.3 sec (Fingerprint Recognition)
• Touchless Biometric Recognition Distance : 0.5m to 2m (Facial Recognition)
• False Acceptance Rate (FAR) % : FAR ≤ 0.01% (Visible Light Facial Recognition) , FAR ≤ 0.0001% (Fingerprint; ZKFingerprint V10.0)
• False Rejection Rate (FRR) % : FRR ≤ 0.02% (Visible Light Facial Recognition) , FRR ≤ 0.01% (Fingerprint: ZKFingerprint V10.0)
• Biometric Algorithm : ZKFace 3.5 , ZKFingerprint V10.0
• Card Type : ID Card@125 kHz (Optional) , IC [email protected] MHz (Optional)
• Communication : TCP/IP * 1, Wi-Fi (Optional) , Wiegand Input * 1, Wiegand Output * 1, RS485*: ZKTeco RS485 * 1, Auxiliary Input, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1, Doorbell * 1
• Standard Functions : ADMS, DST, 14 digit User ID , Access Levels, Groups, Holidays, Anti passback, Record Query,Tamper Switch Alarm, Multiple Verification Methods
• Power Supply : 12V 3A
• Operating Temperature : -5°C to 45°C
• Operating Humidity : 10% to 90% RH (Non-condensing)
• Dimensions : 185*58.5*20mm (L*W*H)
• Gross Weight : 0.8kg
• Net Weight : 0.3kg
• Supported Software : Software: ZKBio CVAccess / ZKBioTalk , Mobile App: ZSmart , Cloud Service: ZKBio Zlink
• Installation : Wall-mount (Compatible with Single Gang-Box)
• Ingress Protection Rating : IP65
• Certifications : ISO14001, ISO9001, CE, FCC

What In The Box

• 1 x ZKTECO SpeedFace V3L LINUX-BASED HYBRID-BIOMETRIC Access Control & Light Facial Recognition

Warranty

1 Year Warranty

Local Manufacturer Warranty
