AUDIO+
|
Hi-Fi
A combination of exclusive hardware & software design including "ground-isolation circuit design","an independent audio power", and "a built=on-board amplifier", with all these hardware features gives you the best audio quality and performance. As for software, we offer you a free bundle utility "Multi-Channel Calibration" which normally you'll find in high level sound systems; this feature allows you to auto detect your location; with a user friendly interface, you can easily adjust the volume of every speakers to make a well balanced surround sound. And of course, the built-on-board amplifier always gives you a super powerful sound comparing to other motherboards.
|
|
|
Hi-Fi Power
Audio power is an important factor in audio quality. Most AV equipment isolates the power supply for each analog and digital signal to gather high-quality sound reproduction. Equipped with BIOSTAR Hi-Fi Power technology, it will utilize audio components with independent power design for a significant reduction in electronic noise and superb sound quality.
|
|
|
Hi-Fi Ground
BIOSTAR Hi-Fi Ground ( Golden Line ) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for exceptional clarity and high fidelity sound.
|
|
|
Hi-Fi Sound
BIOSTAR Hi-Fi series motherboards have a sampling rate of 192kHz/24-bit which delivers a high quality audio through an analog connection to your home theater system, multi-channel speakers and high-end headphone. You can enjoy real Blu-ray grade high-definition sound that you’ve never experienced before.
|
|
|
Hi-Fi AMP
The built-in amplifier can drive major high-end headphones with over 100dB loads and offer wide band-width, low noise, high slew rate and low distortion audio source from front panel I/O. Gaming enthusiasts can enjoy a fuller range of dynamic sound with crisper details and less distortion.
|
|
|
Smart Ear
Smart EAR is a windows-based audio utility which allows you to easily adjust system volume. With its user-friendly GUI, you can also increase or decrease impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound.
|
|
VIDEO+
|
DVI
DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself.
|
|
|
DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
|
|
SPEED+

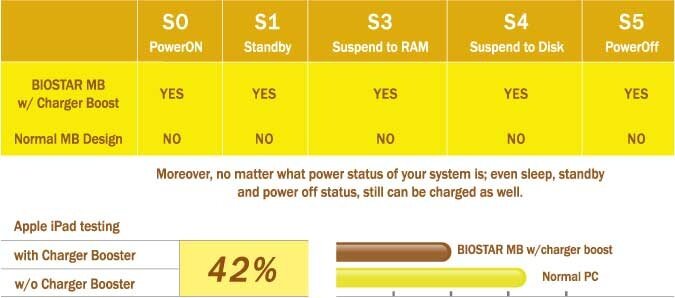

Charger Booster
Charger booster is the best and efficient charger solution for apple devices such as iPad, iPhone.
Basically, Charger booster Technology is able to boost the charging time to be more efficiency
and faster once any apple goods connecting to our Motherboard.
With charger booster technology, you are able to charge your apple devices up to 42 % faster.
PROTECTION+

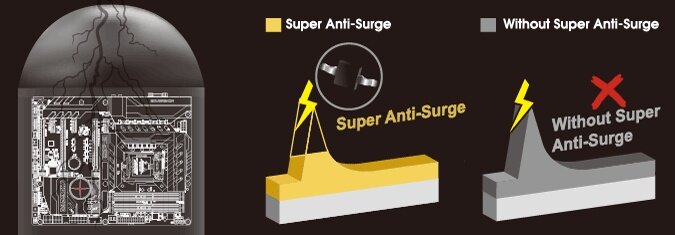

Super Anti-Surge Protection
BIOSTAR exclusive Anti-Surge design provides the best protection of board and extends the product life.
Having the latest model of "Transient Voltage Suppressor" on- board can effectively protect the board circuit,
reducing the shocks caused by ESD as well as other damages arising from overvoltage transients to enhance system durability.

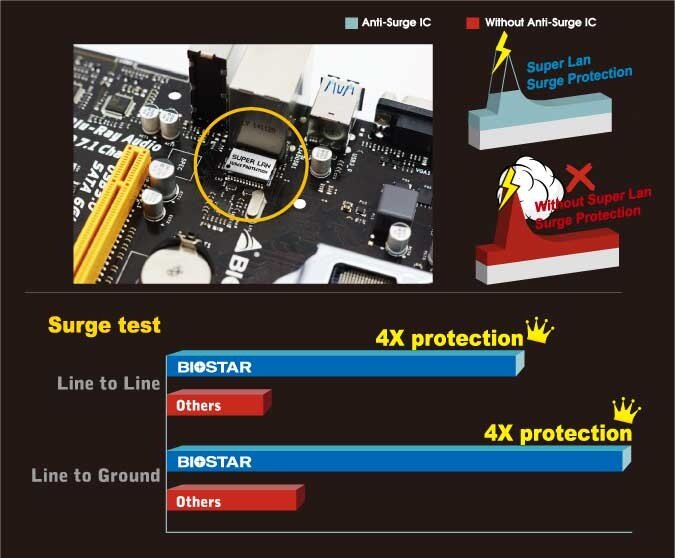

Super LAN Surge Protection
Super LAN Surge Protection, providing LAN port with more advanced antistatic protection capabilities
by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges.
SLSP (Super LAN Surge Protection) series motherboard upgrades the existing system protection standards
with maximum 4X protection comparing to other board makers.
ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy PC by electrical overstress(EOS) condition,
ESD occurred by PC users when touch any devices connect to PC,
which may result in damage to motherboard or parts .ESD protection is designed to protect the motherboard and equipment from damage by EOS
USB Polyswitch
 On board dedicated power fuse to help prevent USB port failure.
It prevents USB Port overcurrent and safegurand your system and device lifespan.
DIY+
Users can easily assemble their own computer, a simple-swap data discs and other accessories.
CPU-Chipset Features
Intel B150 chipset
The Intel® B150 chipset is a single-chipset design to support socket 1151 Intel® 6th generation Intel® Core™ processor-based platform.
Provides excellent performance and increased bandwidth and stability. Intel® B150 chipset can also enable iGPU function,
letting users enjoy the latest Intel® integrated graphic performance.
The PC platform features improved adaptive performance that adds speed when you need it.
When combined with advanced system responsiveness, the platform delivers the ultimate PC experience.
SPECIFICATION
|
Chipset
|
Intel B150
|
|
CPU SUPPORT
|
7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
|
|
MEMORY
|
Support Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
|
|
INTEGRATED VIDEO
|
By CPU model
Supports DX12
Supports HDCP
|
|
STORAGE
|
4 x SATA3 Connector
|
|
LAN
|
Realtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
|
|
CODEC
|
Realtek ALC887 8-Channel HD Audio
Support Biostar Hi-Fi
|
|
USB
|
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
|
|
EXPANSION SLOT
|
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slot
|
|
REAR I/O
|
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x LAN port
3 x Audio Jacks
|
|
INTERNAL I/O
|
1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x Serial Port Header
|
|
H/W MONITORING
|
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
|
|
DIMENSION
|
Micro ATX Form Factor Dimension: 22.6cm x 18.5cm ( W x L )
|
|
OS SUPPORT
|
Support Windows 7 / 8.1(x64) / 10(x64)
|
|
BUNDLE SOFTWARE
|
BullGuard
Smart Ear headphone Utility
BIO-Remote2
Smart Speed LAN
|
|
ACCESSORIES
|
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
|
|
FEATURES
|
Supports PURO Hi-Fi(Rear)
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
|
|
