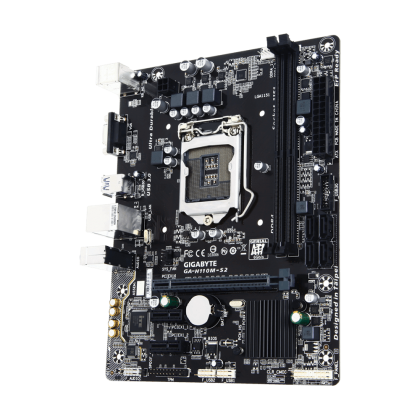

Gigabyte GA-H110M-S2 7th 6th Gen 1151 DDR4 VGA Micro ATX Intel Motherboard
Price RM247.50 RM319.00
Product SKU MOBO-GIGABYTE-H110M-S2
Brand GIGABYTE
Size (L x W x H) 26.9 cm x 5.6 cm x 23.4 cm
Availability 5
Quantity
Description
Highlight
  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Audio Noise Guard with High Quality Audio Capacitors
  • Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
  • All new GIGABYTE™ APP Center, simple and easy use
  • Support Intel® Small Business Basics





Humidity Protection with Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTES motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB techonology that repels moisture caused by humid and damp conditions. Glass Fabric PCB techonology uses a new PCB material which reduces the amount of space between the fibre weave, making it more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions





Realtek GbE LAN with cFosSpeed Internet Accelerator Software

Realtek GbE LAN features cFosSpeed, a network traffic managemnt application which helps to imporve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN enviroments. Realtek GbE consumes significant less power when it's in idle state in comparison with others.





High ESD Ethernet & USB Port Protection

GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.







High Temperature Protection of Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.



SPECIFICATIONS

CPU
  1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
  2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information)

Chipset
  1. Intel® H110 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400/2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "CPU Support List" for more information)

Onboard Graphics Integrated Graphics Processor- Intel®  HD Graphics support
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. Maximum shared memory of 1024 MB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
    (The the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface Chipset:
  1. 4 x SATA 6Gb/s connectors
USB Chipset:
  1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Iternal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header
  12. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 2 x USB 3.0/2.0 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks (Line In, Line Out, Mic In)
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
  2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel®Processors)
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm



Reviews (0)
view all
back
0
0 reviews
What's in the box
  • 1 x Gigabyte H110M-S2 LGA 1151 DDR4 Motherboard
