RM869.00 RM939.00
Gigabyte GA-B250M-GAMING 3 Intel B250 LGA 1151 DDR4 HDMI VGA DVI USB 3.1 Micro ATX Gaming Motherboard + Intel Pentium G4560 3.5 GHz Dual-Core LGA 1151 Kaby Lake Desktop Processor + G.SKILL Aegis 4GB 288-Pin DDR4 2400 Desktop Gaming RAM
Price RM869.00 RM939.00
Brand Gigabyte
Size (L x W x H) 31.5 cm x 18 cm x 31.5 cm
Availability Out Of Stock
  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 2- Way CrossFire™ Multi-Graphics Support
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software​
  • 2 Cores & 4 Threads
  • LGA 1151 Socket
  • Intel HD Graphics 610
  • DDR4 & DDR3L Support
  • Increase bandwidth by up to 32%
  • Reduce power consumption by up to 40%
  • Optimized for next generation processors and platforms
  • Available in four channel kits up to 64GB

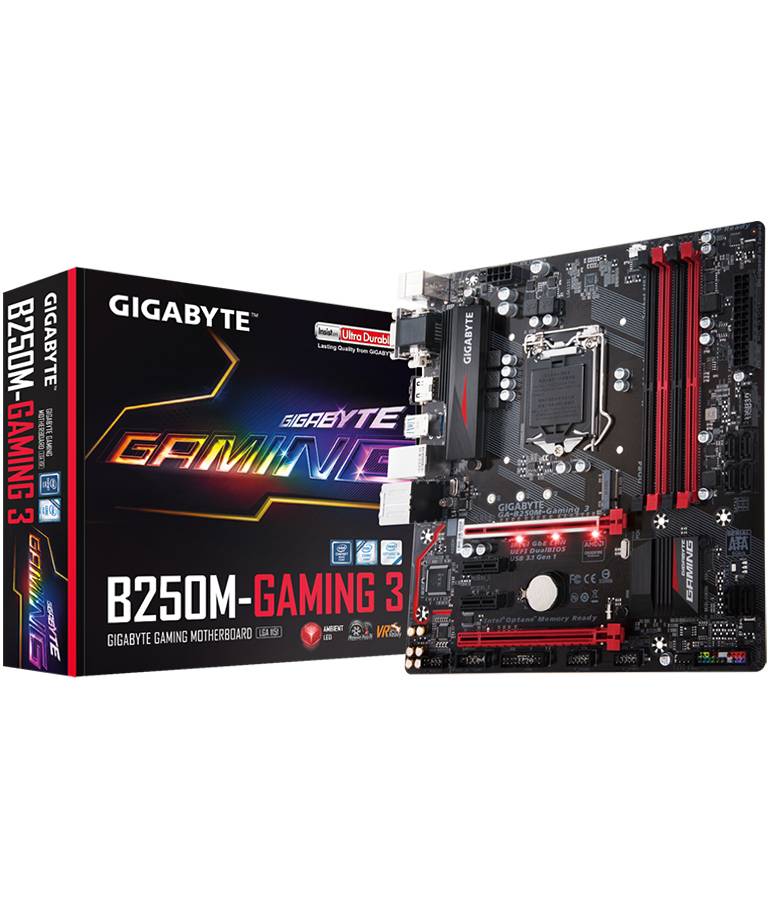

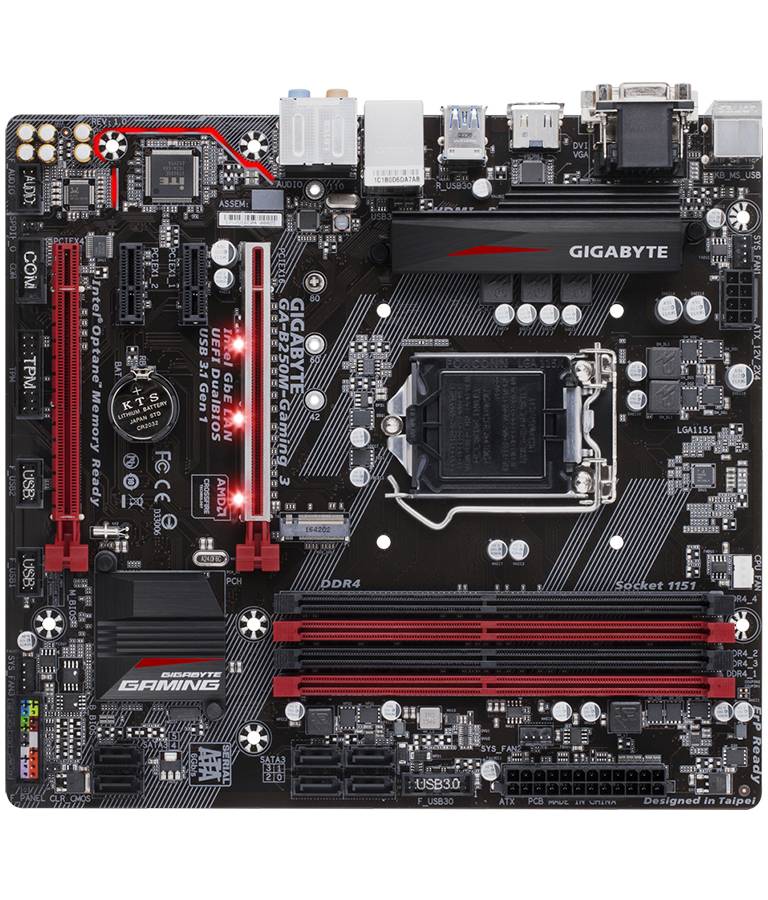

Gigabyte GA-B250M-GAMING 3 Motherboard




Ambient LED

LED Light Show Design

Ambient lights are now programmable. You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmospehere that enchances the environment of your game, movie or music.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

4 Temperature Sensors

2 Hybird Fan Headers

  • 4 Fan pin headers
  • 6 Temperature Sensors
  • All Fan Pin Headers Upgraded to Hybird Fan Headers
  • Supports High Current Fans up to 24W (2A x 12V) with Over-Current Protection)
  • Intuitive UI for fan control


High Quality Onboard Audio Design

Deliver the high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.


Audio Noise Guard with LED Trace Path Lighting


Intel GbE LAN with cFosSpeed Internet Accelerator Networking

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsivess in crowded LAN environments.


NVMe PCIe Gen3 X 4 22110 M.2 Connector

Gigabyte M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.


CPU Support  7th/6th Gen Intel Core Processors
CPU Socket LGA 1151
Chipset Intel B250 Chipset
Graphics Interface  1*PCIe 3.0 x 16 + 1*PCIe 3.0 x 4
Display Interface HDMI, DVI-D, D-Sub
Memory Type Dual-Channel DDR4
Memory DIMM 4*DIMMs
Expansion Slots 2*PCIe 3.0 x 1
SATA / M.2 6*SATA3 / 1*M.2
USB 6*USB 3.1 Gen 1+ 6*USB 2.0
Audio/LAN 8-Channel HD / Intel GbE LAN
Form Factor(mm) MATX (244x225)



Intel Pentium G4560 LGA 1151 Processor

The Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor from Intel has a base clock speed of 3.5 GHz and comes with features such as Intel Hyper-Threading technology. This processor features 2 cores with 4 threads in an LGA 1151 socket and has 3MB of cache memory. Having 2 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 4 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 64GB of DDR4-2400/2133 and DDR3L 1600/1333 RAM at 1.35V, has AES New Instructions, 14nm lithography, and utilizes 7th Generation (Kaby Lake) technology.


Processor Number Pentium G4560
Lithography 14 nm
Number of Cores 2
Number of Threads 4
Processor Base Frequency 3.5 GHz
Cache 3 MB
Bus Speed 8 GT/s DMI3
# of QPI Links 0
TDP 54 W
Supplemental Information
Embedded Options Available No
Conflict Free YES
Memory Specifications
Max Memory Size 64 GB
Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35 V
Max Number of Memory Channels 2
ECC Memory Supported No
Graphics Specifications
Processor Graphics Intel HD Graphics 610
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60 Hz
Max Resolution (HDMI 1.4) 4096 x 2304 @ 24 Hz
Max Resolution (DP) 4096 x 2304 @ 24 Hz
Max Resolution (eDP - Integrated Flat Panel) 4096 x 2304 @ 24 Hz
DirectX Support 12
OpenGL Support 4.4
Intel Quick Sync Video Yes
Intel InTru 3D Technology Yes
Intel Clear Video Technology Yes

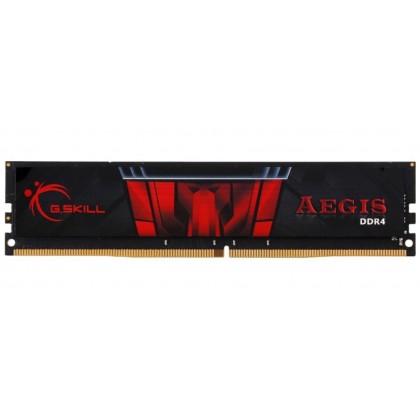

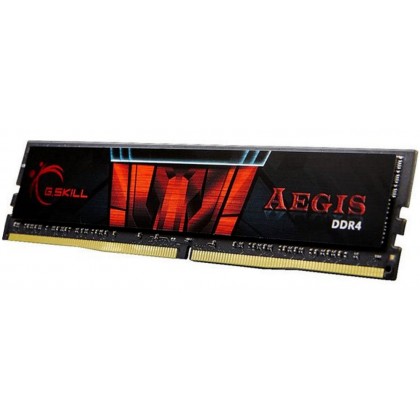

G.SKILL Aegis 4GB DDR4 2400 Desktop Gaming RAM




Gigabyte GA-B250M-GAMING 3 Motherboard  3 Years
Intel Pentium G4560 LGA 1151 Processor 3 Years
G.SKILL Aegis 4GB DDR4 2400 RAM Limited Lifetime
Reviews (0)
view all
0 reviews
What's in the box

Gigabyte Motherboard

  • 1 X Gigabyte GA-B250M-GAMING 3 Motherboard
  • 2 X Sata Cables
  • 1 X User's Manual
  • 1 X I/O Shield
  • 1 X Motherboard Drive Disk

Intel Processor

  • 1 x Intel Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor
  • 1 x CPU Cooler


  • 1 x G.SKILL Aegis 4GB 288-Pin DDR4 2400 Desktop Gaming RAM
