| Price | RM407.00 RM487.00 RM |
| Product SKU | RAM-8GB-KINGSTON-2133-SODIMM-KVR21S15S8/8 |
| Brand | Kingston |
| Size (L x W x H) | 4.7 cm x 0.7 cm x 9.8 cm |
| Availability | 3 |
| Quantity |
|
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
This document describes ValueRAM's 1G x 64-bit (8GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
SPECIFICATIONS
| CL(IDD) | 15 cycles |
| Row Cycle Time (tRCmin) Active | 46.5ns(min.) |
| Refresh to Active/Refresh | 350ns(min.) |
| Command Time (tRFCmin) Row | 33ns(min.) |
| Time (tRASmin) Maximum | TBD W* |
| Operating Power UL Rating | 94 V - 0 |
| Operating Temperature Storage | 0o C to +85o C |
| Temperature | -55o C to +100o C |
*Power will vary depending on the SDRAM used.

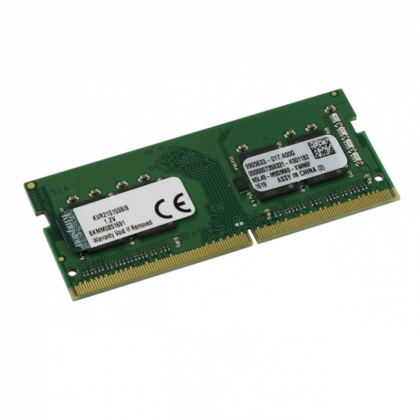

1 x Kingston 8GB PC4-2133 DDR4 2133 260 pin Notebook SODIMM Value RAM KVR21S15S8/8
