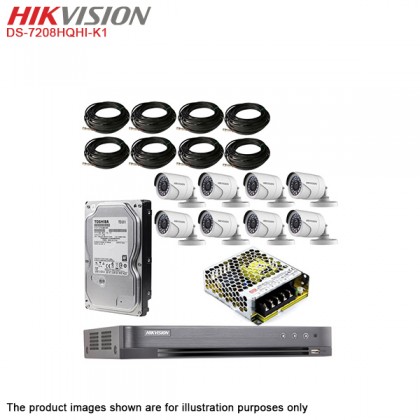

Name: Hikvision DS-7208HQHI-K1 8 Channel Turbo HD DVR + Hikvision 1MP 720P Outdoor IR Bullet Camera DS-2CE16COT-IRP x 8 + 1TB Toshiba CCTV HDD + Mean Well Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 8 Package
Brand: Hikvision
SKU: DVR-HIK-DS-7208HQHI-K1-1MP-BUL-SG-MW-RG59-PACK
Price: 1388.00 MYR

Hikvision DS-7208HQHI-K1 8 Channel Turbo HD DVR + Hikvision 1MP 720P Outdoor IR Bullet Camera DS-2CE16COT-IRP x 8 + 1TB Toshiba CCTV HDD + Mean Well Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 8 Package

RM1,388.00 RM1,688.00 RM

Hikvision DS-7208HQHI-K1 8 Channel Turbo HD DVR + Hikvision 1MP 720P Outdoor IR Bullet Camera DS-2CE16COT-IRP x 8 + 1TB Toshiba CCTV HDD + Mean Well Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 8 Package

Price	RM1,388.00 RM1,688.00 RM
Product SKU	DVR-HIK-DS-7208HQHI-K1-1MP-BUL-SG-MW-RG59-PACK
Brand	Hikvision
Size (L x W x H)	95 cm x 50 cm x 35 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding For The Main Stream, And H.265/H.264 For The Sub-Stream Of Analog Cameras
Self-Adaptive HDTVI/HDCVI/AHD/CVBS Signal Input
Connectable To H.265+/H.265/H.264+/H.264 IP Cameras
HDMI Output At Up To 4K (3840 × 2160) Resolution For DS-7208HUHI-K2
Long Distance Transmission Over UTP And Coaxial Cable
8-ch Synchronous Playback



Hikvision DS-7208HQHI-K1 DVR

Specifications

Video / Audio Input
Audio Input	1-ch
Video Compression	H.265+ / H.265 / H.264+ / H.264
Analog And HD-TVI Video Input	8-ch, BNC Interface (1.0Vp-p, 75Ω) Connection
Supported Camera Types	Support HDTVI Input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Support AHD Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS Input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1kΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input)
Video / Audio Output
CVBS Output	1-ch BNC (1.0Vp-p, 75Ω) Resolution: PAL: 704 x 576 NTSC: 704 x 480
HDMI/VGA Output	1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording Resolution	When 1080p Lite Mode Not Enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF When 1080p Lite Mode Enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rate	Main Stream: When 1080p Lite Mode Not Enabled: For 3MP Stream Access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps For 1080p Stream Access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) For 720p Stream Access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) When 1080p Lite Mode Enabled: 3MP@15fps 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Sub-Stream: WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N)
Video Bit Rate	32 Kbps - 6 Mbps
Stream Type	Video / Video & Audio
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1kΩ) (Using The Audio Input)
Audio Output	1-ch RCA (Linear, 1kΩ)
Audio Bit Rate	64 kbps
Dual Stream	Support
Playback Resolution	3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
Synchronous Playback	8-ch
Network management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up To 6TB Capacity For Each Disk
External Interface
External Interface	1; 10M / 100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1; Standard RS-485 Serial Interface, Half-Duplex
General
Power Supply	12V DC
Consumption	≤ 7.5W (Without Hard Disks)
Working Temperature	-10ºC To + 55ºC (14ºF To 131ºF)
Working Humidity	10% To 90%
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 Inch)
Weight	≤ 1.78 kg (3.9 lb)

Hikvision 1MP 720P Outdoor IR Bullet Camera DS-2CE16COT-IRP x 8

Image Sensor	1MP CMOS Image Sensor
Effective Pixels	1296(H)x732(V)
Min. Illumination	0.1 Lux @(F1.2,AGC ON), 0 Lux With IR
Shutter Time	1/25(1/30) s To 1/50,000 s
Lens	3.6mm (2.8mm, 6mm optional), Angle Of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
Lens Mount	M12
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Day& Night	IR Cut Filter With Auto Switch
Video Frame Rate	720p@25fps/720p@30fps
HD Video Output	1 Analog HD Output
Synchronization	Internal Synchronization
S/N Ratio	More Than 62 dB
Operating Conditions	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% Or Less (Non-Condensing)
Power Supply	12 VDC±15%
Power Consumption	Max. 4W
Weather Proof	IP66
IR Range	Up To 20m
Dimension	Φ70×149.5 mm (Φ2.76” ×5.89”)
Weight	300 g

1TB Toshiba CCTV HDD

Overview

Toshiba’s 7200 RPM 3.5-Inch (8.9cm) HDD Series Is Optimised For Use In Power-Friendly Consumer And Commercial Desktop Computers, Gaming PCs And External HDD. The DT01ACA100 Offers 1TB Capacity And Uses Advanced Format And Leverages A Best-In-Class Power Management Technology. In Addition, This Desktop Drive Provides Up To 16% Idle Power Savings Over The Previous Model. The 6Gb/s SATA Interface Drives Deliver 7200 RPM Performance

Features

• 7200 RPM Performance
• For Use In Consumer And Commercial Computers
• 6Gb/s SATA Interface
• Halogen-Free Design And Power-Efficient Operation

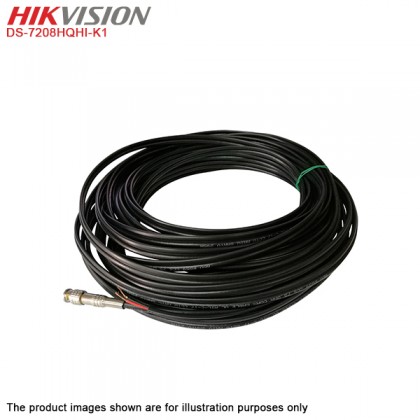

18 Meter RG59 + DC Jack Black Coaxial CCTV Camera Cable With Connectors

Support HDTVI, HDCVI, AHD And Analog Cameras
Plug And Play, Ready To Use All-In-One Siamese Cables
Transmit Video Signals And Supply DC Power For Security Camera
Weatherproof For Outdoor And Indoor Use
Compatible With All Brand HD (720P, 1080P, 3MP, 4MP Or Higher) CCTV Surveillance System

Specification

Output
DC Voltage	12V
Rated Current	3A
Current Range	0 ~ 3A
Rated Power	36W
Ripple & Noise(Max)	120mVP-p
Voltage ADJ.Range	10.2 ~ 13.8V
Voltage Tolerance	±1.0%
Line Regulation	±0.5%
Load Regulation	±0.5%
Setup, Rise Time	100ms, 30ms/230VAC 2000ms, 30ms/115VAC At Full Load
Hold Up Time(Typ)	30ms/230VAC 12ms/115VAC At Full Load
Input
Voltage Range	85 ~ 264VAC 120 ~ 373VDC
Frequency Range	47 ~ 63Hz
Efficiency (Typ)	86%
AC Current (Typ)	0.7A/115VAC 0.42A/230VAC
Inrush Current (Typ)	Cold Start 45A/230VAC
Leakage Current	<0.75mA / 240VAC
Protection
Over Load	110 ~ 150% Rated Output Power Protection Type : Hiccup Mode, Recovers Automatically After Fault Condition Is Removed
Over Voltage	13.8 ~ 16.2V Protection Type: Shut Down o/p Voltage, Re-power On To Recover
Enviroment
Working Temp	-30 ~ +70°C (Refer To "Derating Curve")
Working Humidity	20 ~ 90% RH Non-Condensing
Storage Temp,Humidity	-40 ~ +85°C, 10 ~ 95% RH Non-Condensing
Temp. Coefficient	±0.03%/°C (0 ~ 50°C)
Vibration	10 ~ 500Hz, 5G 10Min./1cycle, 60 Min
Over Voltage Category	III; According To EN61558, EN50178, EN60664-1, EN62477-1; Altitude Up To 2000 Meters
Safety 5 EMC
Safety Standards	UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2, CCC GB4943.1, BSMI CNS 14336-1, EAC TP TC 004, AS/NZS 60950.1(By CB) Approved
Withstand Voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-F/G:1.25KAC

Reviews (0)

view all

back

0 reviews

What's in the box

Hikvision DS-7208HQHI-K1 DVR

1 x Hikvision DS-7208HQHI-K1 Turbo HD 8 Channel CCTV DVR
1 x Power Adapter
1 x Mouse
1 x Software CD
1 x User Manual

Hikvision DS-2CE16COT-IRP Camera

8 x Hikvision DS-2CE16COT-IRP 1MP 720P IR Bullet Camera
8 x Screw Set
8 x User Guide

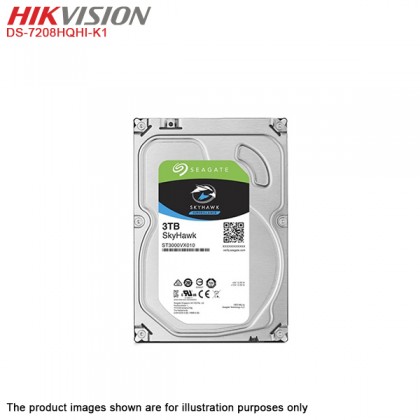

1 x Seagate SkyHawk CCTV HDD

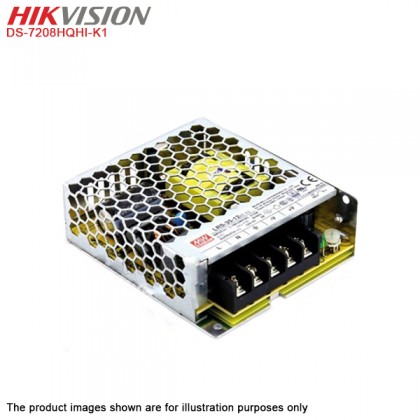

1 x Mean Well 36W 12V 3A AC DC Embedded Switch Mode Power Supply LRS-35-12
8 x 18 Meter RG59 BNC + DC Jack Black Coaxial CCTV Camera Cable with connectors

Tags: DS-2CE16COT-IRP Camera Seagate SkyHawk CCTV HDD Mean Well 36W 12V 3A AC DC Embedded Switch Mode Power Supply LRS-35-12 18 Meter RG59 + DC Jack Black Coaxial CCTV Camera Cable with connectors
