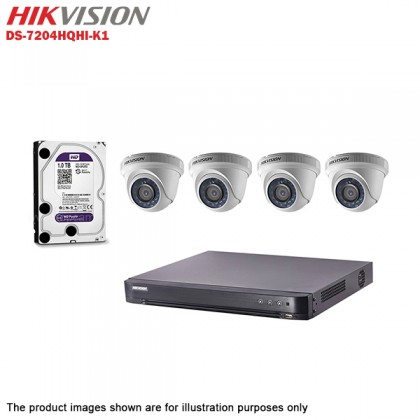

Hikvision Turbo HD 4 Channel CCTV DVR DS-7204HQHI-K1 + Hikvision 1MP 720P Indoor IR Dome Camera DS-2CE56C0T-IRP + 1TB WD PURPLE CCTV HDD
RM699.00 RM1,400.00 RM
Hikvision Turbo HD 4 Channel CCTV DVR DS-7204HQHI-K1 + Hikvision 1MP 720P Indoor IR Dome Camera DS-2CE56C0T-IRP + 1TB WD PURPLE CCTV HDD
Price RM699.00 RM1,400.00 RM
Product SKU DVR-HIK-DS-7204HQHI-K1-1MP-DOME-WD-SET
Brand Hikvision
Size (L x W x H) 100 cm x 50 cm x 70 cm
Availability Out Of Stock
Description
Highlight
  •    ↵H.265+ / H.265 / H.264+ / H.264 Encoding For The Main Stream, And H.265 / H.264 For The Sub-Stream Of Analog Cameras
  • Self-Adaptive HDTVI / HDCVI / AHD / CVBS Signal Input
  • Connectable To H.265+ / H.265 / H.264+ / H.264 IP Cameras
  • Up To 3MP Resolution For Recording
  • Long Distance Transmission Over UTP And Coaxial Cable
  • 4-ch Synchronous Playback

Hikvision Turbo HD 4 Channel CCTV DVR DS-7204HQHI-K1 + Hikvision 1MP 720P Indoor IR Dome Camera DS-2CE56C0T-IRP + 1TB WD PURPLE CCTV HDD

Specifications

Video / Audio Input
Audio Input 1-ch
Video Compression H.265+ / H.265 / H.264+ / H.264
Analog And HD-TVI Video Input 4-ch, BNC Interface (1.0Vp-p, 75Ω) Connection
Supported Camera Types Support HDTVI Input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz
Support AHD Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS Input
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G.711u
Audio Input Interface RCA (2.0 Vp-p, 1kΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input)
Video / Audio Output
CVBS Output 1-ch
BNC (1.0Vp-p, 75Ω)

Resolution:
PAL: 704x576
NTSC: 704x480
HDMI/VGA Output 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording Resolution When 1080p Lite Mode Not Enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite Mode Enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rate Main Stream:

When 1080p Lite Mode Not Enabled:
For 3MP Stream Access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
For 1080p Stream Access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
For 720p Stream Access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

When 1080p Lite Mode Enabled:
3MP@15fps
1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

Sub-Stream:
WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N)
Video Bit Rate 32 Kbps - 6 Mbps
Stream Type Video / Video & Audio
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ) (Using The Audio Input)
Audio Output 1-ch RCA (Linear, 1kΩ)
Audio Bit Rate 64 kbps
Dual Stream Support
Playback Resolution 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
Synchronous Playback 4-ch
Network Management
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up To 6TB Capacity For Each Disk
External Interface
External Interface 1; 10M / 100M Self-Adaptive Ethernet Interface
USB Interface 2 USB 2.0 Interfaces
Serial Interface 1; Standard RS-485 Serial Interface, Half-Duplex
General
Power Supply 12V DC
Consumption ≤ 6W (Without Hard Disks)
Working Temperature -10ºC To + 55ºC (14ºF To 131ºF)
Working Humidity 10% To 90%
Dimensions 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 Inch)
Weight ≤ 1.16 kg (2.6 lb)

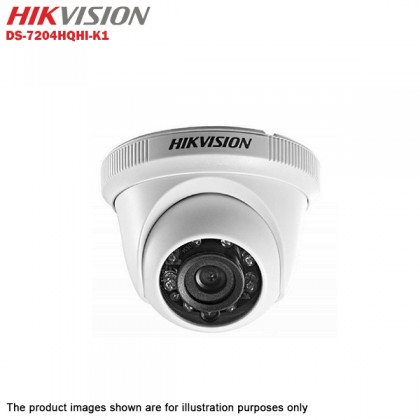

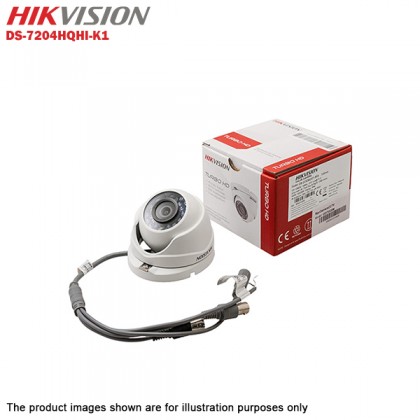

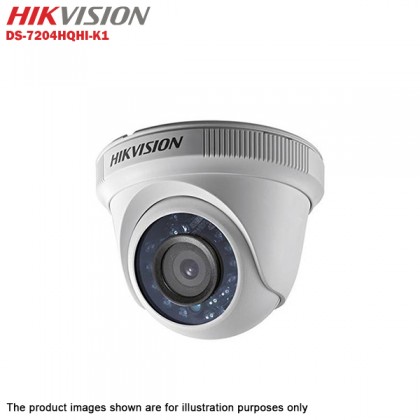

Hikvision DS-2CE56C0T-IRP Camera

Specifications

Camera
Image Sensor 1MP CMOS Image Sensor
Signal System PAL / NTSC
Effective Pixels 1296(H) x 732(V)
Shutter Time 1/25(1/30) s To 1/50,000 s
Lens Mount M12
Adjustment Range Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360°
Day & Night IR Cut Filter With Auto Switch
Video Frame Rate 720p@25fps / 720p@30fps
HD Video Output 1 Analog HD output
Synchronization Internal Synchronization
S/N Ratio More Than 62 dB
General
Operating Conditions -20°C - 45°C (-4°F - 113°F)
Humidity 90% Or Less (Non-Condensing)
Power Supply 12 VDC±15%
IR Range Up To 20m
Dimension Φ89.5 × 69.8 mm (Φ3.52” × 2.75”)
Weight 250 g

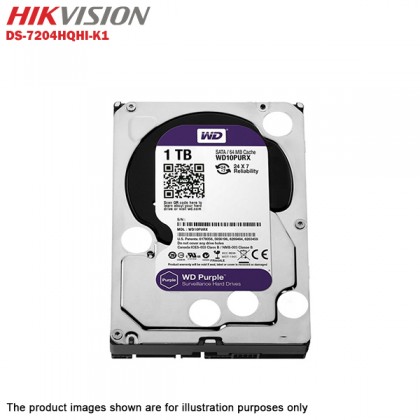

WD 1TB Purple CCTV HDD

Benefits Of All Frame Technology

  • Reduces Frame Loss
  • Improves Video Playback
  • Optimizes The HDD To Thrive In High Temperature, Always-On, Surveillance System Environments



WD Purple Surveillance Storage Is Built To Handle Up To 32 HD Cameras Per Drive And Is Designed For 24/7, Always On, High-Definition Surveillance Security Systems That Use Up To Eight Hard Drives

  • Available In Up To 8TB Capacities
  • SATA 6Gb/s Interface And 64MB Cache
  • Optimized With AllFrameTM Technology
  • Surveillance 3.5-Inch Hard Drive



Engineered For Compatibility

WD Purple Surveillance Hard Drives Are Built For Compatibility With Industry-Leading Chassis And Chip Set Manufacturers For Seamless Integration Into Your New Or Existing Video Surveillance System

Optimized Performance For Up To 32 HD Cameras

With Support For Up To 32 High-Definition Surveillance Cameras Per Hard Drive, WD Purple Gives You The Flexibility To Upgrade And Expand Your Security System In The Future

Surveillance Storage For Peace-Of-Mind

WD Purple Surveillance Hard Drives Are Designed For High Temperature, Always-On, Surveillance Security Systems To Ensure Reliability And Quality Video Play Back When You Need It Most





What In The Box

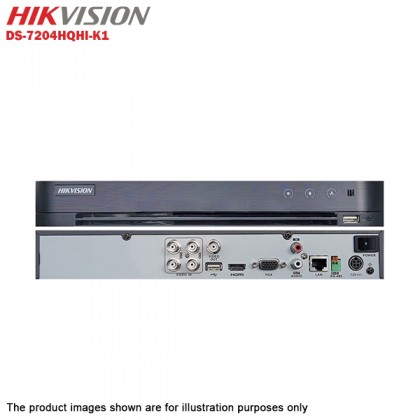

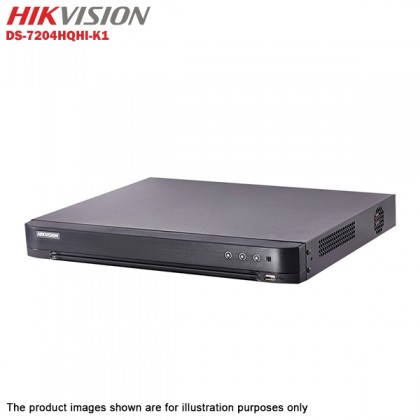

  • 1 x Hikvision DS-7204HQHI-K1 Turbo HD 4 Channel CCTV DVR
  • 1 x Power Adapter
  • 1 x Mouse
  • 1 x Software CD
  • 1 x User Manual
  • 4 x Hikvision DS-2CE56C0T
  • 1 x IRP 1MP 720P IR Dome Camera
  • 4 x Screw Set
  • 4 x User Guide
  • 1 x WD 1TB Purple CCTV HDD




Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy:Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]





Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
