| Price | RM749.00 RM1,250.00 RM |
| Product SKU | FP-FINGERTEC-F18 |
| Brand | FingerTec |
| Size (L x W x H) | 28 cm x 18 cm x 12 cm |
| Availability | 1 |
| Quantity |
|
- TFT Color Screen
- Full Access Control Features
- Slim and Elagant Design
- New Firmware
- Easy Installion and Connectivity
- New Platorm
Description

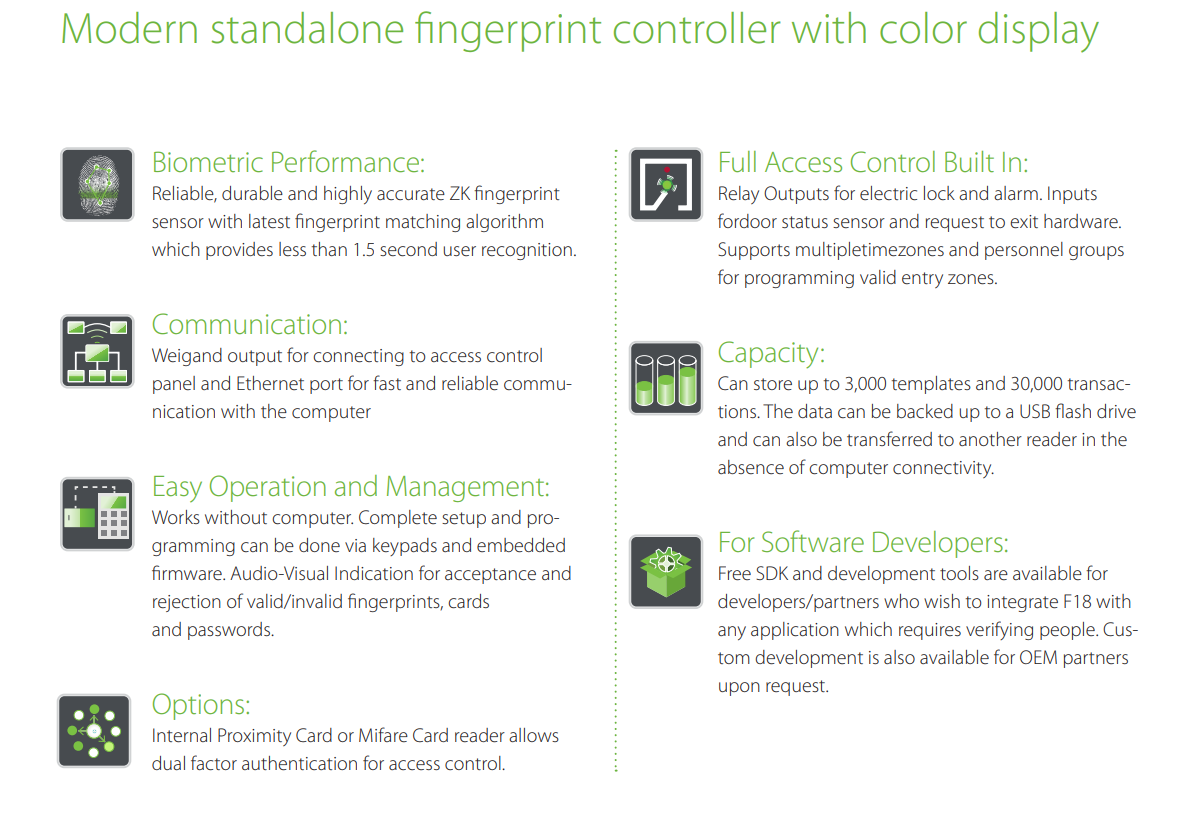

F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP and RS485 are also available which enable F18 to be applied in different network.
Features
- 2.4-inch TFT LCD Color Screen
- Audio-visual indication for acceptance and rejection of valid/invalid fingerprints
- Full access control features: web-server; anti-passback; access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell

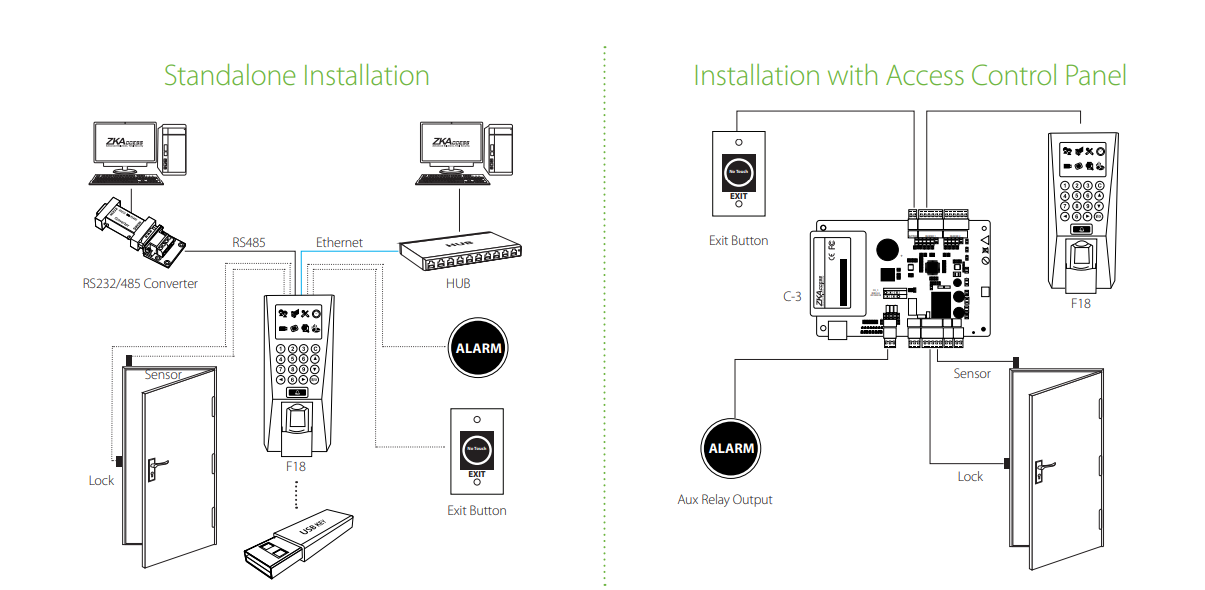

- Easy installation and connectivity: Wiegand input & output, network interface by TCP/IP or RS485
- New Platform: ZMM210 hardware with 1.2GHz CPU further speeds up processing time
- Slim and elegant design
Specifications
| Display | 2.4-inch TFT LCD Color Screen |
| Fingerprint Capacity(optional) | 3,000 |
| Card Capacity | 5,000 (Optional) ID / IC / HID Prox / HID iclass card |
| Transaction Capacity | 100,000 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger V10.0 |
| Communication | RS232/485, TCP/IP, USB-host |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Input, Output, SRB |
| Functions | DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional) |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 °C - 45 °C |
| Operating Humidity | 20% - 80% |
| SDK and Software | AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5 |
| Dimension | 80 x 183 x 42mm (W*D*H) |
What's in the box
- 1 x FingerTec ZK F18 Modern Standalone Fingerprint Reader Controller
- 1 x Installation Template
- 1 x Cable
- 1 x RJ45 Connector
- 4 x Screw and holders
- 1 x Screwdriver
- 1 x Diode(FR107)
- 1 x Black Plate
- 1 x ID card
Warranty
1 Years Warranty
Local Manufacturer Warranty
- 1 x FingerTec ZK F18 Modern Standalone Fingerprint Reader Controller
- 1 x Installation Template
- 1 x Cable
- 1 x RJ45 Connector
- 4 x Screw and holders
- 1 x Screwdriver
- 1 x Diode(FR107)
- 1 x Black Plate
- 1 x ID Card
